Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888

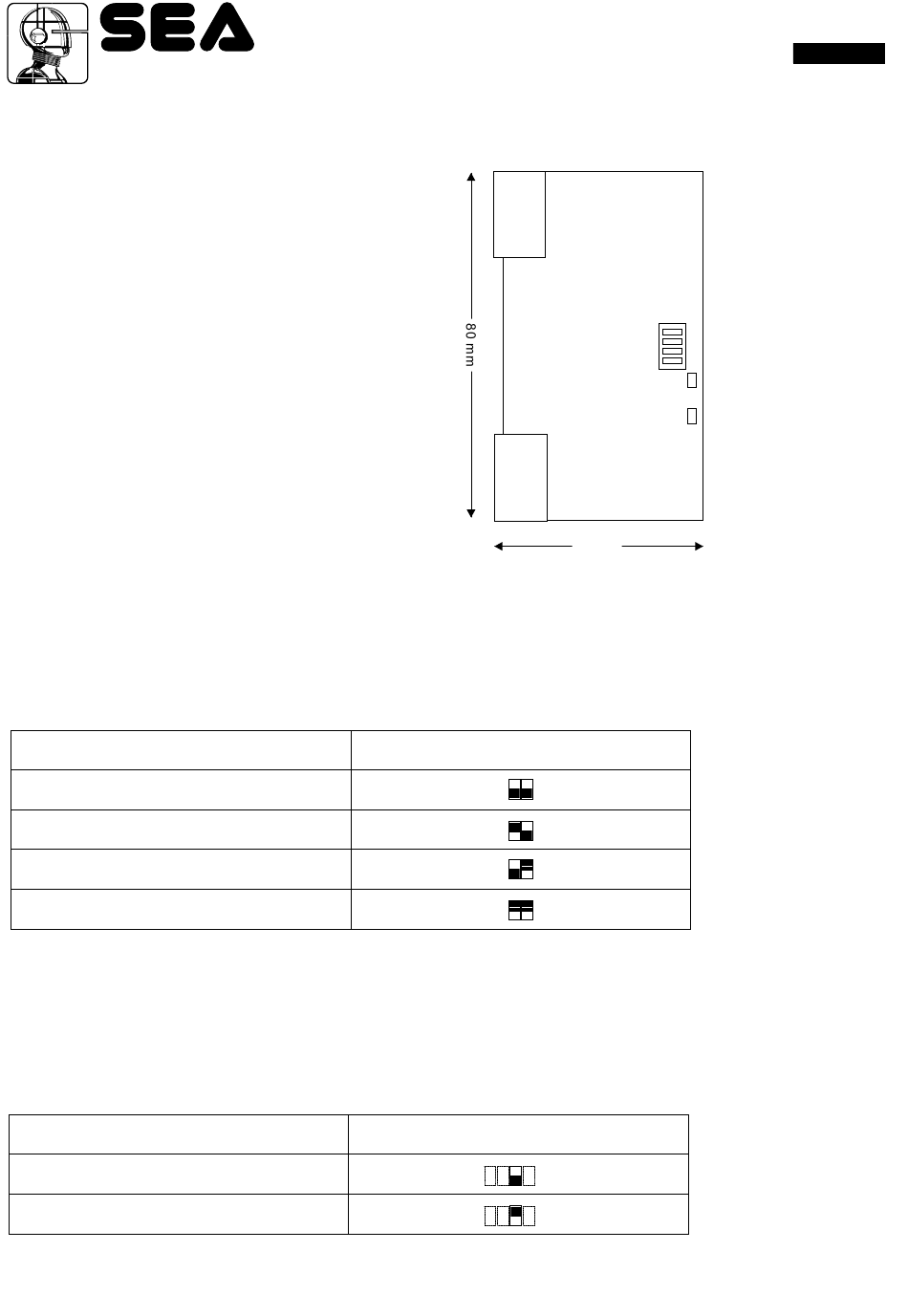

1. GENERAL
Characteristic features:
The LOOP PLUG detector is a system for inductive
detection of vehicles with the following characteristic
features:
·galvanic separation between loop and detector
electronics
·automatic system alignment immediately after
activation
· Linear adjustment of frequency deviation
· sensitivity independent from the inductivity of the loop
· loop indication occupied through LED
N.B.: The product has to be linked to the module for plug
in loops 23105013.
2. POSSIBLE ADJUSTMENTS
2.1 Sensitivity
Through DIP 1 and 2 it is possible to adjust the sensitivity level to reveal a vehicle occupying the loop. Those levels
are reported in the following scheme.
Sensitivity level
1 low
2
3
4
high
2.2 Holding time
The holding time can be adjusted through DIP switch 3 and can be limited or endless (5 min or endless).
In case of limited time, at the end of the 5 minutes a signal of free loop will be issued, followed by an automatic re-
balancing of the loop.
Note: The holding time begins as soon as the loop is occupied.
Holding time
5 minutes
endless
6
Cod. 67410730
®
LOOP PLUG 23105159
(0,27% Äf/f)
(0,09% Äf/f)
(0,03% Äf/f)
(0,01% Äf/f)
REV 01 - 03/2011
1
2
3
X1
4
5
1
2
3
X2
4
5
45 mm
Channel: DIP-switch1,2
ON
1
ON
1
ON
ON
1
1
ON
ON
1
1
Channel : DIP-switch 3
ON
ON
OFF
1
1
ON
ON
ON
1
1
LOOP PLUG
ENGLISH
4
Frequency
4
3
Holding time
2
Sensitivity
b
ON
1
1
Sensitivity
a
1
LED green
LED red
one channel
