App. A PIN ASSIGNMENTS

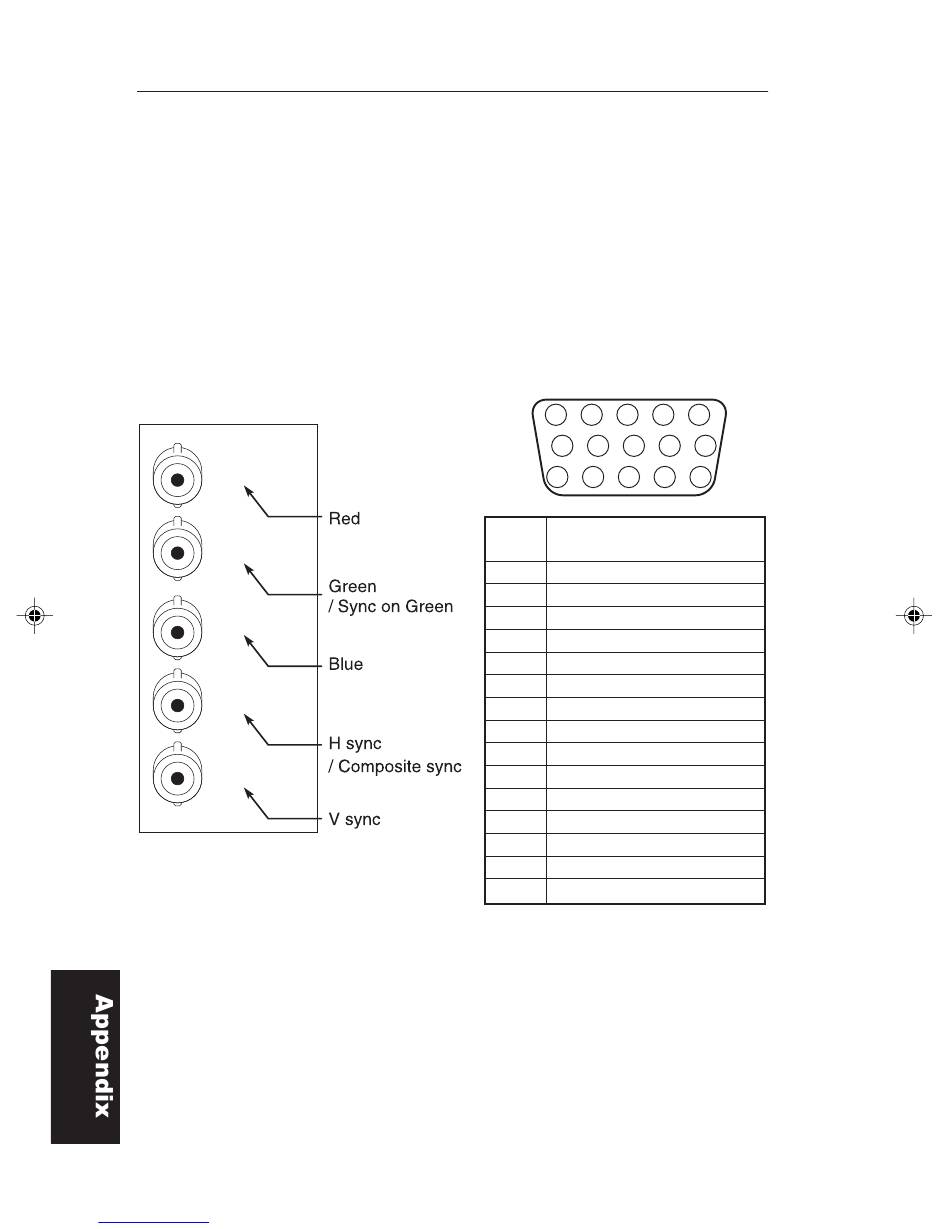

LCD 2110 SIGNAL INPUT CONNECTOR
R
G ( /SYNC)
B
HS/CS
VS
manuals search engine
App. A PIN ASSIGNMENTS
MINI D-SUB 15 PIN
5
4
3
2
10
9
8
7
15
14
13
12 11
Pin
mini D-sub 15pin
No.
(female)
1
RED
2
GREEN
3
BLUE
4
GROUND
5
GROUND
6
GROUND
7
GROUND
8
GROUND
9
+ 5 V (DDC)
10
GROUND
11
GROUND
12
SDA
13
H. SYNC. ,H / V SYNC.
14
V. SYNC.
15
SCL
