(GB) Instructions

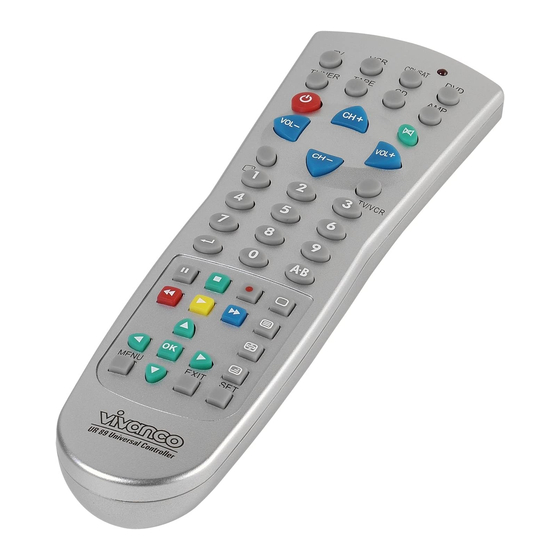

Vivanco UR 89 remote control for almost
all TV, audio, video and other infrared-
controllable equipment
Inserting the batteries
Open the battery flap on the back of the
remote control, press the tongue lightly
upwards, then insert 2 alkaline AAA batteries.
Check that the polarity markings on the
batteries and in the battery compartment are
correctly lined up (+=+), then close the flap
carefully. – Always use undamaged batteries.
Adapting to appliances
In order to control your appliances you must
adapt or set the remote control to them. There
are two ways of doing so: direct control code
entry or code search.
If your UR 89 does not understand you it
blinks twice several times and you can then
repeat the entry. Each understood entry is
confirmed by an appliance button blinking
once briefly.
Direct control code entry using the
enclosed list
Example: setting to control a Panasonic
television set:
1.
The enclosed list gives, for example, the
Panasonic Code 154.
Please make sure you have selected the
correct list for television sets (TV).
2.
To prepare code entry, press the SET
button, bottom right, keep it pressend and
then press the required appliance button, e.g.
TV, additionally until the lamp (LED) lights
constantly.
3.
Then press the number buttons (e.g. 1 5
4) in sequence.
4.
Once the numbers have been entered
the button lamp goes out and the remote
control is ready to control your appliance.
5.
Finally, test the control code setting by
trying to control (in this example) your
television set. If it does not work at all or not
correctly try a different code from the list or
the code search (see below).
To set the remote control for other
6.
appliances, proceed in the same way. Instead
of the TV appliance button, press another
button
(e.g.
VCR,
CBL/SAT(DVB,
DECODER),
DVD,
TUNER,
TAPE, CD,
AMP).
Code search
If the brand of your appliance is not in the list
or
none
of the
codes
given fits,
recommend a code search.
Manual code search
1.
Switch on the appliance to be controlled.
Program is running.
2.
To prepare code search, press the SET
button, bottom right, keep it pressend and
then press the required appliance button, e.g.
TV, additionally until the lamp (LED) lights
constantly.
Vivanco GmbH, Ewige Weide 15, D-22926 Ahrensburg, e-Mail:
UR 89 Universal Controller
3.
Then point the remote control at the
appliance to be controlled.
4.
Briefly
press
(appliance on/off) button once. The lamp
(LED) blinks. – Except when searching for a
TV code you can also briefly press the yellow
> (Play) button and use the Play function to
search. Make sure that a tape, a DVD or a CD
is inserted in the tape deck, player or
recorder.
5.
Press
the
on/off) or Play button repeatedly, approx.
every second, until the appliance, e.g. your
DVD player, reacts. - If you notice the reaction
of your appliance too late and the next code
has already been emitted you can go back by
pressing SET and then ON/OFF or Play
again. If your appliance has switched itself off
you must switch it back on again, e.g. on the
appliance or with the original remote control,
to continue searching. - When your appliance
reacts you can also try out other buttons
without interrupting the search. If some
buttons do not work properly, simply continue
searching with ON/OFF or Play.
6.
When your appliance reacts correctly,
press the appliance button, e.g. TV, and end
the search. The lamp (LED) goes out.
- The UR 89 continues with the search at the
point where you interrupted it. When the end
of the code list is reached the search stops
automatically. The remote control
quickly several times. The code last entered
remains stored. The search stops after
approx. 30 seconds of inactivity.
Automatic code search *
Your remote control finds the correct settings
almost automatically in seconds:
1.
Switch on the appliance to be controlled.
A channel number, for example, appears in
the display of your satellite receiver.
2.
To start the code search, press the SET
button, bottom right, and then additionally the
required appliance button, e.g. TV, for more
than 3 seconds until the lamp (LED) starts to
blink.
3.
Then point the remote control at the
appliance to be controlled while the remote
control emits a different ON/OFF signal every
2 seconds.
4.
When your appliance reacts, press any
button, except SET, to end the search. – If
you ended the search too late, continue to
search using the Manual Code Search (see
above).
we
5.
Finally, test the control code setting by
trying to control, for example, your DVD
appliance. If it does not work correctly, please
try the code search again. The code search
then begins with the next code in the
sequence. - Remember to switch your
appliance, e.g. DVD, back on again if you
wish to continue searching.
hotline@vivanco.de
the
ON/OFF
ON/OFF
(appliance
blinks
1
