Installing Camera - IMOU Cell Pro Kurzanleitung

Note:
- You can pair six cameras at most with one base station, and pair one camera at
a time.
- Keep the distance of the base station and the camera within 30 cm (12 inches)
during pairing.
7

Installing Camera

Note:
Make sure the mounting surface is strong enough to hold at least
three times of the device weight.
Step 1 Drill screw holes on the mounting surface as the positioning map shows,
and then put in the expansion bolts.
Step 2 Open the bracket, and then attach the bottom of the bracket to the mounting
surface with the self-tapping screws.
Step 3 Attach the other half of the bracket to the camera, then adjust the lens to the
ideal angle, and then fix the bracket.

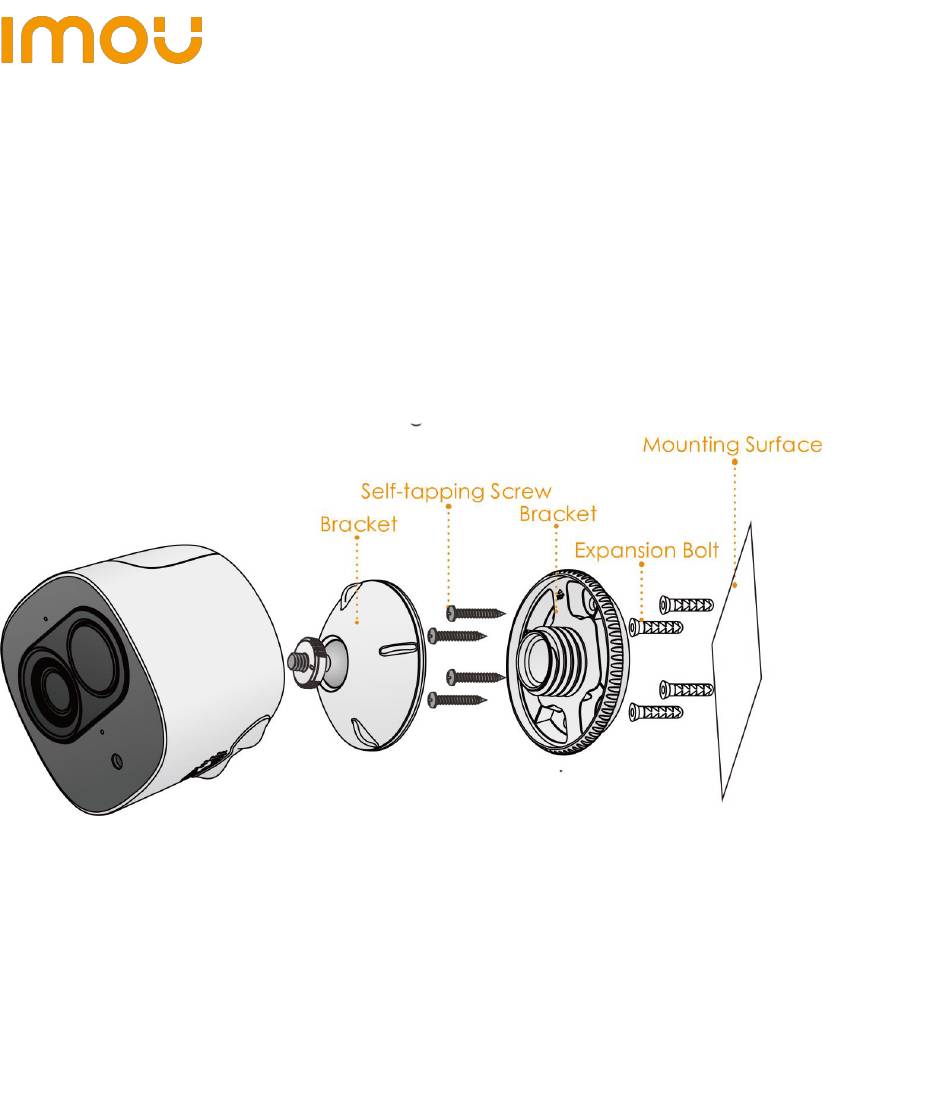

Figure 7-1
7
