Kamerainstallieren ....................8 Guía de inicio rápido ....................9 Contenido ......................9 Presentación de la cámara ................. 9 Funcionamiento con la aplicación Imou ............11 Instalación de la cámara ................... 12 Guide de démarrage rapide ..................13 Contenu de l’emballage ..................13 Présentation de la caméra ................
Seite 3
Introduzione alla telecamera................21 Funzionamento con l'app Imou ................. 22 Installazione della telecamera ................24 Guia de Início Rápido ..................... 25 Lista da embalagem ..................25 Introdução à câmara ..................25 Funcionamento com a aplicação Imou ............. 27 Instalar a câmara ....................28...

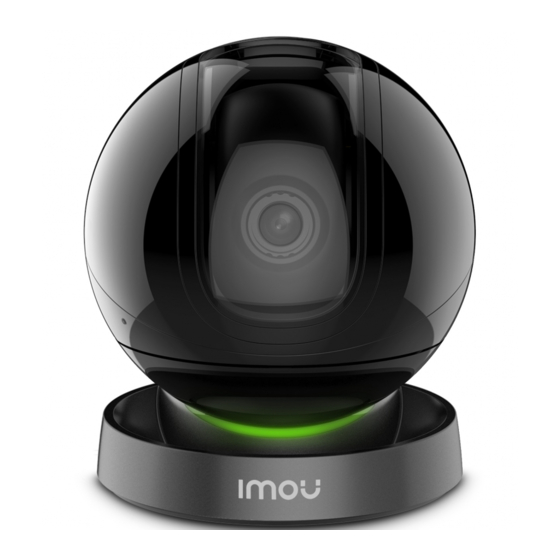

Quick Start Guide Packing List Camera *1 Power Cable *1 Power Adapter *1 QSG *1 Screw Package *1 Mounting Plate *1 Positioning Map *1 Camera Introduction Figure 2-1...
Seite 5
Figure 2-2 Note - Press the Reset/WPS button to enable WPS. - Press and hold the Reset/WPS button for 10 s to reset the camera. The pattern of the LED indicator is included in the following table. LED Indicator Status Device status ...
Operation With Imou App Step 1 Scan the following QR code or search “Imou” in Google Play or App Store to download and install Imou App. Step 2 Run Imou App, and then register an account for first use. Step 3 Connect the camera to power source with the power adapter.
Installing Camera Note: Make sure the mounting surface is strong enough to hold at least three times of the device weight. Step 1 Drill screw holes on the mounting surface as the mounting plate shows, and then put in the expansion bolts.
Kurzanleitung Lieferumfang 1 x Kamera 1 x Stromkabel 1 x Netzteil 1 x Kurzanleitung 1 x Schraubenbeutel 1 x Montageplatte 1 x Montageschablone Bedienelemente und Funktionen der Kamera Objektiv Integriertes Mikrofon LED Anzeige Abbildung 2-1...
Seite 9
Integrierter Lautsprecher microSD-Kartensteckplatz Ethernet-Port Stromanschluss WPS-/Rücksetztaste Abbildung 2-2 Hinweis - Drücken Sie die Rücksetz-/WPS-Taste, um WPS zu aktivieren. - Halten Sie die WPS-/Rücksetztaste für 10 Sekunden gedrückt, um die Kamera zurückzusetzen. Der LED-Status ist in der nachfolgenden Tabelle dargestellt. LED-Anzeigestatus Gerätestatus ...
Betrieb mit Imou-App Schritt 1: Scannen Sie den nachfolgenden QR-Code oder suchen Sie „Imou“ in Google Play oder im App Store, um die Imou-App herunterzuladen und zu installieren. Schritt 2: Starten Sie die Imou-App und erstellen Sie ein Konto für die erstmalige Nutzung.
Kamerainstallieren Hinweis: Vergewissern Sie sich, dass die Montagefläche stark genug ist, um mindestens das Dreifache des Gerätegewichts zu halten. Schritt 1: Bohren Sie Löcher entsprechend Montagefläche der Montageschablone in die Montageschablone Montagefläche und setzen Sie die Dübel Dübel ein. Montageplatte Schritt 2: Schrauben Sie die Selbstschneidende Schraube...
Guía de inicio rápido Contenido 1 Cámara 1 cable de 1 adaptador 1 guía de inicio alimentación eléctrico rápido 1 bolsa con tornillos 1 disco de montaje 1 plantilla de posicionamiento Presentación de la cámara Lente Micrófono incorporado Indicador LED Figura 2-1...
Seite 13
Altavoz integrado Ranura de la tarjeta microSD Puerto Ethernet Puerto de alimentación Botón de reinicio/WPS Figura 2-2 Nota - Pulse el botón de reinicio/WPS para habilitar WPS. - Mantenga pulsado el botón Reset/WPS durante 10 s para restablecer la cámara. El comportamiento del indicador led se incluye en la tabla siguiente.
Funcionamiento con la aplicación Imou Paso 1: Escanee el siguiente código de respuesta rápida (QR) o busque «Imou» en Google Play o en la App Store para descargar e instalar la aplicación Imou. Paso 2: Ejecute la aplicación Imou y registre una cuenta si es su primer uso.
Instalación de la cámara Nota: Asegúrese de que la superficie de montaje sea lo suficientemente sólida para soportar al menos 3 veces el peso del dispositivo. Paso 1: Taladre los agujeros para los Superficie de montaje Plantilla de tornillos en la superficie de posicionamiento montaje según lo indicado en la Perno de expansión...
Guide de démarrage rapide Contenu de l’emballage Caméra × 1 Câble Adaptateur Guide de démarrage d’alimentation × 1 d’alimentation × 1 rapide × 1 Jeu de vis × 1 Plaque de montage × 1 Patron d’installation × 1 Présentation de la caméra Objectif Microphone intégré...
Seite 17
Haut-parleur intégré Emplacement de la Port Ethernet Carte microSD Port d’alimentation Bouton de mise à zéro/WPS Figure 2-2 Remarque - appuyez sur le bouton de mise à zéro/WPS pour activer la fonction WPS. - Maintenez enfoncé le bouton de mise à zéro/WPS pendant 10 s pour réinitialiser la caméra.
Fonctionnement avec l’application Imou Étape 1 : scannez le code QR figurant sur l’unité ou recherchez « Imou » dans Google Play ou App Store, téléchargez et installez l’application. Étape 2 : exécutez l’application Imou et inscrivez-vous pour la toute première utilisation.
Installation de la caméra Remarque : Assurez-vous que la surface de montage est assez solide pour supporter le triple du poids de l’appareil. Surface de montage Étape 1 : perforez les trous de vissage Patron d’installation Cheville à expansion sur la surface de montage Plaque de montage suivant le patron d’installation et Vis autotaraudeuse...
Seite 21
Ingebouwde luidspreker Sleuf voor micro-SD-kaart Ethernetpoort Stroomaansluiting Reset-/WPS-Knop Afbeelding 2-2 Opmerking - Druk op de Reset-/WPS-knop om WPS te activeren. - Houd de toets Reset/SYNC gedurende 10 seconden ingedrukt om de camera te herstellen. Het patroon van het led-indicatielampje is in de volgende tabel opgenomen. LED-Indicator Status Status apparaat ...
Bediening met de Imou-app Stap 1: Scan de volgende QR code of zoek naar "Imou" in Google Play of de App Store om de Imou-app te downloaden en installeren. Stap 2: Open de Imou-app en registreer dan voor het eerste gebruik een account.
Het installeren van de camera Opmerking: Zorg ervoor dat het montageoppervlak sterk genoeg is om minstens drie keer het gewicht van het apparaat te kunnen dragen Stap 1: Boor schroefgaten op het montage-oppervlak volgens de Montage-oppervlak Positiebepaling kaart montageplaat en plaats dan de pluggen.
Guida introduttiva Contenuto della confezione Telecamera *1 Cavo di Adattatore di 1 Guida introduttiva alimentazione *1 alimentazione *1 1 Kit di viti Piastra di montaggio *1 Dima di posizionamento *1 Introduzione alla telecamera Obiettivo Microfono integrato Indicatore LED Figura 2-1...
Malfunzionamento del dispositivo Luce verde lampeggiante In attesa di rete Luce verde accesa Funzionamento normale Luce rossa lampeggiante Connessione di rete non riuscita Le luci verde e rossa lampeggiano Aggiornamento del firmware alternatamente Tabella 2-1 Funzionamento con l'app Imou...
Seite 26
Fase 1: Effettuare la scansione del seguente codice QR oppure ricercare "Imou" in Google Play o App Store per scaricare e installare l'app Imou. Fase 2: Eseguire l'app Imou, quindi registrare un account per il primo utilizzo. Fase 3: Collegare la telecamera alla sorgente di alimentazione mediante l'adattatore di alimentazione.
Installazione della telecamera Nota: Accertarsi che la superficie di montaggio sia abbastanza robusta da sostenere almeno tre volte il peso del dispositivo. Fase 1: Praticare dei fori per viti sulla Superficie di montaggio superficie di montaggio come Dima di posizionamento mostrato dalla piastra di Tassello ad espansione montaggio, quindi inserirvi i...
Guia de Início Rápido Lista da embalagem Câmara × 1 Cabo de Adaptador de QSG × 1 alimentação × 1 corrente × 1 Embalagem de parafusos × 1 Placa de montagem × 1 Mapa de posicionamento × 1 Introdução à câmara Objetiva Microfone incorporado Indicador LED...
Seite 29
Caixa de som embutida Ranhura para cartão Entrada Ethernet micro SD Porta de alimentação Botão Reset/WPS Figura 2-2 Nota - Prima o Botão Reset/WPS para ativar o WPS. - Prima sem soltar o botão Reset/WPS durante 10 segundos para repor as definições da câmara.
Funcionamento com a aplicação Imou Passo 1: Leia o seguinte código QR ou procure por “Imou” no Google Play ou na App Store para transferir e instalar a aplicação Imou. Passo 2: Execute a aplicação Imou e, em seguida, registe uma conta para a primeira utilização.
Instalar a câmara Nota: Certifique-se de que a superfície de montagem é suficientemente forte para suportar, pelo menos, três vezes o peso do dispositivo. Passo 1: Faça furos para os Superfície de montagem parafusos na superfície de Mapa de posicionamento montagem, tal como mostra a Parafuso de expansão placa de montagem e, em...
