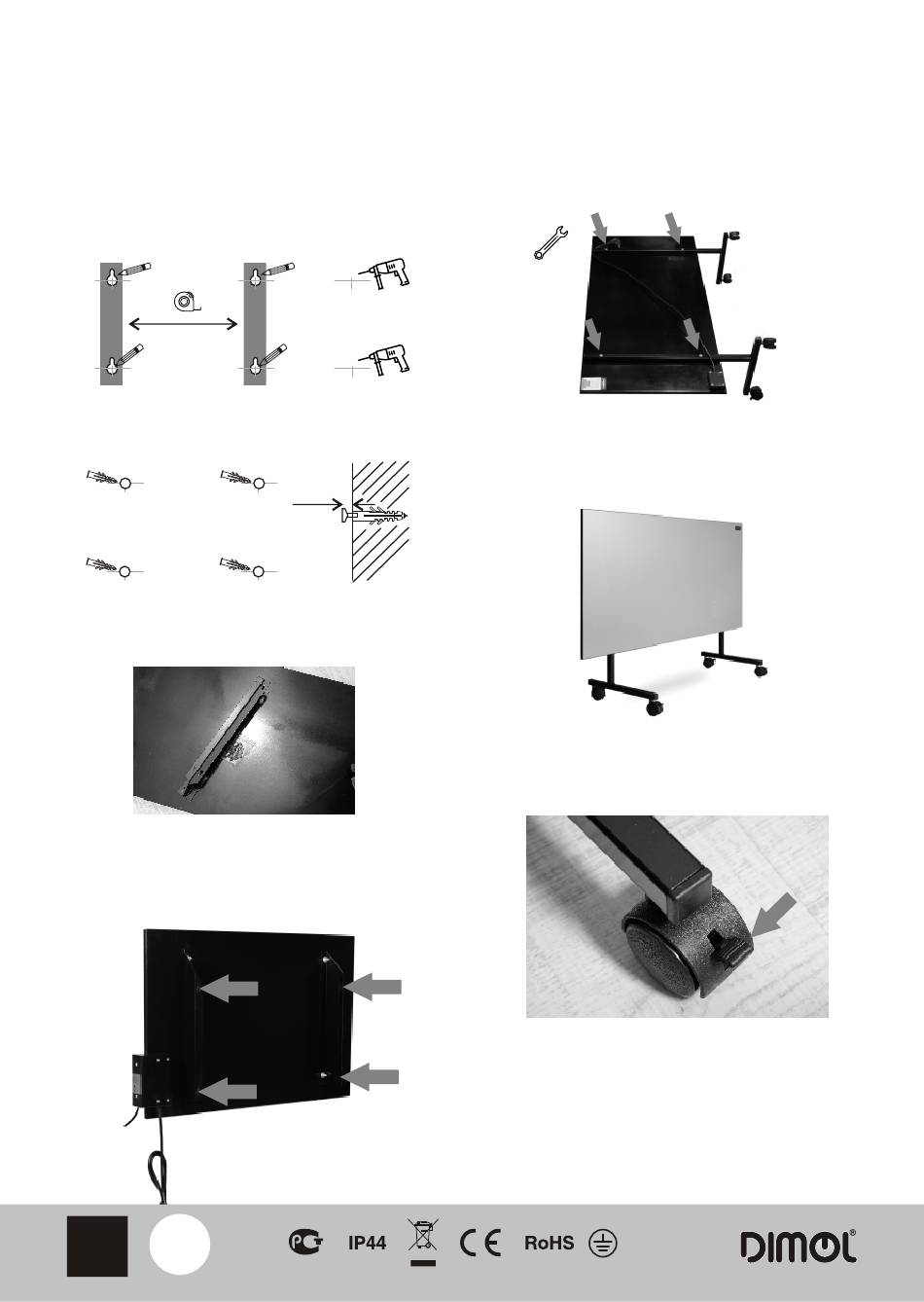

The procedure for mounting
the unit on the wall
Mark and drill in the surface to which the device
is installed, four holes for dowels, that come with the
device. Brackets for the wall installation can be used
as a template.
1
Insert the dowels in obtained holes and screw in
quick mounting screws, leaving 5 mm to the wall.
Brackets (2 pieces in a set) must be attached at
the back of the unit with screws from set.
Lift the device, carefully connect the holes in the
brackets and screws on the surface, lower device for
fixing. Conveniently execute this operation together
with assistant.
EN
19
2
4-5 ìì
The procedure for mounting
the unit on legs
Putting the device back wall upwards, reliably
attach the legs (not supplied) by special screws.
Carefully turn the device, installing it on legs.
For greater stability of the device, use the tabs on
rollers.
