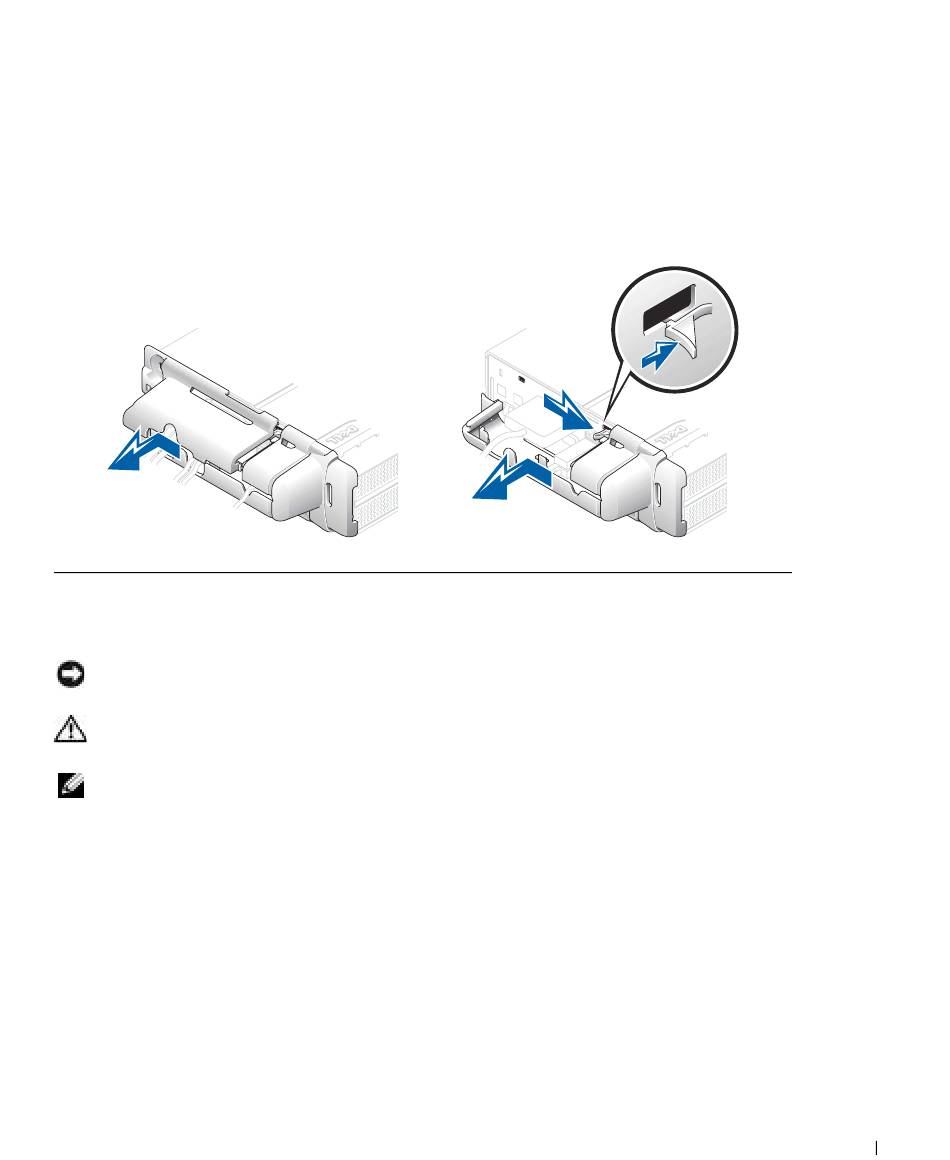

To remove the cable cover, remove the device installed in the security cable slot, if used.
Grasp the top piece of the cable cover and slide it to the left until it stops, and then lift
1
it up and away.
To remove the bottom piece of the cable cover, while pressing the lever, slide the piece
2
to the left until it stops, and then lift it up and away.

Attaching the Stand to the Mounting Plate

7
NOTICE: When installing the computer in the hanging orientation, avoid locations where it will
be bumped by a user's legs or chair.
CAUTION: Attach the mounting plate to a solid surface capable of supporting
40 lbs (18.1 kg) hanging weight.
NOTE: Before attaching the mounting plate to a surface, first orient yourself with how the
stand will attach to the mounting plate.
Using the four #6 wood screws (0.625 inch; 15.88 mm) provided, attach the mounting
1
plate to a solid surface with a minimum thickness of 1 inch (2.5 cm) (see the
illustration).
Orient the computer and stand under the mounting plate approximately 1 inch
2
(2.5 cm) from the edge of the mounting plate.
