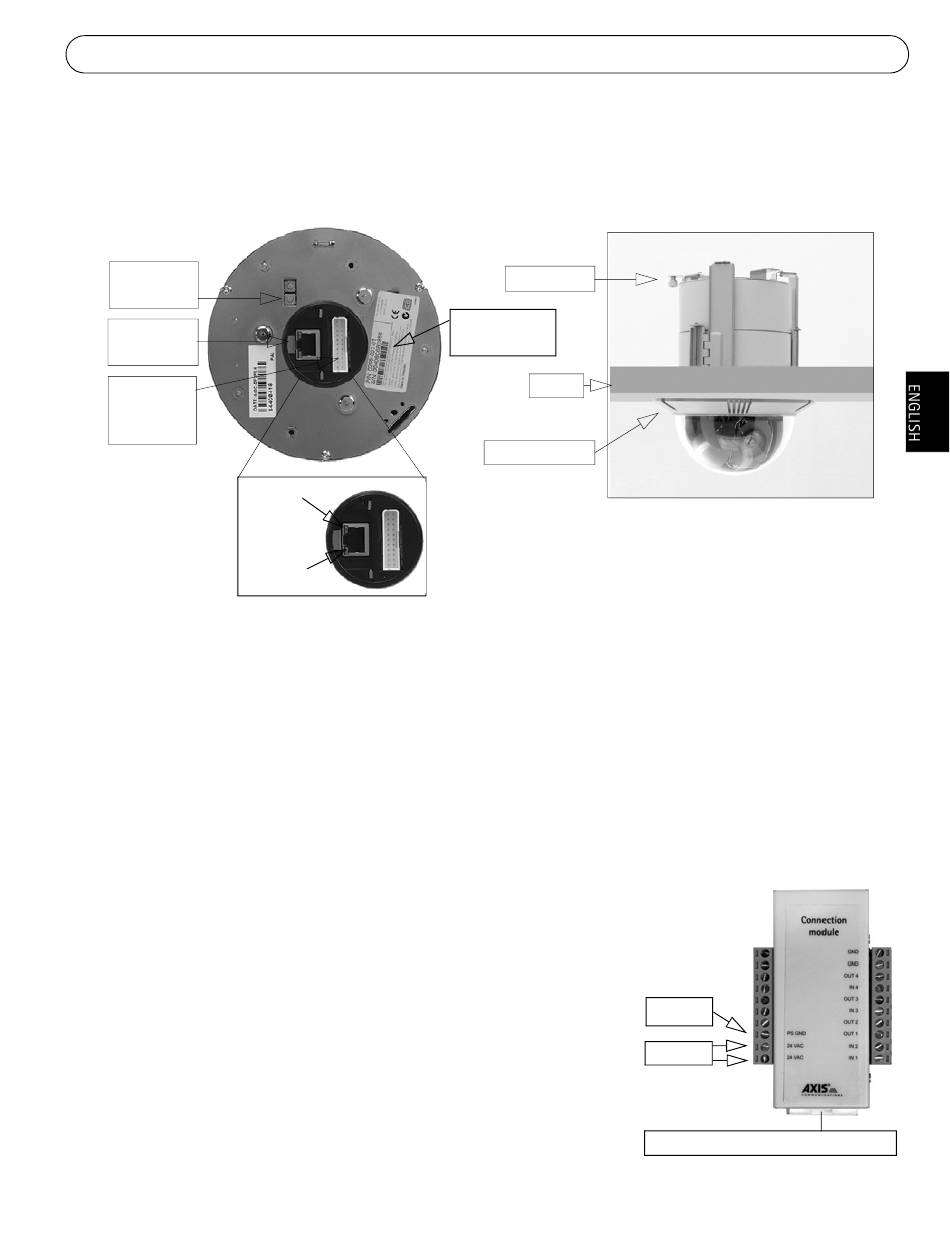

AXIS 231D+/232D+ Installation Guide
Drop Ceiling Mount
Control
button
Network
connector
Connection
module
connector
Power
Indicator
Network
Indicator
Follow these instructions to mount the dome camera:
1. Place the decoration ring on the ceiling and mark the three screw holes and the inner
circle of the decoration cover.
2. Cut the hole in the ceiling according to the markings.
3. Insert the mounting bracket in the ceiling with the holders folded in. Once in place, fold
out the holders over the inner ceiling and secure the bracket by tightening the screws.
4. Connect the connection module cable to the connection module.
5. Connect the Ethernet cable and connection module to
the AXIS 231D+/232D+.
6. Connect the power cable (24V AC) to the connection
module and check that the power and network LEDs
light up green.
7. Insert the fixing screw holder into the mounting slot.
8. Push the dome body up into the installed bracket and
twist it clockwise to lock it into the bracket.
9. Make sure the fixing screw is aligned with the bracket.
Tighten the fixing screw to secure the dome.
10.The hardware installation is now complete, proceed to
Setting the IP address, on page 7 to install the AXIS
231D+/232D+ on your network.
Rear view
Serial number
S/N
Fixing screw
Ceiling
Decoration ring
PS GND
24V AC
Connection module cable connector
Page 5
Side view
Connection module
