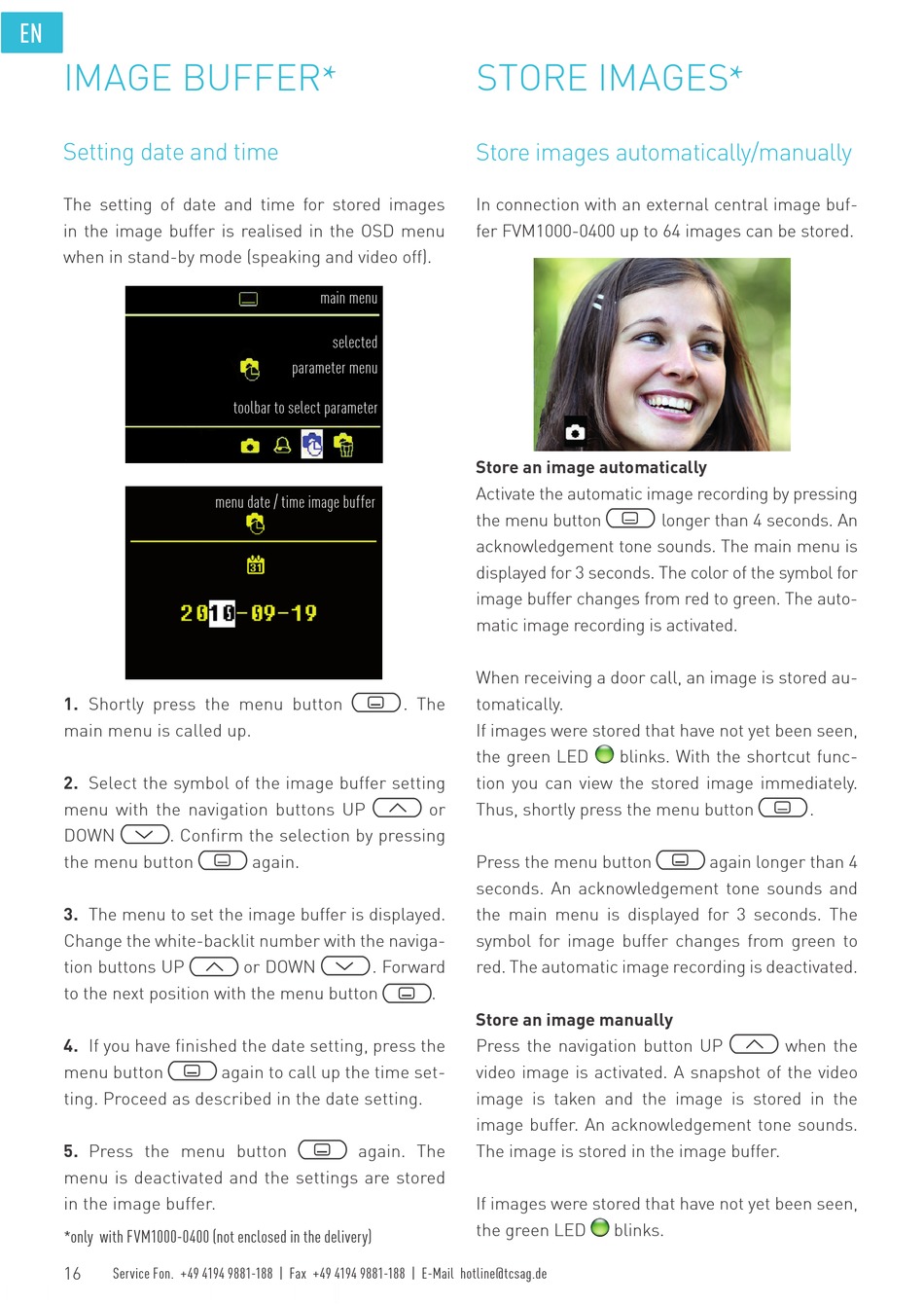

IMAGE BUFFER*

Setting date and time

The setting of date and time for stored images
in the image buffer is realised in the OSD menu
when in stand-by mode (speaking and video off).
1. Shortly press the menu button
main menu is called up.
2. Select the symbol of the image buffer setting
menu with the navigation buttons UP
DOWN . Confirm the selection by pressing
the menu button
3. The menu to set the image buffer is displayed.
Change the white-backlit number with the naviga-
tion buttons UP
to the next position with the menu button
4. If you have finished the date setting, press the
menu button
ting. Proceed as described in the date setting.
5. Press the menu button
menu is deactivated and the settings are stored
in the image buffer.
*only with FVM1000-0400 (not enclosed in the delivery)
16
Service Fon. +49 4194 9881-188 | Fax +49 4194 9881-188 | E-Mail hotline@tcsag.de
main menu
selected
parameter menu
toolbar to select parameter
menu date / time image buffer
again.
or DOWN . Forward
again to call up the time set-
again. The
STORE IMAGES*
Store images automatically/manually
In connection with an external central image buf-
fer FVM1000-0400 up to 64 images can be stored.
Store an image automatically
Activate the automatic image recording by pressing
the menu button
acknowledgement tone sounds. The main menu is
displayed for 3 seconds. The color of the symbol for
image buffer changes from red to green. The auto-
matic image recording is activated.
When receiving a door call, an image is stored au-
. The tomatically.
If images were stored that have not yet been seen,
the green LED
tion you can view the stored image immediately.
or Thus, shortly press the menu button
Press the menu button
seconds. An acknowledgement tone sounds and
the main menu is displayed for 3 seconds. The
symbol for image buffer changes from green to
red. The automatic image recording is deactivated.
.
Store an image manually
Press the navigation button UP
video image is activated. A snapshot of the video
image is taken and the image is stored in the
image buffer. An acknowledgement tone sounds.
The image is stored in the image buffer.
If images were stored that have not yet been seen,
the green LED
longer than 4 seconds. An
blinks. With the shortcut func-
again longer than 4
when the
blinks.
.
