Installation and care instructions
GB
We have put together the most important product information
to enable you to benefit from the high degree of functionality and the
first class comfort provided by BLANCO taps.
Parts list BLANCOZIROS Control HD / HD
1 1 Lever
2 2 Fixing Screw
Screw cover
3 3
Cartridge retaining ring
4 4
Cartridge
5 6
6 7 Spout
8 Stabilisation triangle
Base Ring
7 9
Fixing kit
8 10
Flexi-hose
9 11
10 12 Flow Straighter
11 13 O-rings
12 14 Set plastic rings
Seals
13 15
Spout retaining screw
14 18
15 Operating lever for remote control outlet
16 Control rod assembly
17 Stabilisation triangle

Technical data

Use
• Pressurised hot water tank and instantaneous
water heater
• Not suitable for low pressure hot water tank/hot
water tank
Operating pressure
• Min. 0.5 bar
• Max. 10.0 bar
Temperature
• Max. 70° C
Note
pressure differences between cold and warm water
connection should be less than 3 bar otherwise the
mixing ratio deviates from the lever position.
Symbols
right wrong
Installation
Illustrations
1 Tap hole: 35 mm
2 -
Flush the pipe work to remove foreign debris
7
from the system. When the tap has been
connected check for leaks,movement and flow
rate/pattern.
Recommendation: fit dirt filter
8
-
9
further illustrations on the back fold-out flap
Rinse perlator/ jet regulator
14
When tap has been fitted check:
tightness, movement, full jet of water
Care
Please note the following advice and the
illustrations on the back fold-out flap.
Illustrations
-
15
18 -
-
20
Important

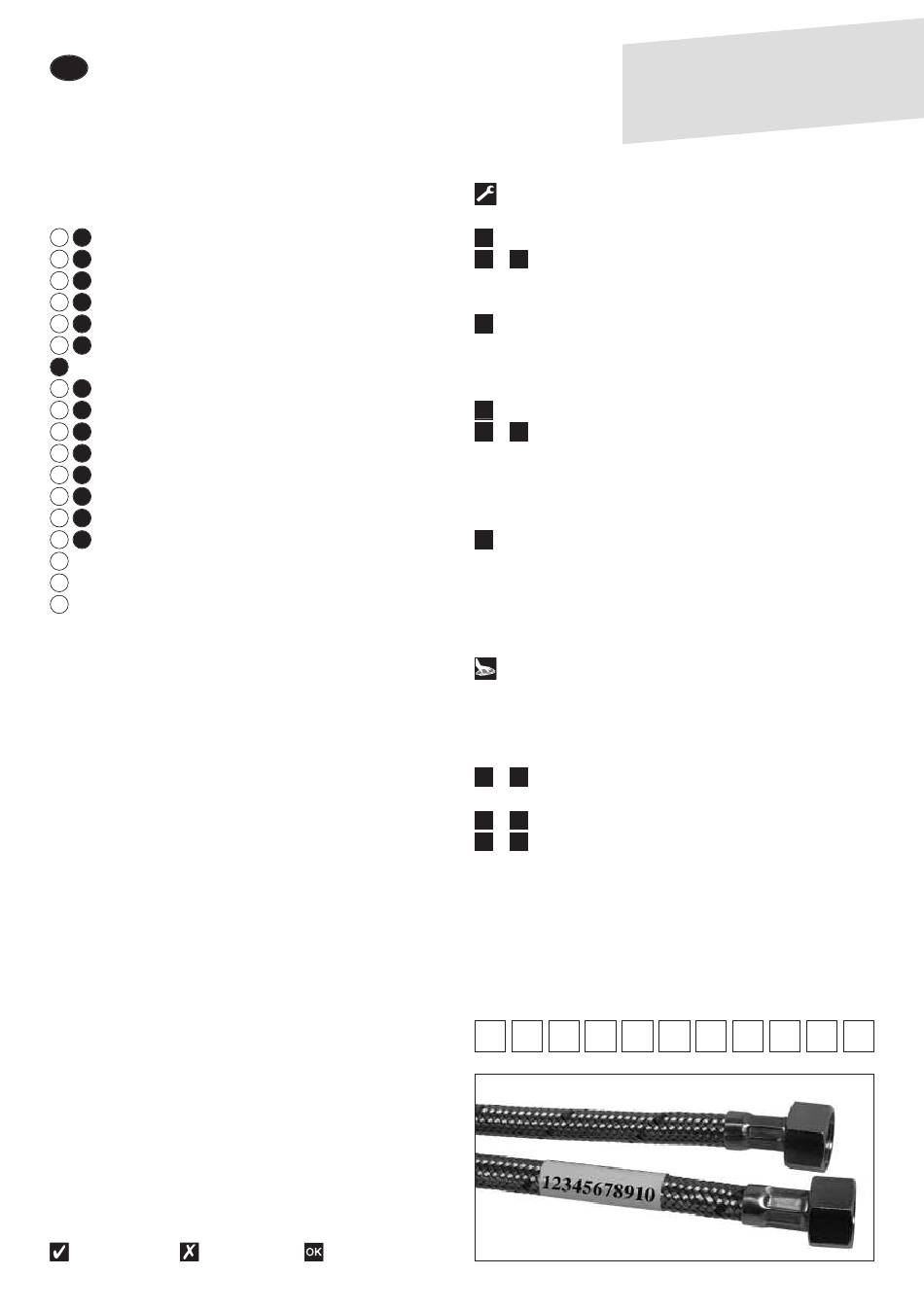

in the event of a query, please enter the 11-digit
Article Number (see wrapper on the cold water hose
of your tap) .
Example
recommended
th is B L A N C O
6 Attach tap
NOTE: don't forget the seal between tap
and supporting surface!
Connect flexi hoses
13
Use soft (microfibre) cloth and mild cleaning
17
agent
19 Take care with hard objects
Cleaning the perlator/ jet regulator with
22
vinegar
n s o n b u y in g
C o n g ra tu la ti o
e y o u
ta p – w e h o p
w it h it !
a re d e li g h te d
