Connect the red wire to the positive (+) battery terminal, and connect the
black wire to the negative (-) battery terminal.
3
If you have not already done so, connect the power cable to the device by
turning the locking ring clockwise.
Power Cable Extensions
Connecting the power cable directly to the battery is recommended. If it is
necessary to extend the cable, the appropriate gauge of wire must be used for
the length of the extension.
Distance
2 m (6.5 ft.)
4 m (13 ft.)
6 m (19 ft.)
Connecting to a Device or to the Marine Network
You can connect the radar either directly to a radar-compatible Garmin device
or to a Garmin Marine Network to share radar information with all connected
devices.
NOTE: Not all Garmin devices are compatible with the Garmin Marine
Network. See the installation instructions or owner's manual provided with your
device for more information.
1
Route the network cable to your compatible Garmin device.
2
If you have not already done so, install the locking rings and o-rings on the
end of the network cable.
3
Select an option:
• If the Garmin device is not compatible with the Garmin Marine Network,
connect the network cable to the port labeled RADAR.
• If the device is compatible with the Garmin Marine Network, connect
the network cable to the port labeled NETWORK.
Radar Operation
All functions of this radar are controlled with your Garmin chartplotter. See the
Radar section of your chartplotter's manual for operating instructions. To
download the latest manual, go to www.garmin.com/support/.
Measuring the Potential Front-of-Boat Offset
The front-of-boat offset compensates for the physical location of the radar
scanner on a boat, if the radar scanner does not align with the bow-stern axis.
1
Using a magnetic compass, take an optical bearing of a stationary target
located within viewable range.
2
Measure the target bearing on the radar.
3
If the bearing deviation is more than +/- 1°, set the front-of-boat offset.
Setting the Front-of-Boat Offset
Before you can set the front-of-boat offset, you must measure the potential
front-of-boat offset.
The front-of-boat offset setting configured for use in one radar mode is applied
to every other radar mode and to the Radar overlay.
1
From a Radar screen or the Radar overlay, select Menu > Radar Setup >
Installation > Front of Boat.
2
Select Up or Down to adjust the offset.
Specifications
Specification Measurement
Minimum safe operating distance* GMR
• 10 W/m² = 2.19 m (7.19 ft.)
GMR Fantom 24
• 10 W/m² = 2.55 m (8.37 ft.)
Compass-safe distance .25 m (10 in.)
GMR Fantom 18 weight 6.3 kg (13.8 lb.)
GMR Fantom 24 weight 7.7 kg (17 lb.)
Temperature range From -25 to 70°C (from -13 to 158°F)
4
Wire Gauge
16 AWG (1.31 mm²)
14 AWG (2.08 mm²)
12 AWG (3.31 mm²)
Fantom 18
™ ™
Specification Measurement
Case material Thermoplastic resin
Maximum antenna rotation speed 48 RPM
Input voltage From 10 to 32 Vdc, 2.5 A max.
Power consumption Standby: 3 W
Transmitting: 18.1 to 24.4 W**
Fuse 7.5 A
Power output 40 W peak
RF transmit frequency 9335-9455 MHz nominal
GMR Fantom 18 beam width 5.2 degrees
GMR Fantom 24 beam width 3.7 degrees
Maximum range 48 nm
Minimum range 6 m (20 ft.)
*When it is transmitting, the radar should be located in a position on the vessel
that is at least this far from people. (IEC 60936-1, clause 3-27.1, specifies the
maximum distances from the antenna at which radio frequency (RF) levels can
be expected.)
**Power consumption when transmitting is affected by the range setting. A
greater range setting uses more power.

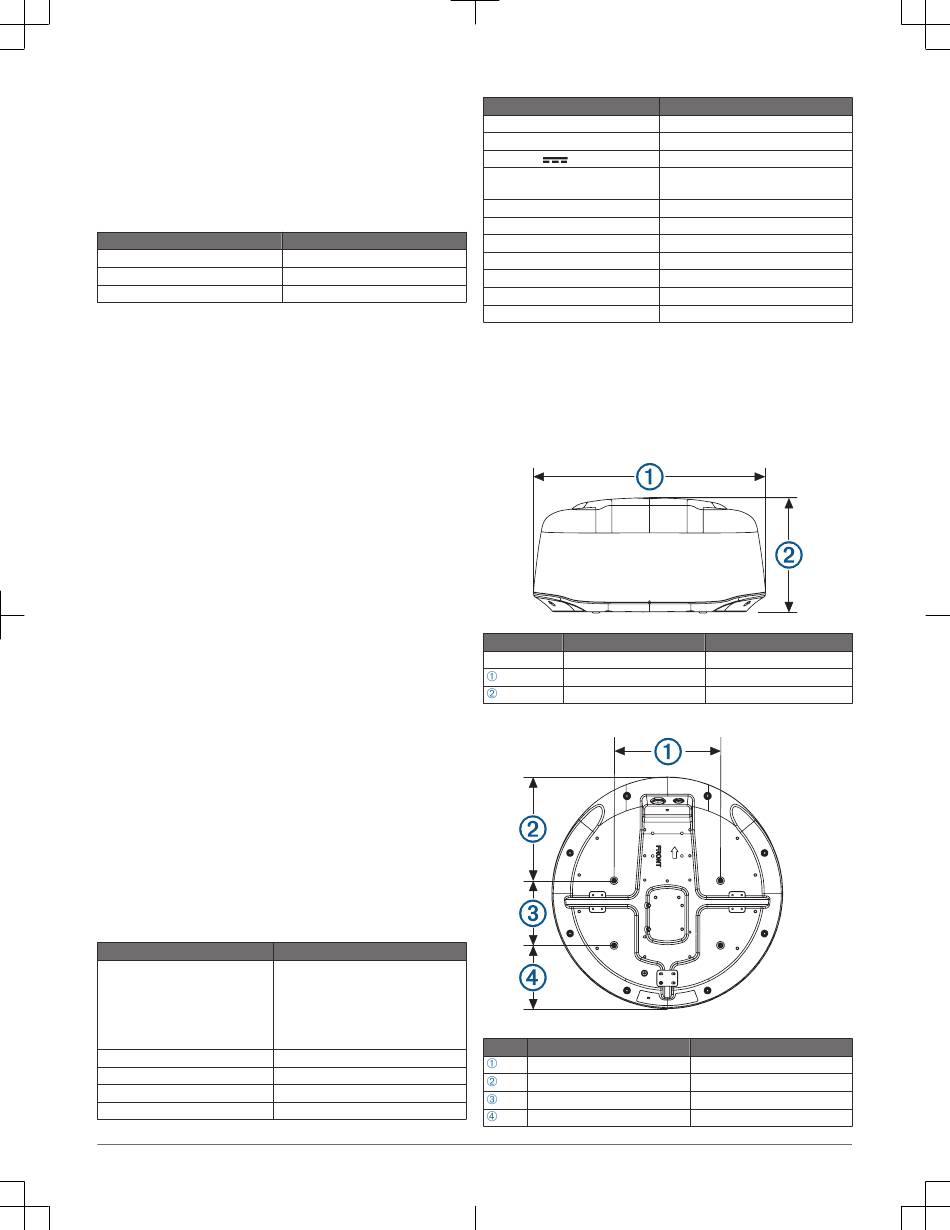

Detailed Dimensions
Item GMR Fantom 18
Length 508.2 mm (20 in.)
7
(width) 504.7 mm (19 / in.)
8
3
(height) 248.3 mm (9 / in.)
4
Item GMR Fantom 18
3
233 mm (9 / in.)
16
15
227.5 mm (8 / in.)
16
9
141.5 mm (5 / in.)
16
1
139.2 mm (5 / in.)
2
GMR Fantom 24
7
645.4 mm (25 / in.)
16
5
642.5 mm (25 / in.)
16
7
250.3 mm (9 / in.)
8
GMR Fantom 24
3
233 mm (9 / in.)
16
11
296.2 mm (9 / in.)
16
9
141.5 mm (5 / in.)
16
3
207.7 mm (8 / in.)
16
