INSTALLATION AND MAINTENANCE INSTRUCTIONS
SC-6
Six Supervised Control Module
SPECIFICATIONS
Normal Operating Voltage:
Stand-By Current:
Alarm Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
Wire Gauge:
Maximum Monitored Output Circuit
Wiring Resistance:
TABLE 1:
CURRENT RATING
3A
2A
1A
.5A
BEFORE INSTALLING
This information is included as a quick reference installation guide. Refer to
the appropriate control panel installation manual for detailed system infor-
mation. If the modules will be installed in an existing operational system,
inform the operator and local authority that the system will be temporarily
out of service. Disconnect the power to the control panel before installing the
modules. This system contains static sensitive components. Always ground
yourself with a proper wrist strap before handling any circuits so that static
charges are removed from the body. The housing cabinet should be metallic
and suitably grounded.
NOTICE: This manual should be left with the owner/user of this equipment.
GENERAL DESCRIPTION
The SC-6 Six Supervised Control Module is intended for use in an intelligent
alarm system. Each module is intended for switching applications involving
DC which require wiring supervision. A common SLC input is used for all
modules. Each module has its own address. A pair of rotary code switches is
used to set the address of the first module from 01 to 94. The remaining mod-
ules are automatically assigned to the next five higher addresses. Provisions
are included for disabling a maximum of three unused modules to release the
addresses to be used elsewhere. Each module also has panel controlled green
LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.
Each module has terminals for connection to an external supply circuit for
powering devices on its Monitored Output Circuit.
Each supply must be power limited and its voltage/current limits must be at
or below those specified in Table 1.
There is a short circuit protection monitor for each module. This is provided
to protect the external power supply against short circuit conditions on the
Monitored Output Circuit.
COMPATIBILITY REQUIREMENTS
To ensure proper operation, this module shall be connected to a listed com-
patible control panel.
The SC-6 Module shall be mounted in a suitably grounded Metallic Cabinet
for EMC compliance.
D500-68-00
15-32VDC
2.25 mA
35 mA (assumes all six relays have been switched once and all six LEDs solid on)
-10°C to 55°C
10 to 93% Non condensing
17.3cm H x 14.7cm W x 3.2cm D
Suitably grounded metallic cabinet
0.9mm2 - 3.25mm2
40 Ohms
MAXIMUM VOLTAGE
30VDC
30VDC
30VDC
30VDC
LOAD DESCRIPTION
Resistive
Resistive
Inductive (L/R=2ms)
Inductive (L/R=5ms)

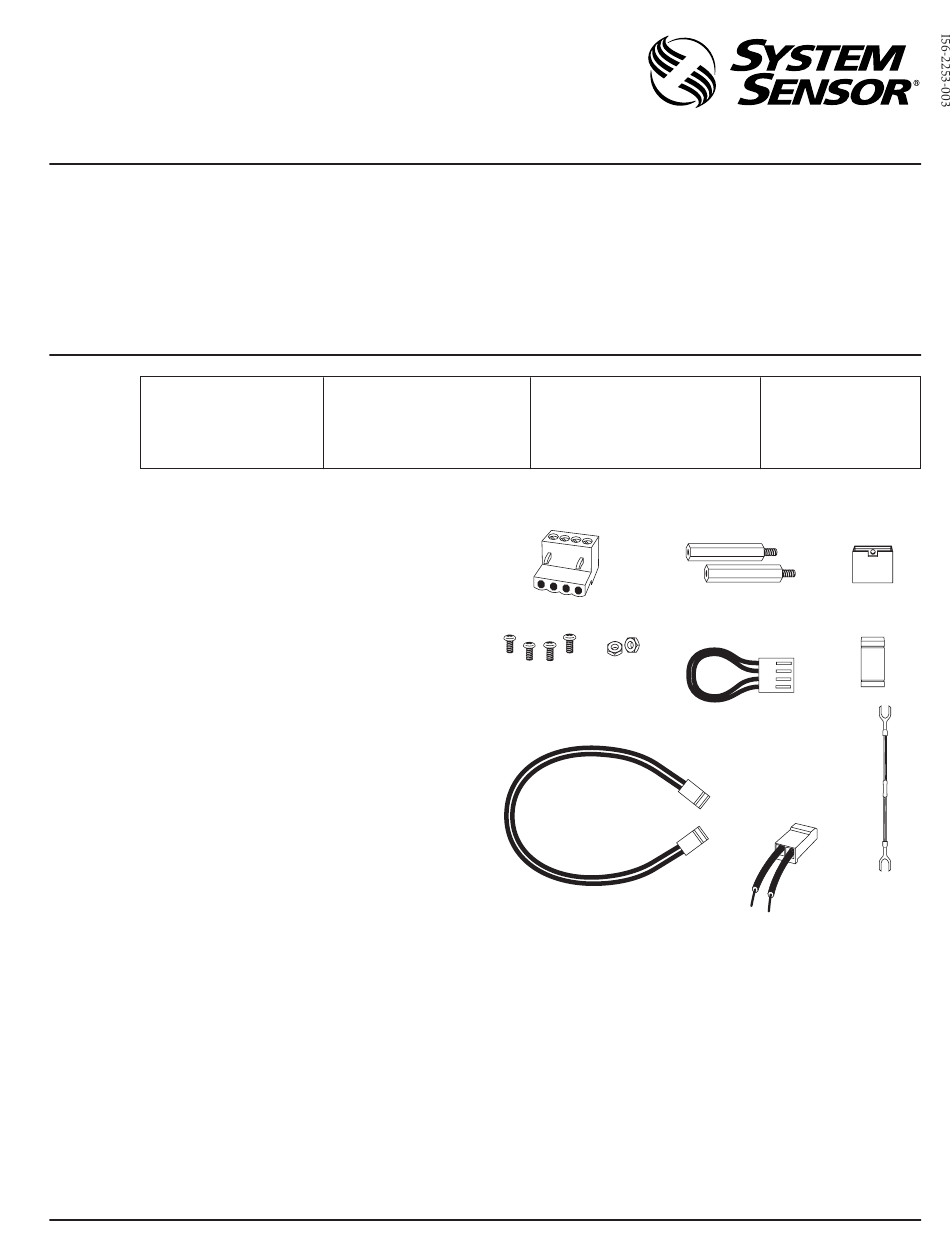

INCLUDED:
(7) 1 x 4 Terminal (2) 32mm Stand offs
Blocks
(2) Nuts
(4) Screws
(1) Long Power
Supply Jumper
Shipped on Board:
(1) Small shunt
(6) Large shunts on Enable Power Supply Monitors
(6) Large shunts on Disable Short Circuit Protection
(3) Large shunts on Sync Generator
NOTE: Three shunts on Sync Generator MUST NOT be removed.
WIRING
NOTE: All wiring must conform to applicable local codes, ordinances, and
regulations.
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams.
2. All wiring to the SC-6 is done via terminal blocks. In order to properly
make electrical connections strip approximately 5 mm of insulation from
the end of wire, sliding the bare end of the wire under the clamping plate
screw.
3. Set the address on the modules per the job drawing. Use the rotary code
switches to set the address of the first module (between 01 and 94).
1
Pittway Technologica S.p.A
Via Caboto 19/3
34147 Trieste, Italy
APPLICATION
Steady
Pulsing
Pulsing
Pulsing
(15) Large
Shunts
(5) Short Power (2) Small Shunts
Supply Jumpers
6) 47k Ohm
End of Line
Resistors
(2) EOL Relay
Connector Assembly
I56-2253-003
