Prior to use
4

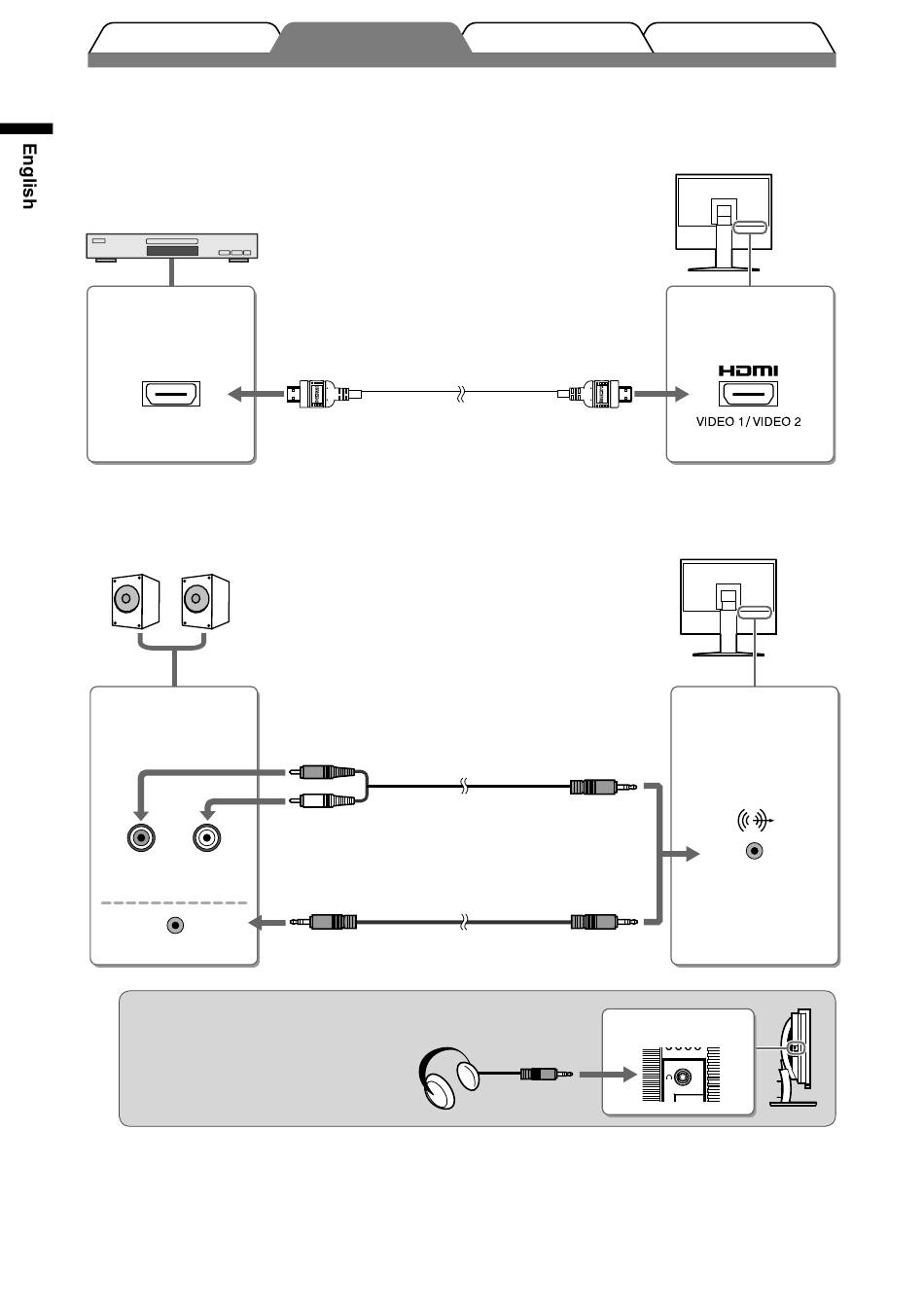

Connect AV equipment.
1. Check that the AV equipment is powered off.
2. Connect the monitor to the AV equipment with a HDMI signal cable.
Connectors on the
AV equipment
(Output)
HDMI connector
5

Connect speakers.

1. Connect the monitor to the speaker with an audio cable that matches the connectors.
Connectors on the
speakers
(Input)
R L
(Pin jack)
Stereo mini jack
NOTE
• When using headphones, connect the headphones
to the headphone jack on the monitor.
6
Plug the power cord of the monitor into a power outlet.
1. Plug the power cord into a power outlet and the Power connector on the monitor.
10
Installation
HDMI cable 00M0J261/00M0J262 (supplied) *
*
When connecting two AV equipment with
HDMI output, please purchase another
cable.
Audio cable *
Audio cable *
*
Please purchase the cable.
Setting/Adjustment
Headphone jack
Headphone
Troubleshooting
Connectors on the
monitor
HDMI connector
Connector on the
monitor
Stereo mini jack
