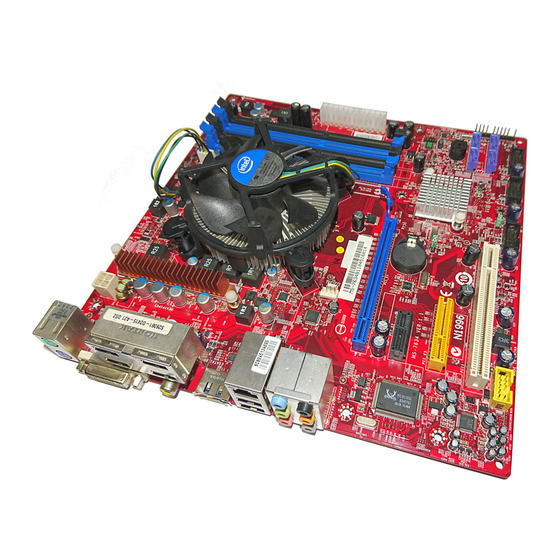

Mainboard Short Description Mainboard D2415...
Seite 2
For automatic driver updates, go to: "http://support.ts.fujitsu.com/de/support/index.html" Should you have any technical questions, please contact: • our Hotline/Service Desk (see the Service Desk list or visit: "http://ts.fujitsu.com/support/servicedesk.html") • Your sales partner • Your sales office We hope you really enjoy using your new Fujitsu system.
Seite 4
Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner. For further information see "http://ts.fujitsu.com/terms_of_use.html" Order No. Fujitsu Technology Solutions GmbH: A26361-D2415-Z220-1-8N19, edition 1...
Seite 5
6 = Data positive Port Y Power ON Power On/Off 2 = VCC AUX HD-LED 3 = Data negative Port X 8 = GND 4 = Data negative Port Y 9 = Key Data positive Port X 10 = Not connected A26361-D2415-Z240-1-8N19 Fujitsu Technology Solutions...
Seite 6
Serial ATA / ATA / RAID / eSATA-support / - / - / FireWireTM / USB 2.0 FAN controlled PSU* / CPU (CPUFAN1) / System (SYSFAN1) Recovery BIOS / Desk Update / Multi Boot / - / * not supported by standard Power Supplies Fujitsu Technology Solutions...
Seite 7
Mainboard D2415 First-time setup Deutsch English...
BIOS-Update mit einem USB-Stick ............BIOS-Update unter DOS mit startfähiger BIOS-Update-Diskette – Kurzbeschreibung ..Fujitsu Technology Solutions...
Eine Übersicht der Leistungsmerkmale finden Sie im Datenblatt. Besondere Merkmale Ihr Mainboard ist in verschiedenen Ausbaustufen erhältlich. Abhängig von der Konfiguration Ihres Mainboards besitzt oder unterstützt das Mainboard bestimmte Merkmale. In diesem Handbuch finden Sie die wichtigsten Eigenschaften dieses Mainboards beschrieben. Fujitsu Technology Solutions...
Verhalten beim Anschluss älterer USB-Geräte (Fullspeed, USB 1.1) ergeben. Das betrifft zum Beispiel ältere Digitalkameras, von denen immer nur eine (nicht zwei oder mehr gleichzeitig) betrieben werden kann. Neuere Geräte der Spezifikation USB 2.0 sind davon nicht betroffen. Fujitsu Technology Solutions...
Sockel LGA1156, max. 95W Eine aktuelle Liste der von diesem Mainboard unterstützten Prozessoren finden • Sie im Internet unter: "http://ts.fujitsu.com/mainboards". Fassen Sie auf keinen Fall die Unterseite des Prozessors an. Schon leichte Verunreinigungen wie Fett von der Haut können die Funktion des Prozessors beeinträchtigen oder den Prozessor zerstören.
Der Steckplatz für Prozessor ist zum Schutz der Federkontakte mit einer Schutzkappe abgedeckt. Im Garantiefall kann das Mainboard nur mit befestigter Schutzkappe von Fujitsu Technology Solutions zurück genommen werden! ► Entfernen Sie den Kühlkörper. ► Drücken Sie auf den Hebel und haken Sie ihn aus.
Modulgröße 1, 2 oder 4 GByte pro Modul Eine aktuelle Liste der für dieses Mainboard empfohlenen Speichermodule finden Sie im Internet unter: "http://ts.fujitsu.com/mainboards". Es muss mindestens ein Speichermodul eingebaut sein. Speichermodule mit unterschiedlicher Speicherkapazität können kombiniert werden. Es dürfen nur ungepufferte 1,5 V-Speichermodule ohne ECC verwendet werden.
BIOS Update BIOS Update Wann sollte ein BIOS-Update durchgeführt werden? Fujitsu Technology Solutions stellt neue BIOS-Versionen zur Verfügung, um die Kompatibilität zu neuen Betriebssystemen, zu neuer Software oder zu neuer Hardware zu gewährleisten. Außerdem können neue BIOS-Funktionen integriert werden. Ein BIOS-Update sollte auch immer dann durchgeführt werden, wenn ein Problem besteht, das sich durch neue Treiber oder neue Software nicht beheben lässt.
Es wird eine startfähige Update-Diskette erstellt. Lassen Sie diese Diskette im Laufwerk. ► Starten Sie den PC neu. ► Folgen Sie den Bildschirmanweisungen. Detaillierte Informationen zum BIOS-Update unter DOS finden Sie im Handbuch zum "BIOS-Setup" (CD "Drivers & Utilities"). Fujitsu Technology Solutions...
Seite 18
10 - Deutsch BIOS Update Fujitsu Technology Solutions...
Seite 19
Mainboard D2415 First-time setup Deutsch English...
Seite 21
BIOS update using a USB stick ............BIOS update under DOS with bootable BIOS update diskette – brief description ....Fujitsu Technology Solutions...
An overview of the features is provided in the data sheet. Special features Your mainboard is available in different configuration levels. Depending on the configuration, your mainboard will be equipped with or provide support for certain features. This manual describes the most important properties of this mainboard. Fujitsu Technology Solutions...
USB devices (Fullspeed, USB 1.1). This relates, for example, to older digital cameras of which only one (not two or more at the same time) can be operated at any one time. Newer devices with specification USB 2.0 are not affected by this. Fujitsu Technology Solutions...
• A list of the processors currently supported by this mainboard is available on the Internet at: "http://ts.fujitsu.com/mainboards". Never touch the underside of the processor. Even minor soiling such as grease from the skin can impair the operation of the processor and may destroy the processor.
Procedure The processor slot is covered with a protective cap to protect the spring contacts. In the event of a return for warranty, the mainboard will only be accepted by Fujitsu Technology Solutions with the protective cap firmly attached. ► Remove the heat sink.
1, 2 or 4 GByte for one module A current list of the memory modules recommended for this mainboard is available on the Internet at: "http://ts.fujitsu.com/mainboards". At least one memory module must be installed. Memory modules with different memory capacities can be combined.
BIOS Update When should a BIOS update be performed? Fujitsu Technology Solutions makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can be integrated. A BIOS update should also always be performed if there is a problem that cannot be solved using new drivers or new software.
