operaTinG inSTrUcTionS
1. Before turning on, please connect the system properly as shown. The Techconnect
Amp is not designed to drive a 4Ω load (i.e. 2 speakers from each output), so we
recommend only using one pair of low-impedance speakers. The speaker cable
must be unshielded with a gauge of no less than 0.75mm. THE WARRANTY WILL
BE VOID IF YOU USE UNSUITABLE SHIELDED CABLE. THIS IS A LOW-IMPEDANCE
AMPLIFIER. DO NOT ATTEMPT TO CONNECT 100V LINE SPEAKERS (Normally
any speakers with "t" in the part code)
2. Set the master volume to minimum, set the input selector to the required input, then
turn the unit on and adjust to suit.
4

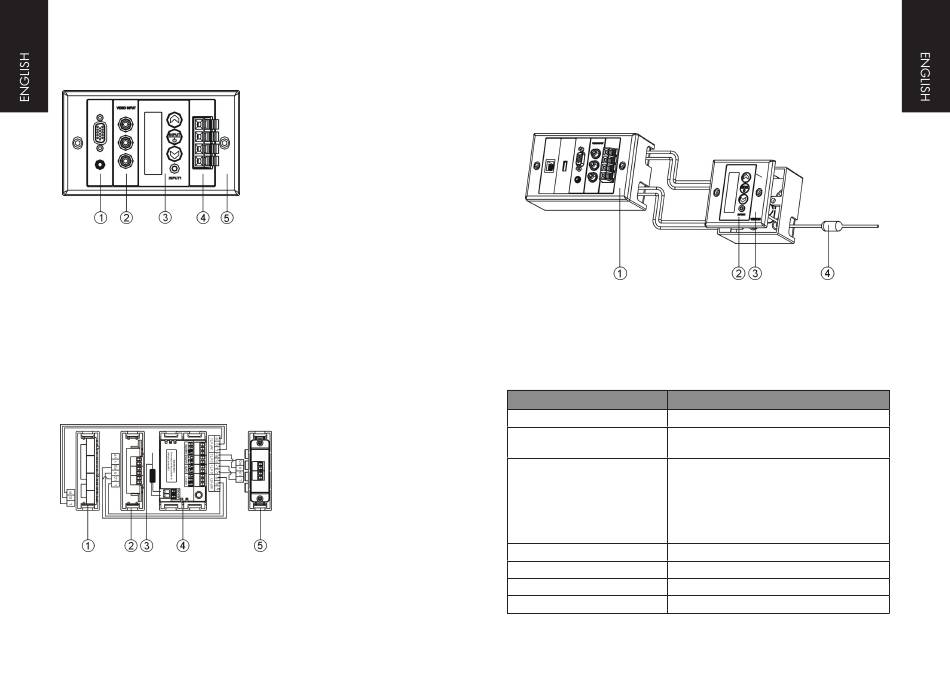

1. VGAF3.5MM module
2. 3-Phono module
3. TC AMP2 module
4. Bare-wire speaker terminals
5. UK double gang surround
1. VGAF3.5MM module
2. 3-Phone module
3. DC Power
4. TC AMP2 module
5. Bare-wire speaker terminals

TroUBleShooTinG

If your system is not operating properly, please refer to the following information. If the
problem persists, disconnect from power and contact your AV reseller immediately.
Problem Correction
No sound Turn unit off and check connections
Check output level from source e.g laptop or
mp3 player output volume
The amplifier chip has temperature and
overload protection. This means if the chip
temperature is too extreme (outside -40ºC
-50ºC) or the chip is overloaded, the chip will
temporarily mute itself. When normal conditions
return, it will resume working.
No green power light Check power connection
Distortion Volume is too high
Sound only coming out one side Turn off and check input connections
Adjust balance control
Alternative Configuration
1. Techconnect
2. TC AMP2 module
3. UK Single gang Surround
4. Power cable
5
