Check to make sure that all the electrical connections have been made properly before you adjust the
limiting switches.

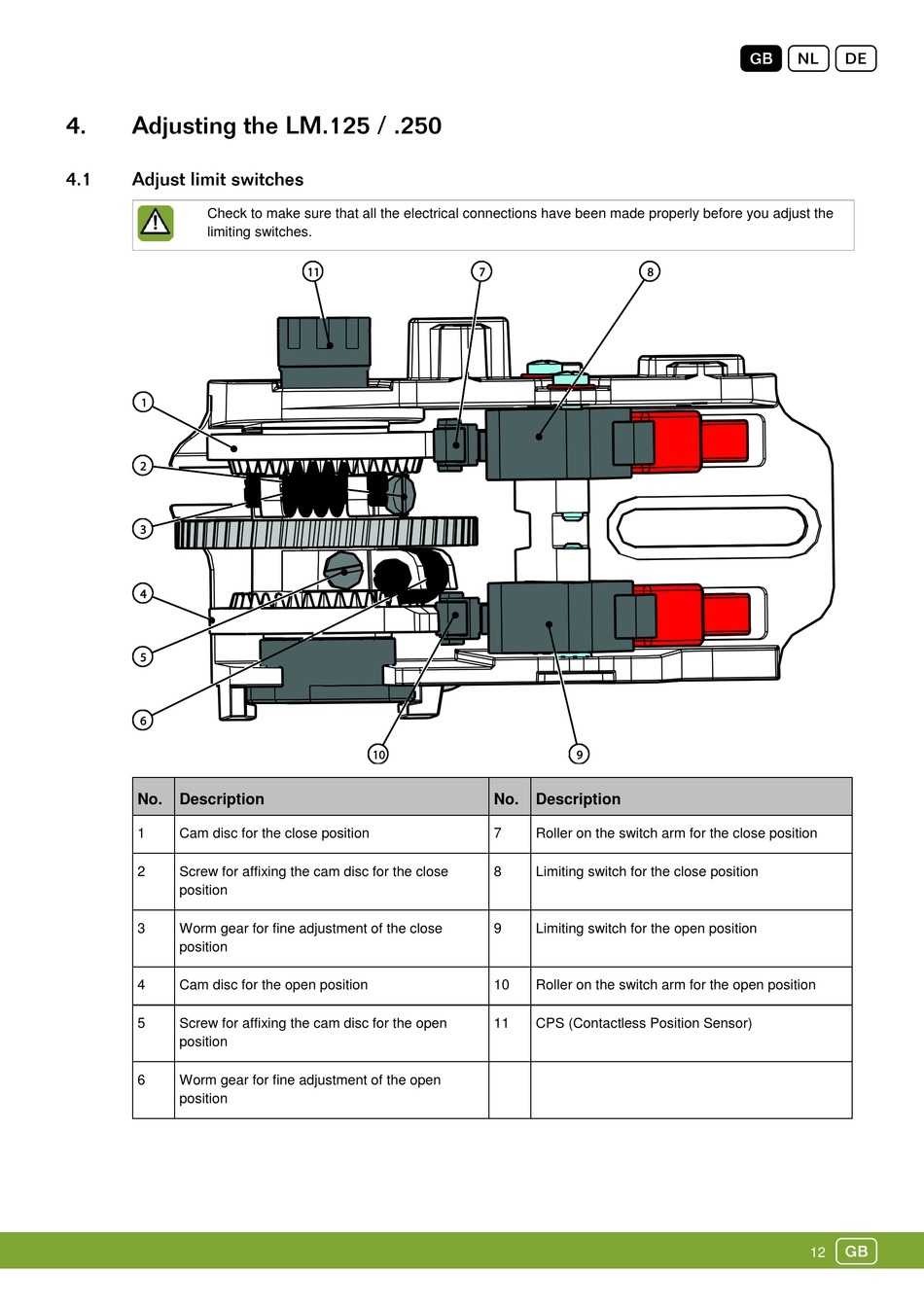

No. Description
1 Cam disc for the close position
2 Screw for affixing the cam disc for the close
position
3 Worm gear for fine adjustment of the close
position
4 Cam disc for the open position
5 Screw for affixing the cam disc for the open
position
6 Worm gear for fine adjustment of the open
position
No. Description
7 Roller on the switch arm for the close position
8 Limiting switch for the close position
9 Limiting switch for the open position
10 Roller on the switch arm for the open position
11 CPS (Contactless Position Sensor)
Gnd
g
12
