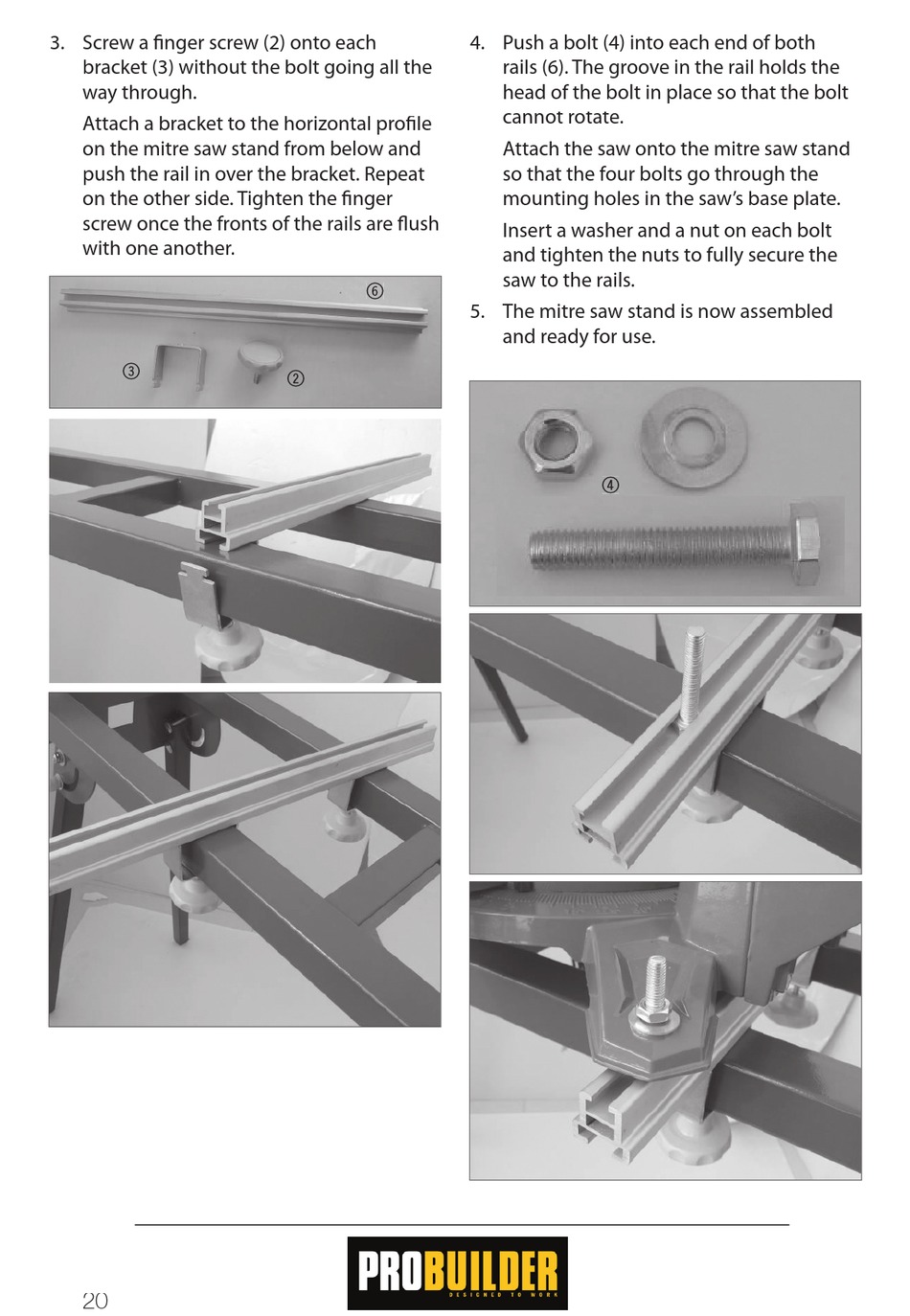

3. Screw a � nger screw (2) onto each
bracket (3) without the bolt going all the
way through.
Attach a bracket to the horizontal pro� le
on the mitre saw stand from below and
push the rail in over the bracket. Repeat
on the other side. Tighten the � nger
screw once the fronts of the rails are � ush
with one another.
3
20
6
2
4. Push a bolt (4) into each end of both
rails (6). The groove in the rail holds the
head of the bolt in place so that the bolt
cannot rotate.
Attach the saw onto the mitre saw stand
so that the four bolts go through the
mounting holes in the saw's base plate.
Insert a washer and a nut on each bolt
and tighten the nuts to fully secure the
saw to the rails.
5. The mitre saw stand is now assembled
and ready for use.
4
