During warranty period, assistance for replacement or exchange of defective components is available
at the place of purchase with receipt or valid proof of purchase. The warranty does not cover repair or
exchange of product resulting from misuse, accident, modification, unsuitable physical or operating
environment, improper maintenance, or failure caused by non-SilverStone product. The warranty is
voided by removal or alteration of product or parts identification labels.
Warranty period is region specific, please contact your reseller or SilverStone authorized distributor for
more information.
This instruction will help you make the most out of your product. Please read through it before installation.
Also, please keep your product receipt and this instruction in safe place for future reference.
We, SilverStone Technology, hope you will enjoy your product.
If you have any comments or suggestions, please e-mail to
Thank you for choosing and supporting our product.
Issue date: April, 2012
support@silverstonetek.com
NO: G11215740
Specifications
Material
High-strength plastic and meshed front panel
Model
SST-RL02B, SST-RL02B-W
SST-RL02B-USB3.0, SST-RL02B-W-USB3.0
Motherboard
ATX, Micro ATX
Drive Bay
Exposed
Internal
Cooling System
Front
Rear
Top
Bottom
Expansion Slot
7
Front I/O Port
USB 2.0 x 2 (SST-RL02B, SST-RL02B-W)
USB 3.0 x 2 (SST-RL02B-USB3.0, SST-RL02B-W-USB3.0)
Audio x 1, MIC x 1
Power Supply
1 x optional standard PS2 (ATX)
Expansion Card
Compatible with expansion cards up to 11"
Limitation of CPU cooler
160mm
Dimension
190mm (W) x 443mm (H) x 485mm (D)

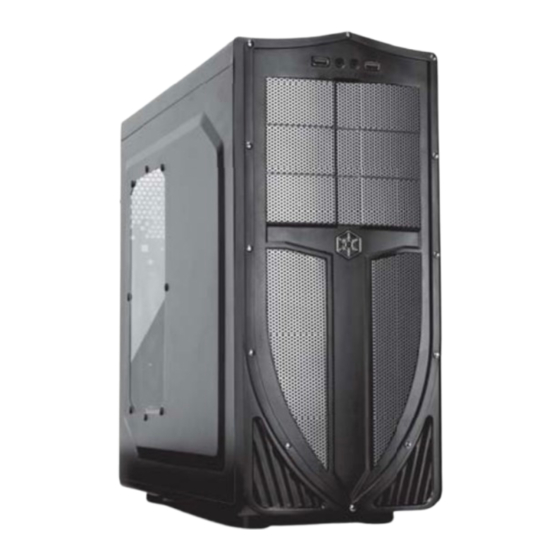

RL02
REDLINE SERIES
Special Features
Fantastic styling details with glowing button and red LED fan
Positive pressure design for effective dust reduction
Removable magnetic dust filter for top vents
Smart backside cable routing design
Motherboard back plate opening for quick CPU cooler assembly
Support easy access drive bays with tool-less design
5.25" x 3
3.5" x 7, 2.5" x 1
2 x 120mm fan slots (1 x 120mm red LED intake fan included)
1 x 120mm fan slots
2 x 120mm or 2 x 140mm fan slots
1 x 120mm fan slot
