dirna Bergstrom bycool COMPACT 1.4 SCANIA Montageanweisungen Seite 18

COMPACT 1.4
EN

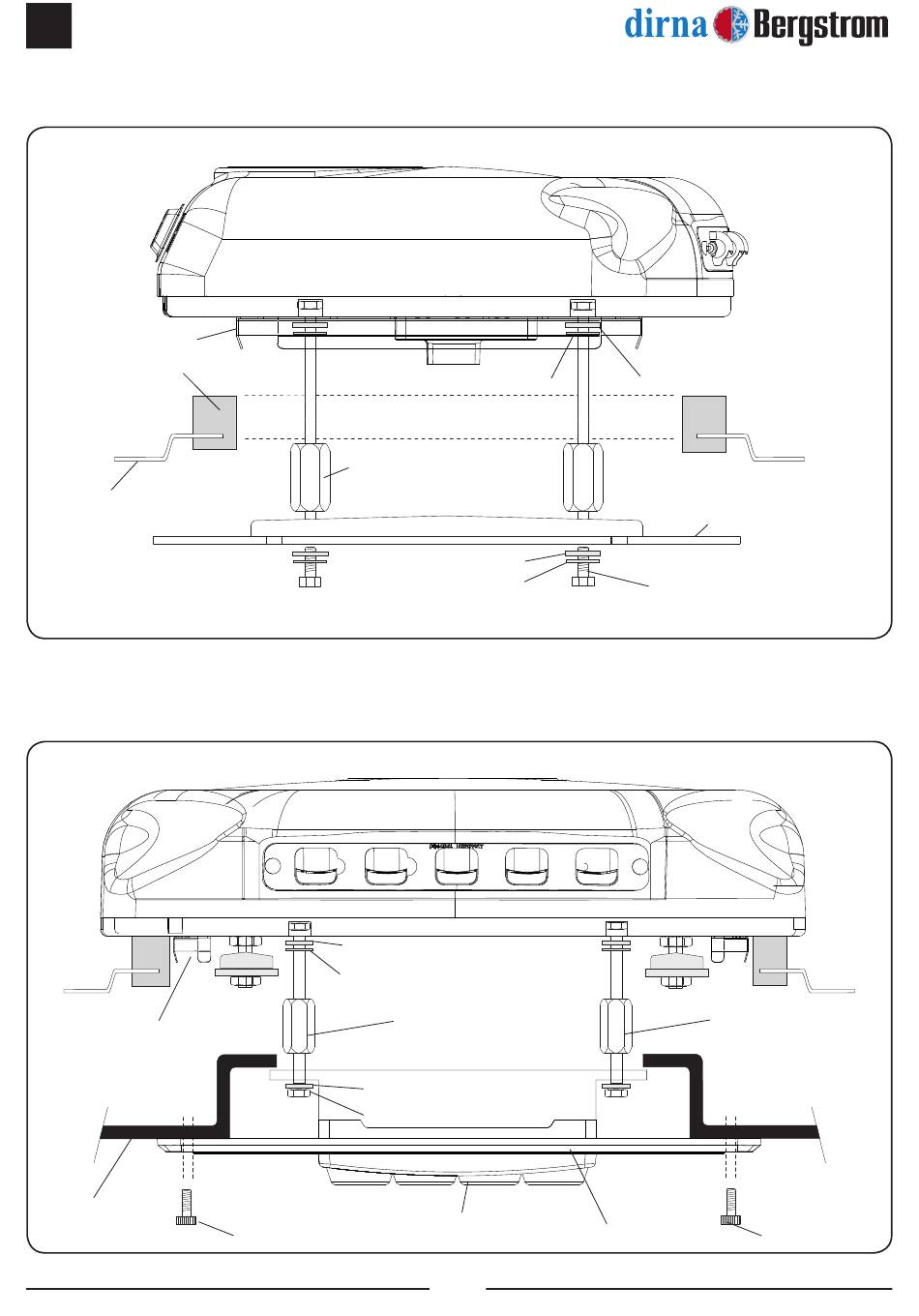

Exploded view to the fixing of the brackets
Centring device
Original edging
Cab roof
Exploded view to the fixing of the consoles
Centring device
Upholstery
Flat washer Ø 8 wide-flange
Hexagonal M-H
Flat washer Ø 8
Pressure washer Ø 8
Rubber washer Ø 6
Flat washer Ø 6 wide-flange
Hexagonal M-M
Flat washer Ø 6
M6 Nut
Internal air distribution
6/100x15 screw
panel
Console
18
Rubber washer Ø 7
Fixing support
M8/125 bolt
Hexagonal M-M
6/100x15 screw
®
