CONNECTION

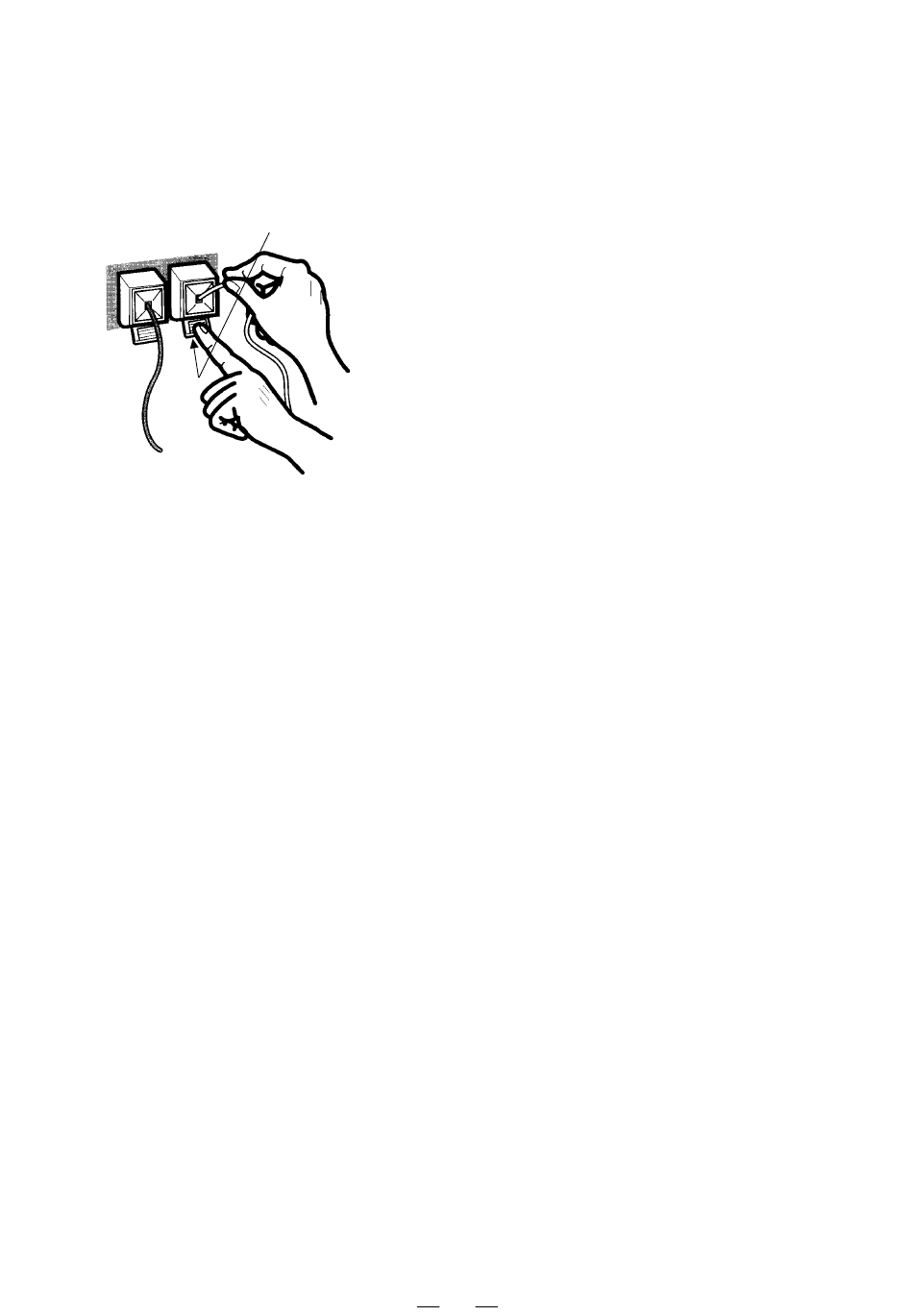

• Connect the LEFT speaker terminals of the amplifier to the
LEFT terminals of the speaker and RIGHT to RIGHT using
the speaker cords as shown in the figure making sure polarity
is correct; (+) to (+) and (–) to (–).
• Turn off power to the whole system before connecting the
speakers to the amplifier.
• The nominal impedance of the SP-T325 is 6 ohms. Select for
use an amplifier to which a speaker system with the load im-
pedance of 6 ohms can be connected.
• The maximum power handling capacity of the SP-T325 is 120
watts. Excessive input will result in abnormal noise and pos-
sible damage. In cases where the signals described below
are applied to the speakers, even if the signals are below the
maximum allowable input, they may cause an overload and
burn the wiring of the speakers. Be sure to lower the amplifier
volume beforehand.
1) Noise during FM tuning.
2) High level signals containing high frequency components
produced by a tape deck in the fast forward mode.
3) Click noise produced when turning power of other compo-
nents on and off.
4) Click noise produced when connecting or disconnecting
cords with the power on.
5) Click noise produced when the cartridge is replaced with
the power on.
6) Click noise produced when operating amplifier switches.
7) Continuous high frequency oscillation or high pitch electroni-
cally produced musical instrument sound.
8) Howling when using a microphones.
Protection Circuit
This system is equipped with a protection circuit so as to pre-
vent any accident such as burnout and/or disconnection due to
overcurrent as mentioned above.
(Note) Should any overcurrent enter into the system, the pro-
tection circuit works, producing lower sound volume. This is
because the protection circuit actually works to ensure safety.
Accordingly, this is not a failure. Manipulation or adjustment
of the sound volume will bring the speaker system back to a
normal condition.
SPECIFICATIONS
Type
Speakers
Woofer
Tweeter
Power Handling Capacity : 120 watts
Impedance
Frequency Range
Sound Pressure Level
Dimensions (W x H x D)
Mass
Design and specifications subject to change without notice.
3
: 2-way, 2-speaker, 1-passive
radiator type
(Magnetically-shielded type)
: 12 cm (4-3/4") cone x 1
: 2.5 cm (1") dome x 1
: 6 ohms
: 80 Hz-20,000 Hz
: 87 dB/w·m
: 294 x640 x 325 mm
(11-5/8" x 25-1/4" x 12-13/16")
: 4.9kg (10.8 lbs) each
