ASSEMBLY ABACHUS

WHAT YOU NEED
2 people
spanner n° 17
+/- 45 min.

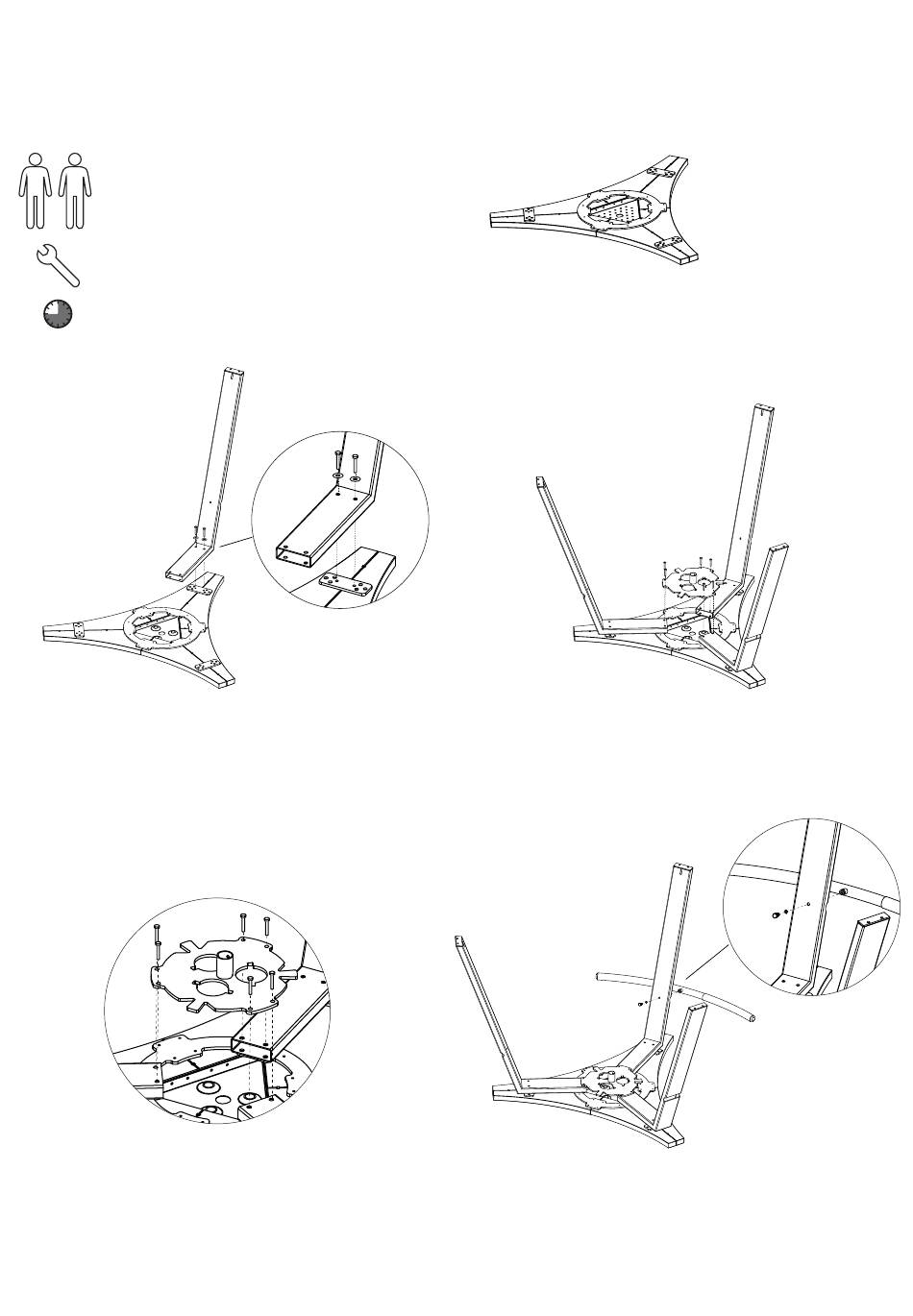

2. Now fasten each of the 3 legs to the edge of the tabletop
using the 6 M10x50 bolts and the 6 M10 flat washers.
Do not yet tighten the bolts.
4. Fasten it using the 6 M10x55 bolts. Now also tighten
the 6 bolts mentioned in step 2.
4 assembly abachus + ashtray
1. Put the tabletop on the ground upside down. Use the packing material to
protect the tabletop's surface.
3. Position the assembly disk in the middle of the
table between the 3 legs. Make sure that the tube
for fastening the Inumbrina parasol will be facing
downwards once the table is resting on its legs.
5a. Fasten the arms using the M10 spring ring and the
M10x25 bolt using a 17mm wrench.
