A S S E M B LY AR TH U R

WHAT YOU NEED

2 people
open- en spanner no. 10
hexagon socket wrench no. 5
screwdriver
+/- 45 min.

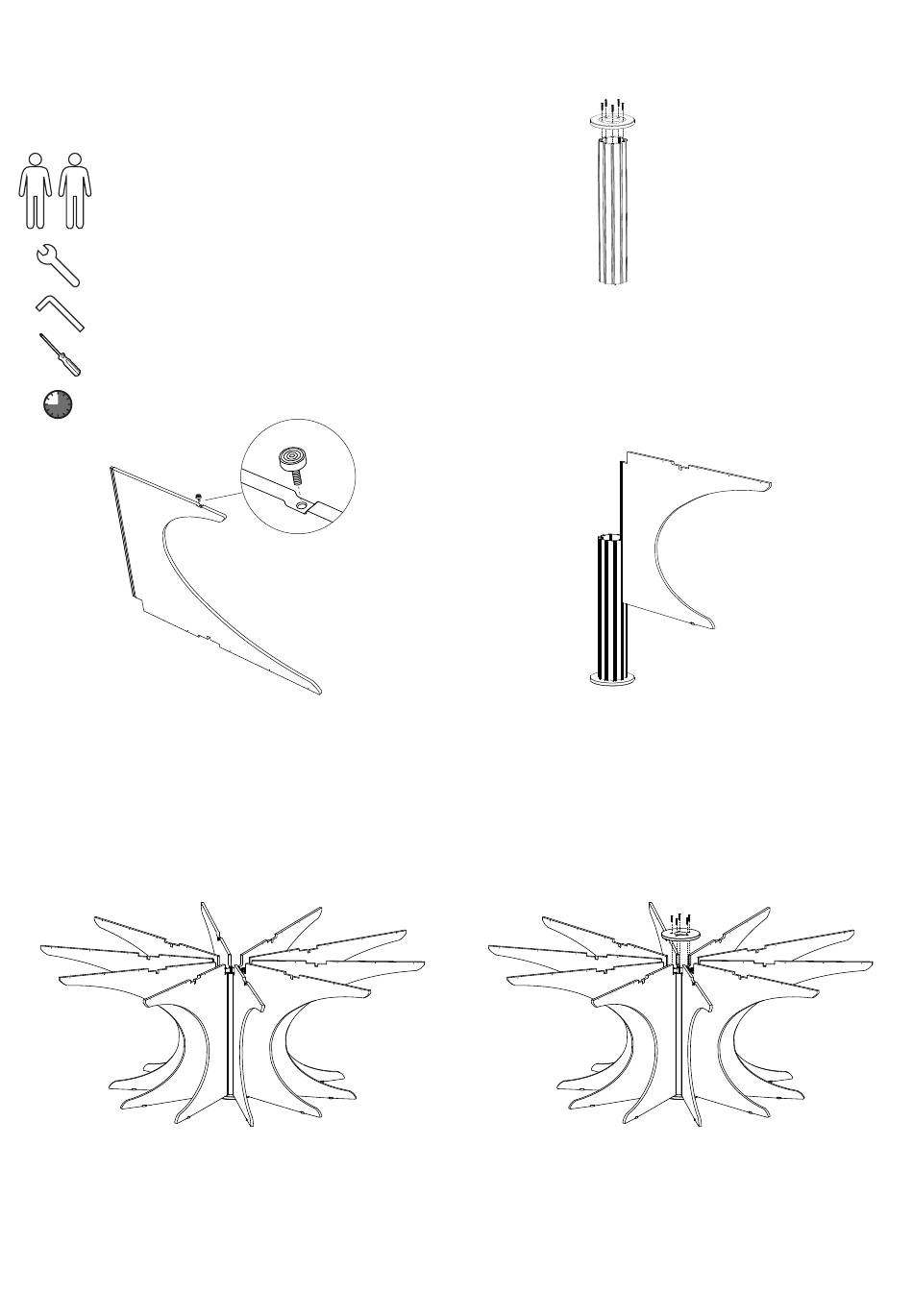

2. Screw a rubber foot into each table leg.
IMPORTANT
: make sure you screw them all the way
into the leg! To facilitate this operation, you can put a
drop of washing-up liquid or cooking oil in the hole.
4. Repeat this step until you have fitted all the table legs.
TIP
: If you experience difficulties in sliding the legs in
the grooves, try using silicone spray.
4

assembly arthur

1. Screw the small disk with the rubber ring unto the
aluminium plinth using the screws provided.
3. Turn around the aluminium plinth, now equipped
with the small disk, and insert the table legs. They fit
into the grooves provided.
5. When all the legs have been inserted in the aluminium
plinth, you should then screw the second small disk on
top of the plinth using the screws provided.
