Installation
Surveillance partition:

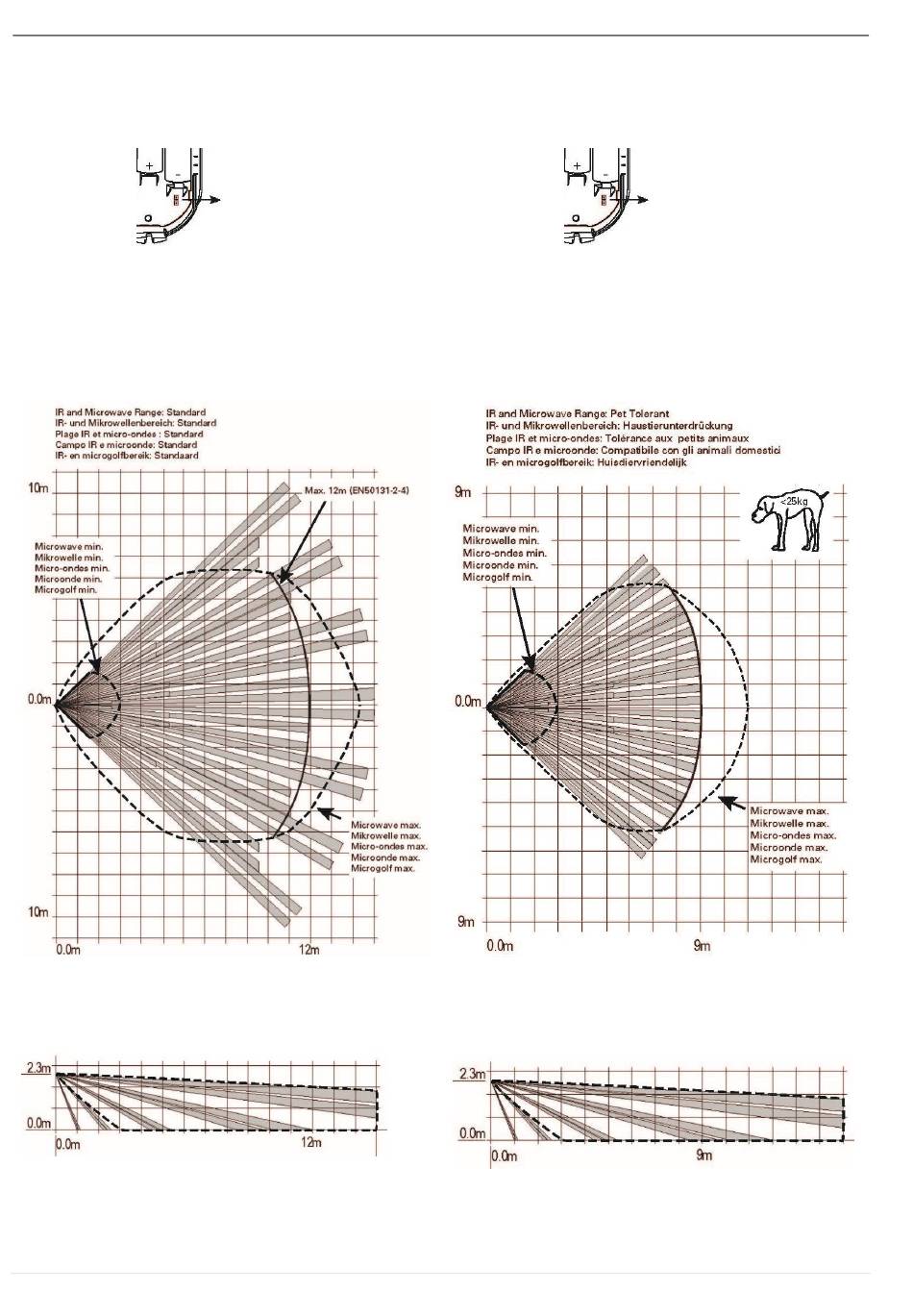

The following diagrams show the region captured by the detector.
Jumper not connected to both CON1 A
contacts
Horizontal
Standard
Vertical:
Standard
For optimal detection, the detector should be mounted at a height of 180–220 cm.
50 | E N
Jumper connected to both
CON1 A contacts
Pet-proof
Pet-proof
