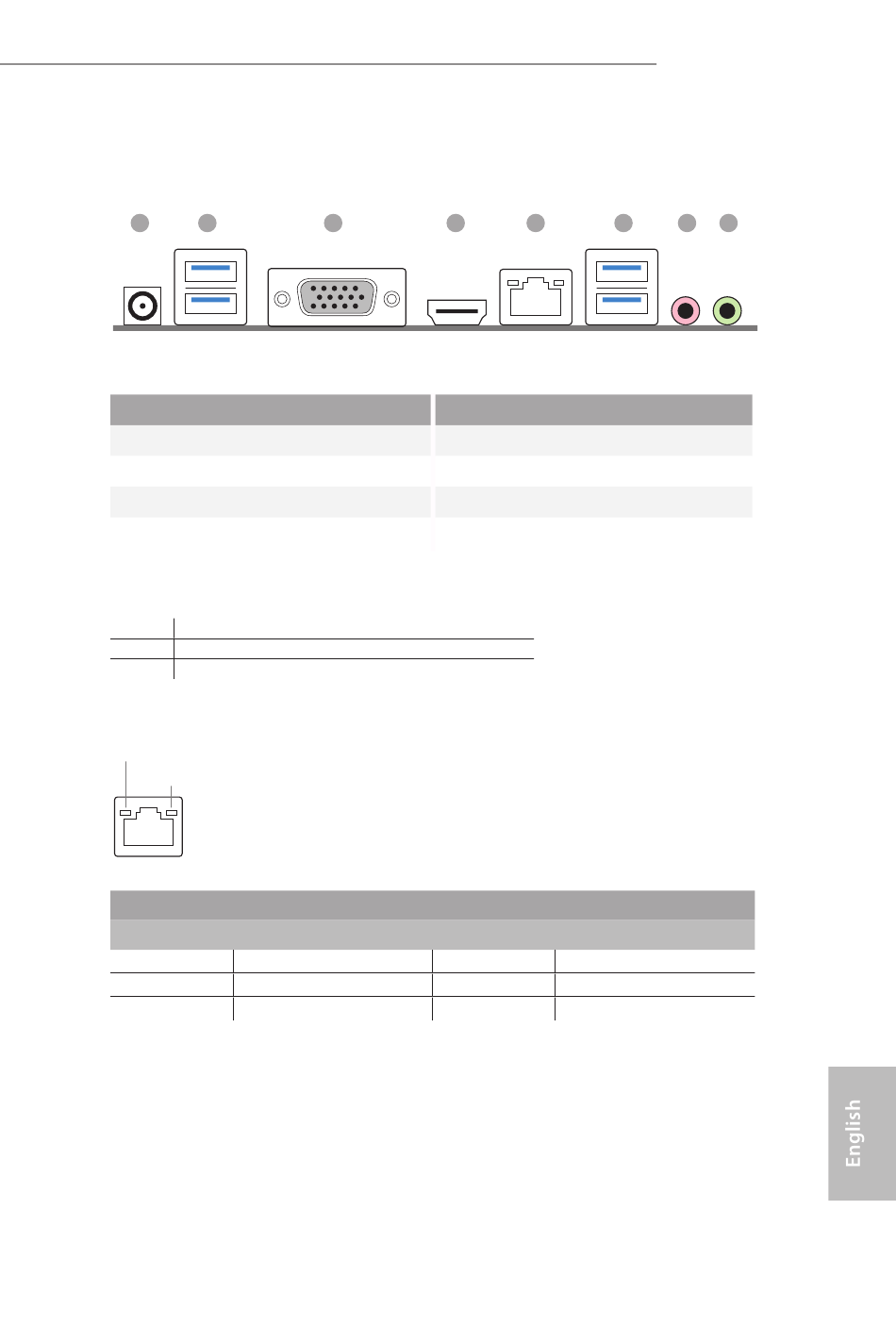

I/O Panel
1 2
No. Description
1 DC Jack*
2 USB 3.0 Ports (USB3_01)
3 D-Sub Port
4 HDMI Port
* Please use a 19V power adapter for the DC jack. This jack accepts dual barrel plugs with an inner diameter of
5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
DELTA DELTA-ADP-150TB-150W/19V
HP HP-TBC-BA52-150W/19V
FSP FSP-FSP150-ABAN1-150W/19V
** There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
3 4
No. Description
5 LAN RJ-45 Port**
6 USB 3.0 Ports (USB3_23)
7 Microphone (Pink)
8 Front Speaker (Lime)
Speed LED
Status
Off
Off
Orange
N3150TM-ITX
5 6 7
Description
10Mbps connection
100Mbps connection
1Gbps connection
8
