Bpt NVM/200 Installationsanleitung Seite 2

C
2
NVM/301
NVM/200
B
BTICINO
serie Living International
art. L4803
o Light art. N4803,
VIMAR serie Plana o
Eikon
LEGRAND serie Vela o
Cross
NVM/301
NVM/200
B
E
VIMAR serie Idea o
Rondò
deve essere effettuato rispettando le
norme vigenti e privilegiando il riciclag-
gio delle sue parti costituenti.
Sui componenti, per cui è previsto lo
smaltimento con riciclaggio, sono ripor-
tati il simbolo e la sigla del materiale.
INSTALLATION
GB
INSTRUCTIONS
NVM/200 COLOUR
MONITOR MODULE
Colour monitor to be used in conjunc-
tion with the hands-free module NC/221
in series 200 video entry control installa-
tions.
It can be inserted, along with the hands-
free module, in a unified recessed box
of six modules using the NS/61 kit, or
alone in a unified rectangular recessed
box of three modules.
The unit is equipped with two frames
and various adaptors for the use of a
number of models of plates on the
market.
5
It features the following controls (fig. 1):
Brightness
Saturation colour
Entry panel activation
• Centralized control (stairs light
and entry panel selection)
Function of each terminal (fig. 2)
]
3 video signal coaxial
4 video signal shield cable
If the line does not continue, connect
the 75Ω resistance (violet-green-black-
gold) between terminals 3 and 4 and 4.
3 positive v. signal ] twisted
4 negative v. signal pair
If the line does not continue, connect the
two 56Ω resistances (green-blue-black-
gold) between terminals 3-5 and 4-5.
5 – 14÷17.5 V ]
6 + monitor power supply
7 input call from entry panel
8 audio from entry panel
9 audio to entry panel
E enabling receiver
6
Technical features
• Video signal system: PAL.
• Display: 2" colour LCD Poly-Silicon
TFT.
• Resolution: 862x240 dots.
• Supply voltage: 14÷17.5 V DC.
• Current demand: max. 140 mA (5 mA
in standby).
• Video input: 1 Vpp (in the range 0.7 to
1.5 Vpp) from coaxial line; V+ 0.6, Vpp
V– 0,6 Vpp (in the range 0.3 to 0.9
Vpp) from differential line (twisted
pair).
• Video input impedance: 5 kΩ.
• Working temperature range: from 0 °C
to +35 °C.
Installation
The monitor module can be installed
teamed with twin-channel module
NC/221 in an embedding box (fig. 4), or
on its own teamed with the twin-channel
module (fig. 3).
Recess the embedding box flush with
the wall at a suitable height for the user.
WARNING.

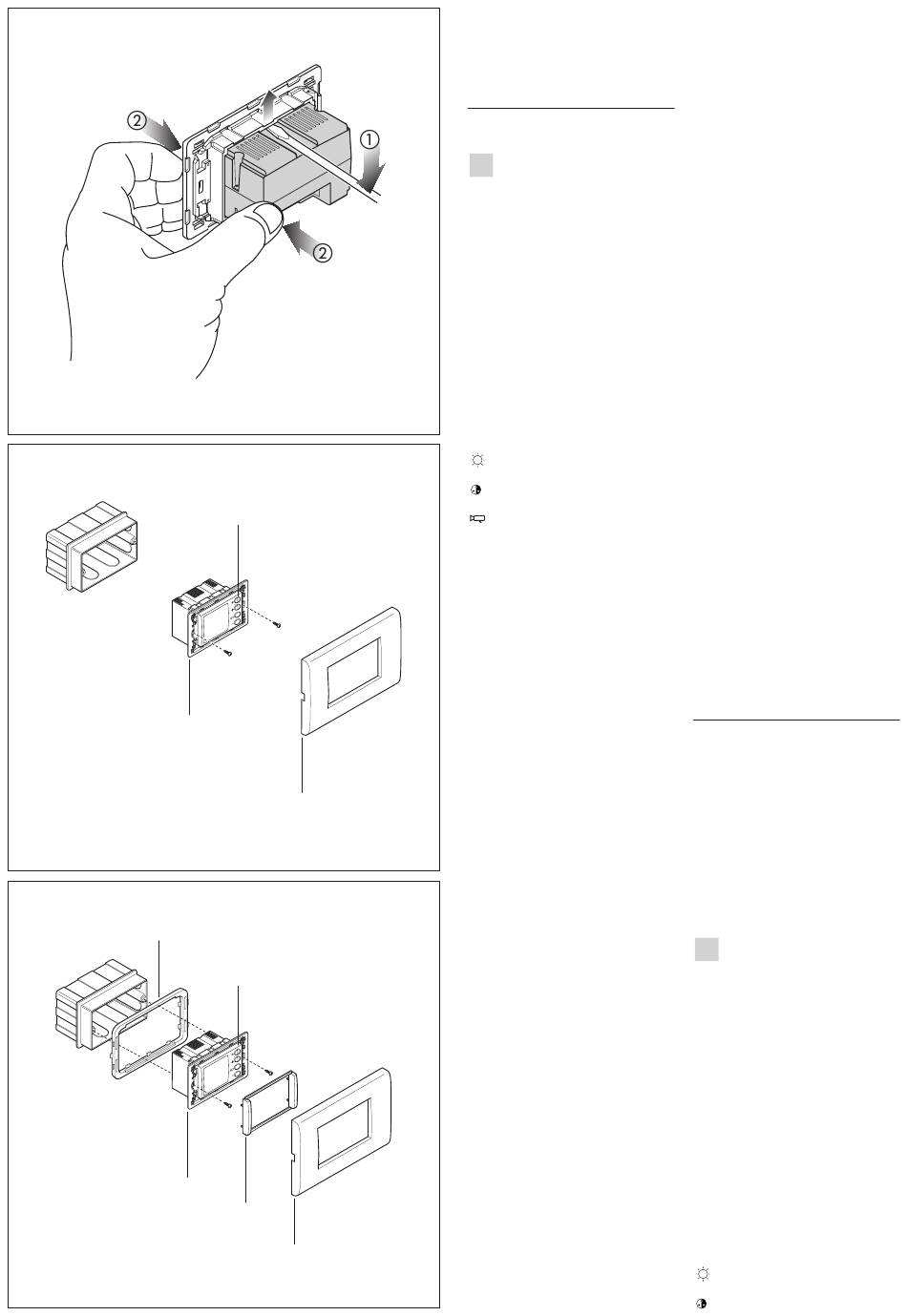

- To extract the monitor module from
the frame, use the locking tabs and
7
push from the rear (fig. 5).
- When using GEWISS plates of the
Playbus and Playbus Young series,
eliminate the hooks indicated in fi-
gure 11.
- For the GEWISS plates of the Play-
bus series (fig. 9) and ABB series
Elos (fig. 14) eliminate the joining
rods of the adaptor.
Examples of assembly of the NVM/200
monitor module in a standardised single
embedding box with a number of com-
mercially available front plates (fig
6÷14).
NOTE.
- The brands Playbus, Playbus
Young and System are the pro-
perty of GEWISS S.p.A;
- The brands Axolute, Light, Luna
and Living International are the
property of BTICINO S.p.A;
- The brands Plana, Idea, Idea
Rondò and Eikon are the property
of VIMAR S.p.A;
- The brands Vela and Cross are the
property of LEGRAND S.p.A;
- The brands Banquise and Sistema
45 are the property of AVE S.p.A;
- The Elos brand is the property of
ABB S.p.A.
DISPOSAL
Do not litter the environment with pack-
ing material: make sure it is disposed of
according to the regulations in force in
the country where the product is used.
When the equipment reaches the end of
its life cycle, take measures to ensure it
is not discarded in the environment.
The equipment must be disposed of in
compliance with the regulations in force,
recycling its component parts wherever
possible.
Components that qualify as recyclable
waste feature the relevant symbol and
the material's abbreviation.
INSTALLATIONS-
D
ANLEITUNG
FARBMONITORMODUL
NVM/200
Der Farbmonitormodul ist in den Video-
sprechanlagen Serie 200 zusammen mit
dem Modul mit Freisprechfunktion
NC/221 zu benutzen.
Kann mit dem Set NS/61 in Verbindung
mit dem Freisprechmodul in einen Stan-
dard-UP-Kasten für sechs Module ein-
gesetzt werden oder allein in einen
rechteckigen Standard-UP-Kasten für
drei Module.
Das Gerät wird mit zwei Rahmen und
verschiedenen Adaptern für den Ge-
brauch einiger im Handel befindlicher
Abdeckrahmen geliefert.
Ist mit den folgenden Steuerfunktionen
ausgestattet (Abb. 1):
Helligkeit
Farb-Saturation
