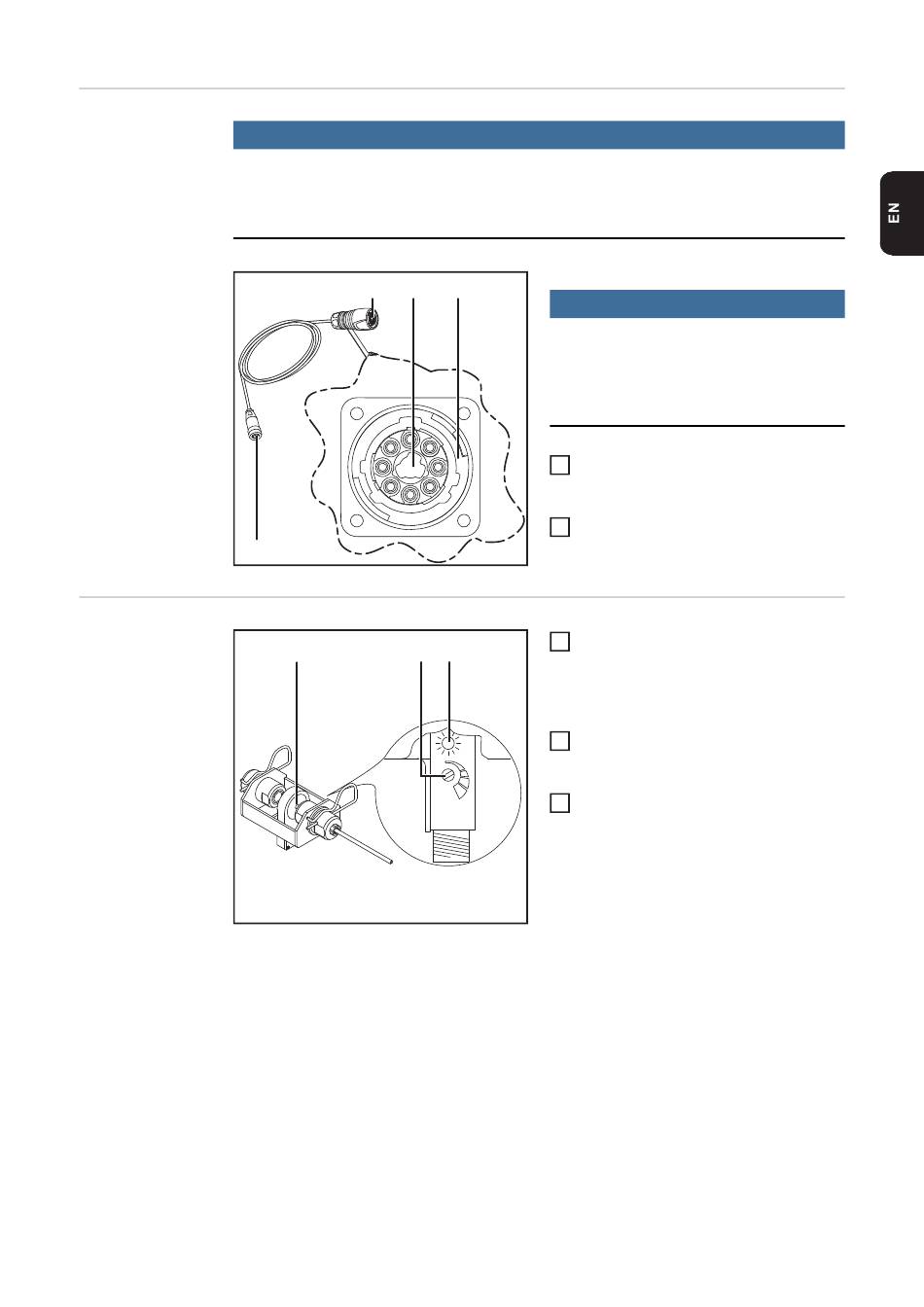

Connecting the
NOTE!
sensor
The wirefeeder/SplitBox recognises that there is a sensor connected to the connect-
ing cable.
Each sensor is supplied with its own connecting cable, which must be used. The sensor
connecting cable will be marked with the item number and name of sensor.
(4)
Adjusting the
OPT/i WF R wire
end ring sensor
(1) (3) (2)
(1) (2) (3)
NOTE!
The plug (1) of the connecting cable may
only be connected to the sensor
connections (2) that are colour-coded
red (3).
Connect the plug (1) on the connecting
1
cable to an OPT/i ext. sensor plug (2)
connection of the wirefeeder/SplitBox
Connect the plug (4) to the sensor
2
Rotate the wire electrode in the
1
opening (1) of the sensor during the
entire adjustment process
- LED (3) lights up when the sensor
detects the wire electrode
Turn the adjusting screw (2) back until
2
the LED (3) goes out
- Wire sensor is deactivated
Slowly turn the adjusting screw (2) for-
3
wards again until the LED (3) lights up
- stop turning as soon as the LED lights
up
- The sensor is now set at its lowest
sensitivity level
- This prevents the wire sensor from
being triggered accidentally
21
