General

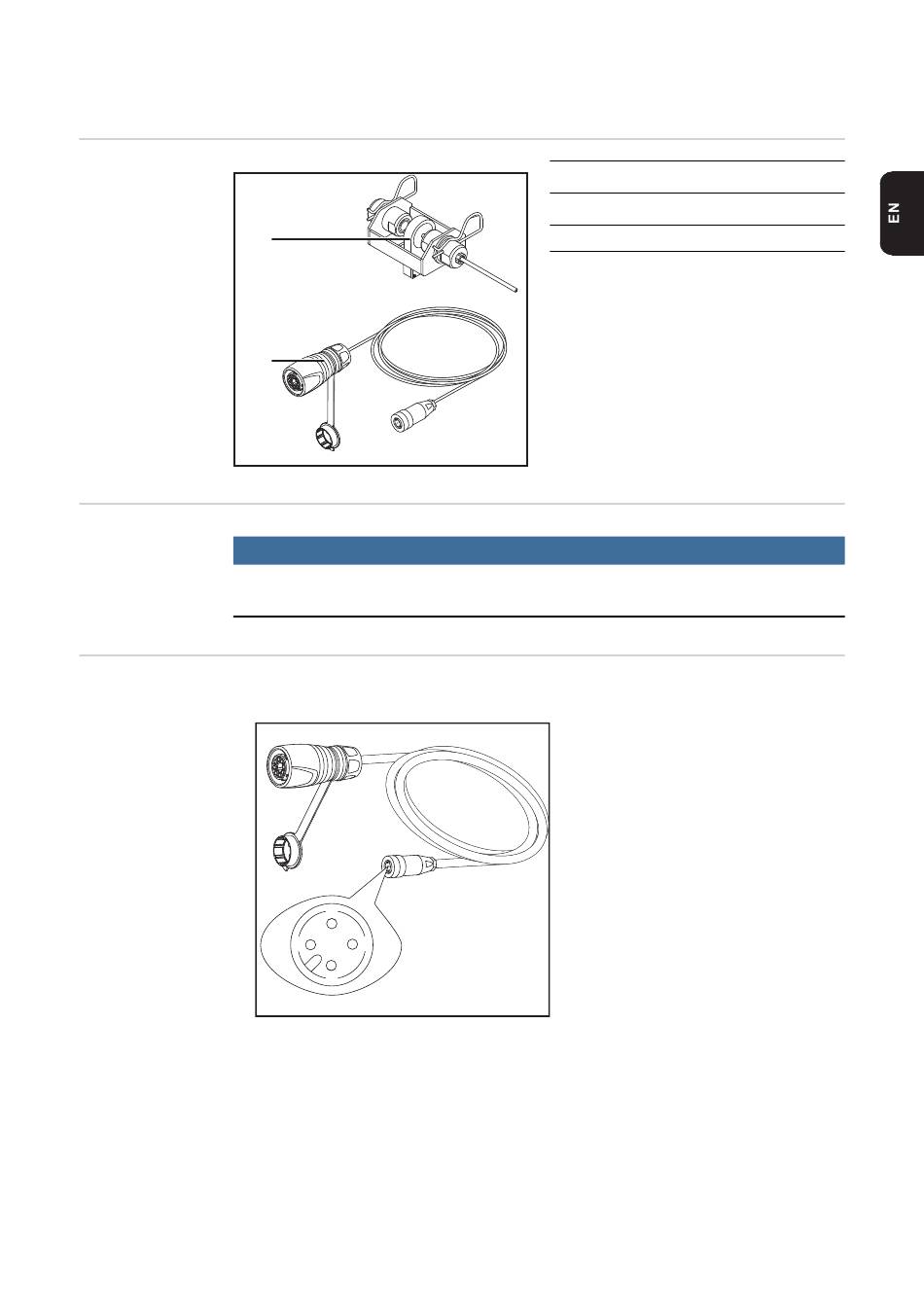

Scope of supply

(1)
(1)

Prerequisites

NOTE!
The OPT/i WF R wire end ring sensor can only be used if an OPT/i ext. sensor plug
has been installed in the respective wirefeeder or SplitBox.

Pin assignments

Pin assignment of connecting cable plug:
3.
2. 4.
1.
(1) Sensor with holder
(2) Connecting cable
(3) This document (not shown)
1. BN = brown
2. Not used
3. BU = blue
4. BK = black
15
