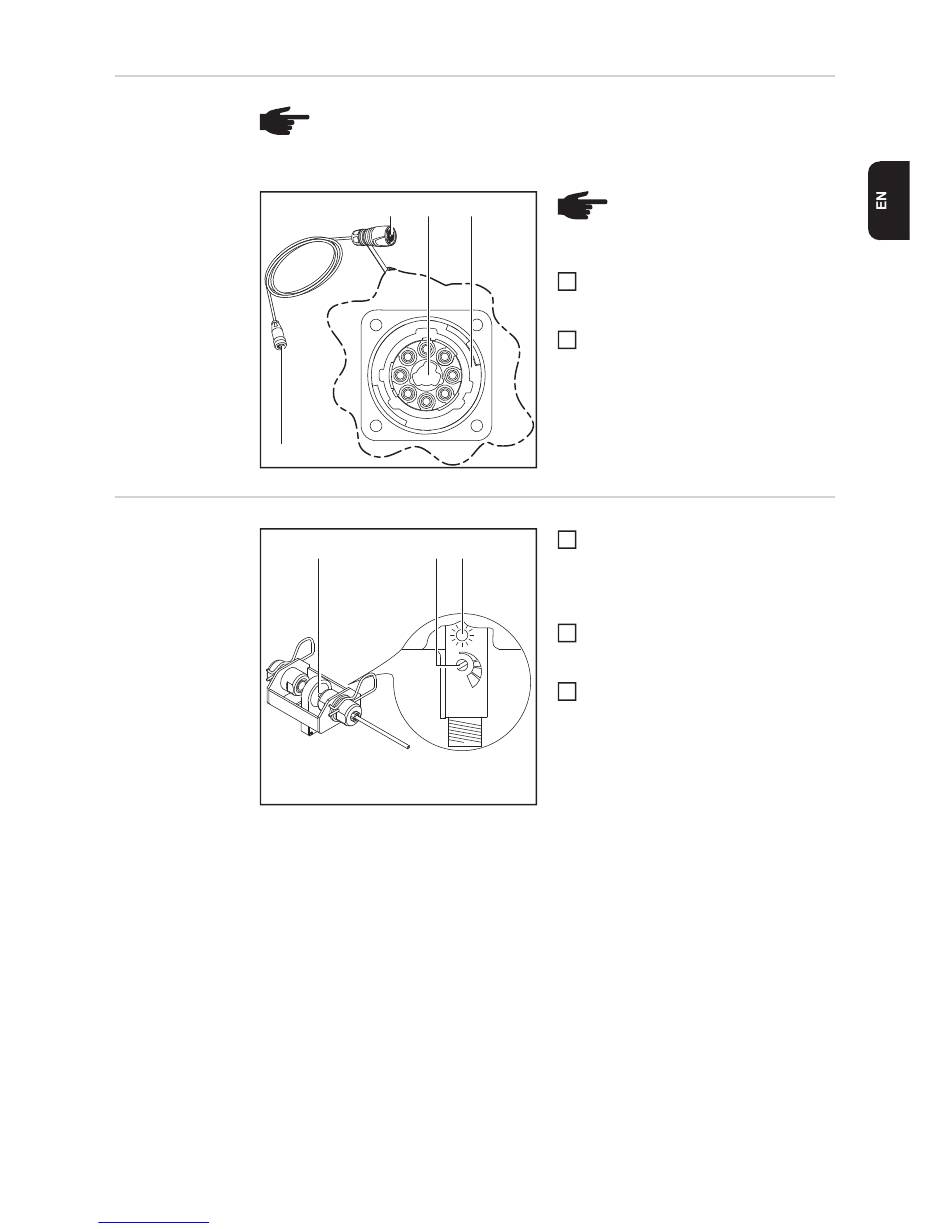

Connecting the
sensor
Adjusting the
OPT/i WF R wire
end ring sensor
Downloaded from www.Manualslib.com
NOTE! The wirefeeder/SplitBox recognises that there is a sensor connected to
the connecting cable. Each sensor is supplied with its own connecting cable,
which must be used. The sensor connecting cable will be marked with the item
number and name of sensor.
(1)
(4)
(1)
manuals search engine
(3) (2)
Connect the plug (1) on the connecting
1
cable to an OPT/i ext. sensor plug (2)
connection of the wirefeeder/SplitBox
Connect the plug (4) to the sensor
2
Rotate the wire electrode in the
1
(2) (3)
opening (1) of the sensor during the
entire adjustment process
-
Turn the adjusting screw (2) back until
2
the LED (3) goes out
-
Slowly turn the adjusting screw (2) for-
3
wards again until the LED (3) lights up
- stop turning as soon as the LED lights
up
-
-
NOTE! The plug (1) of the con-
necting cable may only be con-
nected to the sensor connections
(2) that are colour-coded red (3).
LED (3) lights up when the sensor
detects the wire electrode
Wire sensor is deactivated
The sensor is now set at its lowest
sensitivity level
This prevents the wire sensor from
being triggered accidentally
21
