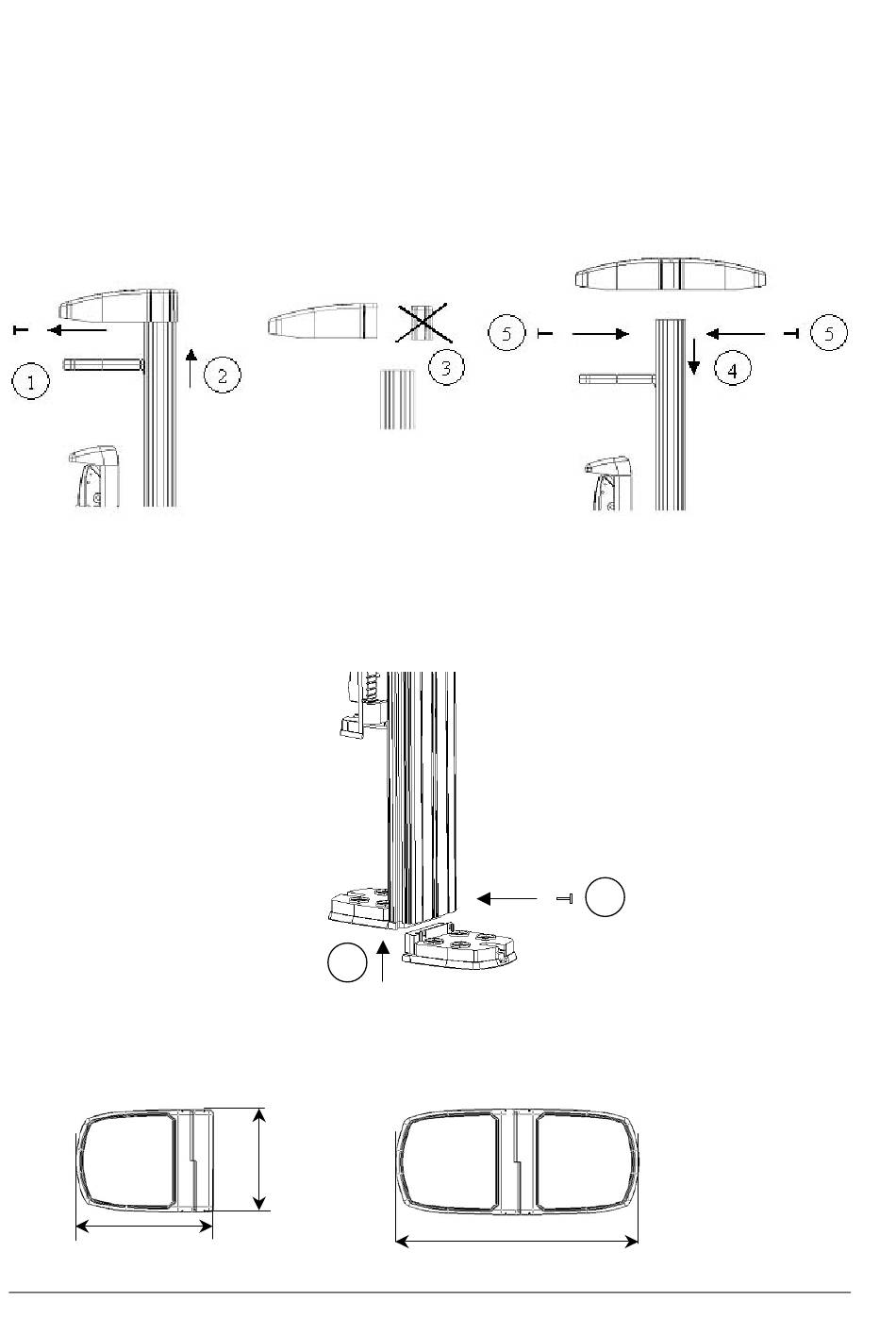

10. Mounting columns back-to-back

Mounting the top plates
1. Remove the screws holding the top plate that is already in place. (1)
2. Remove the top plate and the plug. (2)
3. The plug can no longer be used for back-to-back mounting. (3)
4. Assemble the two plates and insert them on the chassis. (4)
5. Fix the two plates to the chassis. (5)
Mounting the bottom plate
1. Mount the bottom plate on the chassis. (1)
2. Fix the bottom plate with the screws provided. (2)
2
1

11. Dimensions and specifications

Single column (mm): Columns back-to-back (mm):
135
310
180
9
