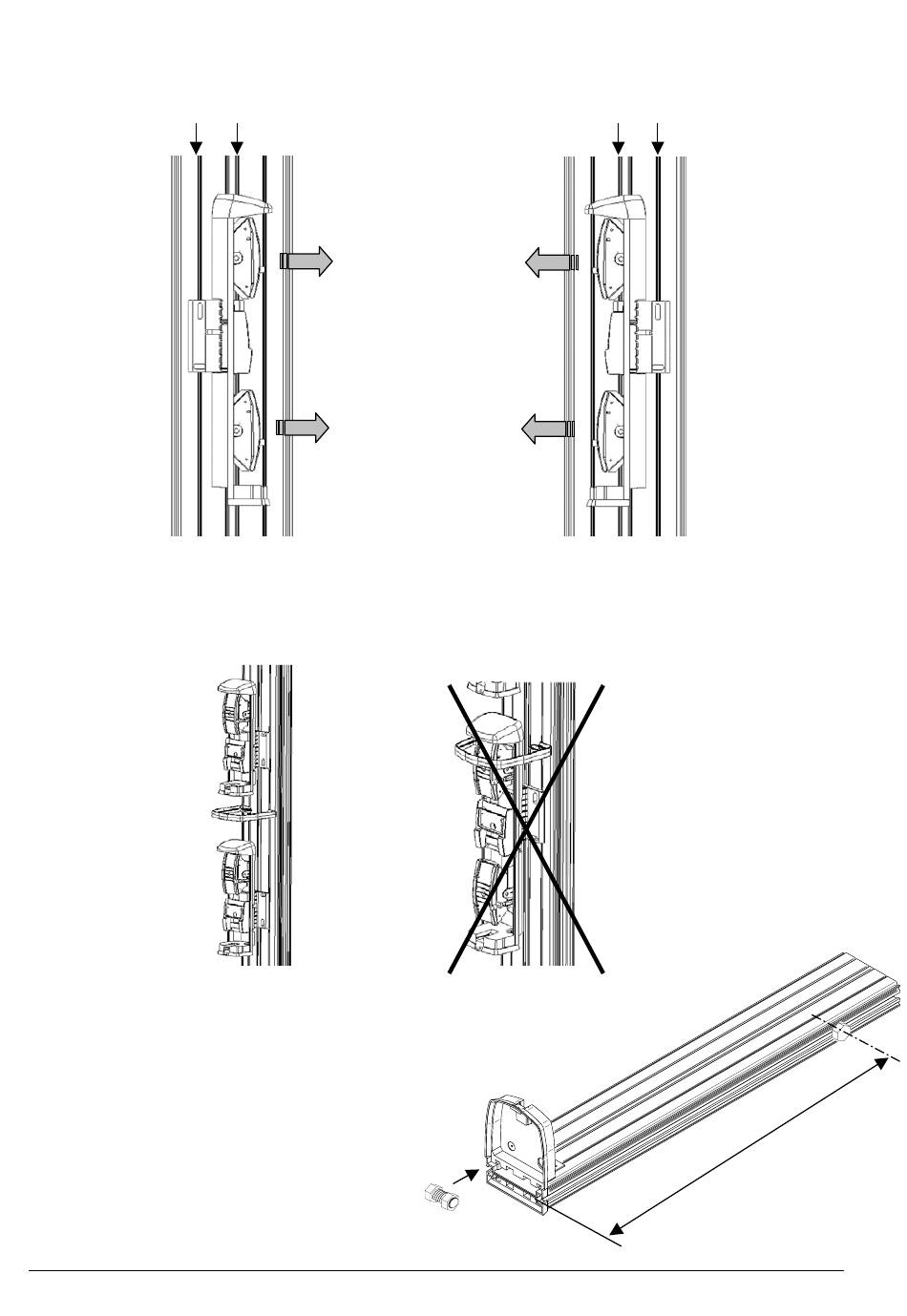

5. Fix the modules to the chassis using their adjustable supports and the 4 screws
provided.
Fix the module in these grooves to
direct it towards the right
5.

Mounting the guide hoops

Never position the guide hoops in front of the cells, so that the transmission of the signal is
not impaired.
6.

Mounting the column on the base

1. Collect together 2 pairs of nuts and
bolts.
2. Slide the nuts in the grooves in the
column profile to about 1 m (40 in)
from the bottom of the column.
3. Tighten the bolts, without forcing them,
to lock them in place.
Fix the module in these grooves to
direct it towards the left
Top
Bottom
6
≅
1m
