Donning - JSP POWERCAP INFINITY Benutzerhandbuch

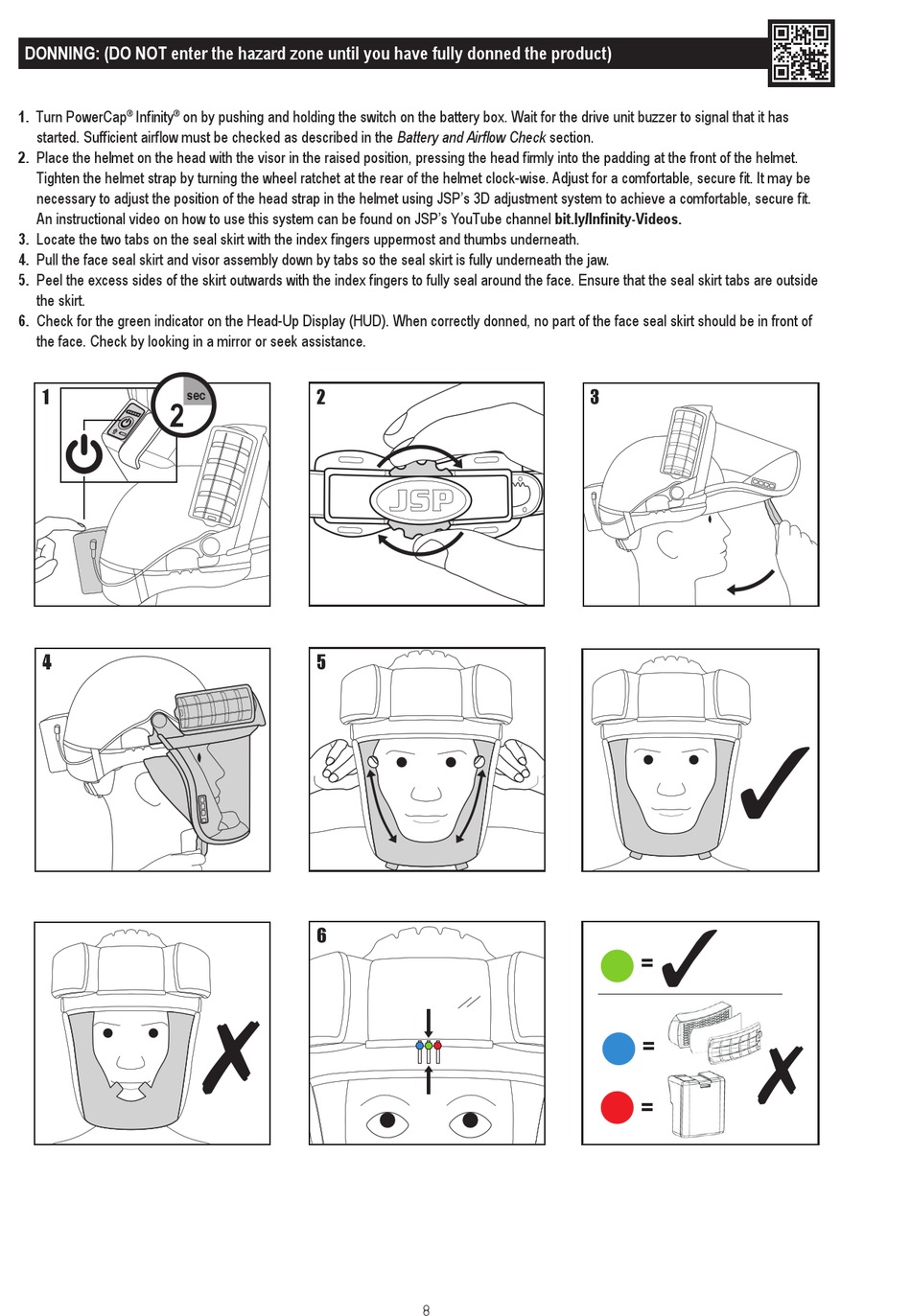

DONNING: (DO NOT enter the hazard zone until you have fully donned the product)
1. Turn PowerCap
Infinity on by pushing and holding the switch on the battery box. Wait for the drive unit buzzer to signal that it has
® ®
started. Sufficient airflow must be checked as described in the Battery and Airflow Check section.
2. Place the helmet on the head with the visor in the raised position, pressing the head firmly into the padding at the front of the helmet.
Tighten the helmet strap by turning the wheel ratchet at the rear of the helmet clock-wise. Adjust for a comfortable, secure fit. It may be
necessary to adjust the position of the head strap in the helmet using JSP's 3D adjustment system to achieve a comfortable, secure fit.
An instructional video on how to use this system can be found on JSP's YouTube channel bit.ly/Infinity-Videos.
3. Locate the two tabs on the seal skirt with the index fingers uppermost and thumbs underneath.
4. Pull the face seal skirt and visor assembly down by tabs so the seal skirt is fully underneath the jaw.
5. Peel the excess sides of the skirt outwards with the index fingers to fully seal around the face. Ensure that the seal skirt tabs are outside
the skirt.
6. Check for the green indicator on the Head-Up Display (HUD). When correctly donned, no part of the face seal skirt should be in front of
the face. Check by looking in a mirror or seek assistance.
1
sec
2
4
2
5
6

3
8
=
=

=
