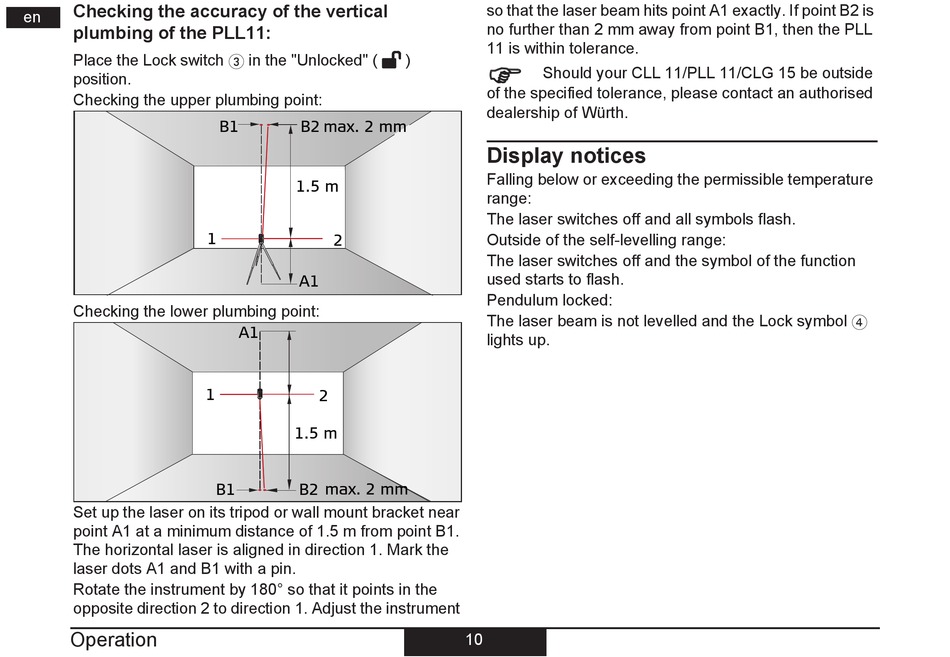

Checking the accuracy of the vertical
en
plumbing of the PLL11:
GB
Place the Lock switch 3 in the "Unlocked" (
F
position.
I
Checking the upper plumbing point:
E
P
NL
DK
S
N
FIN
J
Checking the lower plumbing point:
CN
ROK
PL
HR
H
RUS
CZ
GR
Set up the laser on its tripod or wall mount bracket near
LT
point A1 at a minimum distance of 1.5 m from point B1.
LV
The horizontal laser is aligned in direction 1. Mark the
EST
laser dots A1 and B1 with a pin.
Rotate the instrument by 180° so that it points in the
SLO
opposite direction 2 to direction 1. Adjust the instrument
SK
Operation
M
TR
B1 B2 max. 2 mm
1.5 m
1
2
A1
A1
1
2
1.5 m
B1 B2 max. 2 mm
so that the laser beam hits point A1 exactly. If point B2 is
no further than 2 mm away from point B1, then the PLL
11 is within tolerance.
)
Should your CLL 11/PLL 11/CLG 15 be outside
of the specified tolerance, please contact an authorised
dealership of Würth.
Display notices
Falling below or exceeding the permissible temperature
range:
The laser switches off and all symbols flash.
Outside of the self-levelling range:
The laser switches off and the symbol of the function
used starts to flash.
Pendulum locked:
The laser beam is not levelled and the Lock symbol 4
lights up.
10
