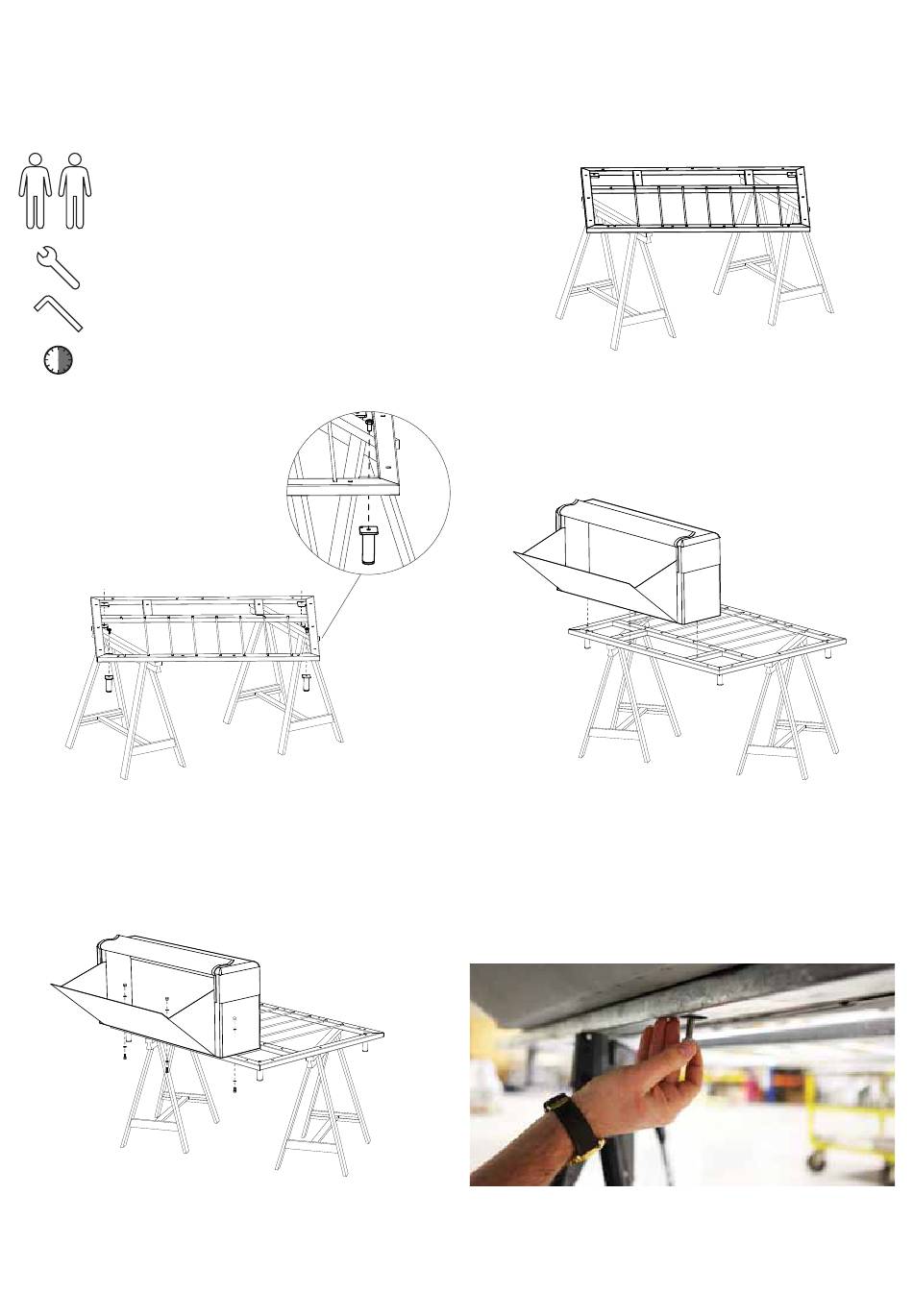

ASSEMBLING THE SEAT WITH SIDE TABLE

WHAT YOU NEED

2 people
no. 17 spanner
no. 5 hex key
+/- 30 min.
2 to 4 trestles
2. Attach the 4 feet to each corner of the frame with an
M10x20 bolt. Tighten them using a no. 17 spanner.
4. Push 3 M8x20 bolts, each with one M8 flat washer on
them, through the underside of the frame so that they
come out in the body of the backrest, and attach them
4 seat with side table
1. Place the frame on trestles (so that you can reach the
underside more easily).
with the rods facing upwards.
3. Attach the back rest to the back of the frame (the side
with no rods present), with the storage pouch facing
outwards. Make sure the holes in the frame match up
with the holes in the backrest. There is a rod missing
from the frame where the side table will be fitted.
Bear this in mind as you are positioning the
backrest.
with an M8 cap nut.
BE SURE
to place the frame
