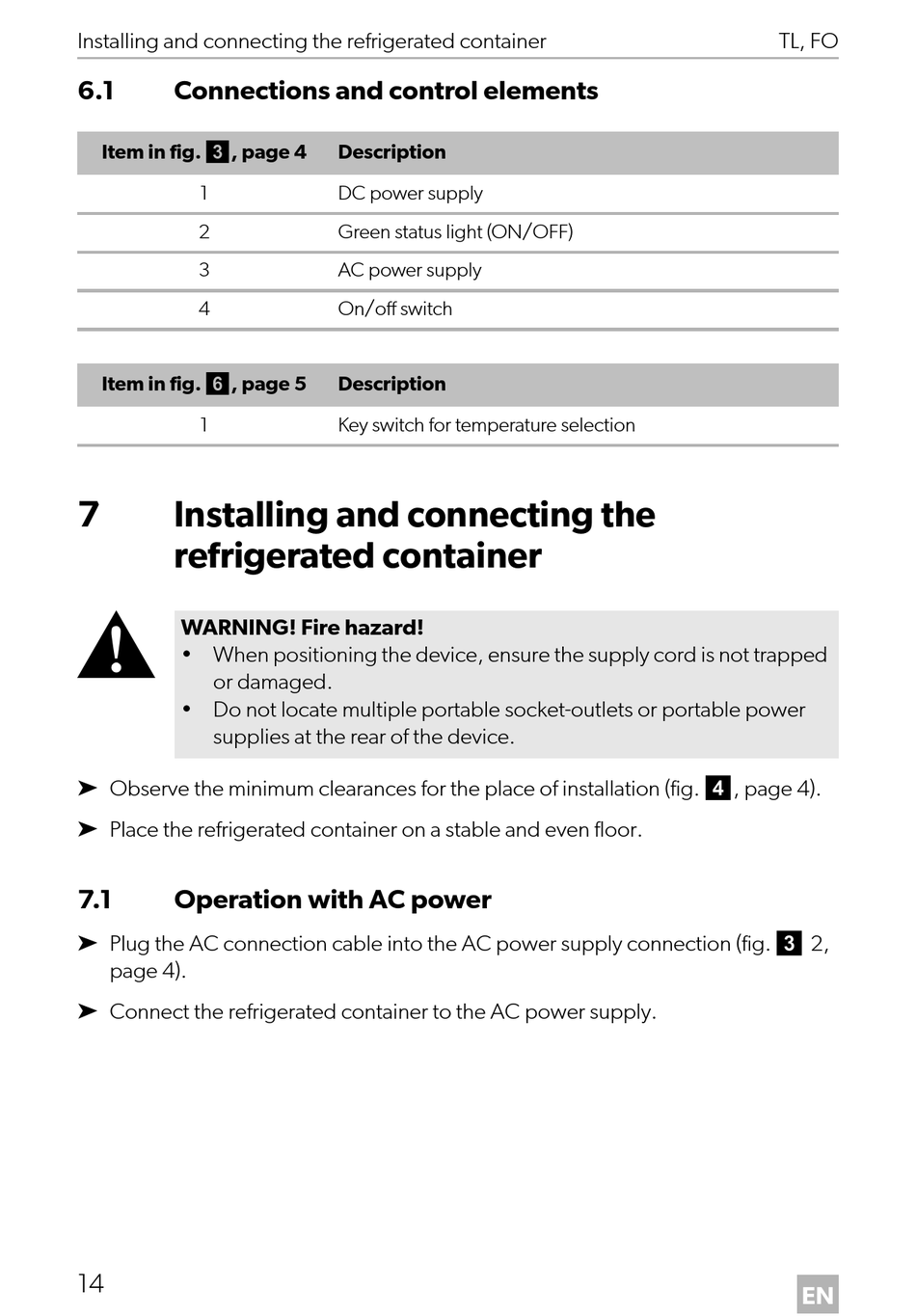

Installing and connecting the refrigerated container

6.1

Connections and control elements

Item in fig. 3, page 4
1
2
3
4
Item in fig. 6, page 5
1
7 Installing and connecting the
refrigerated container
!
WARNING! Fire hazard!
• When positioning the device, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
➤ Observe the minimum clearances for the place of installation (fig. 4, page 4).
➤ Place the refrigerated container on a stable and even floor.
7.1 Operation with AC power
➤ Plug the AC connection cable into the AC power supply connection (fig. 3 2,
page 4).
➤ Connect the refrigerated container to the AC power supply.
14
Description
DC power supply
Green status light (ON/OFF)
AC power supply
On/off switch
Description
Key switch for temperature selection
TL, FO
EN
