Assembly

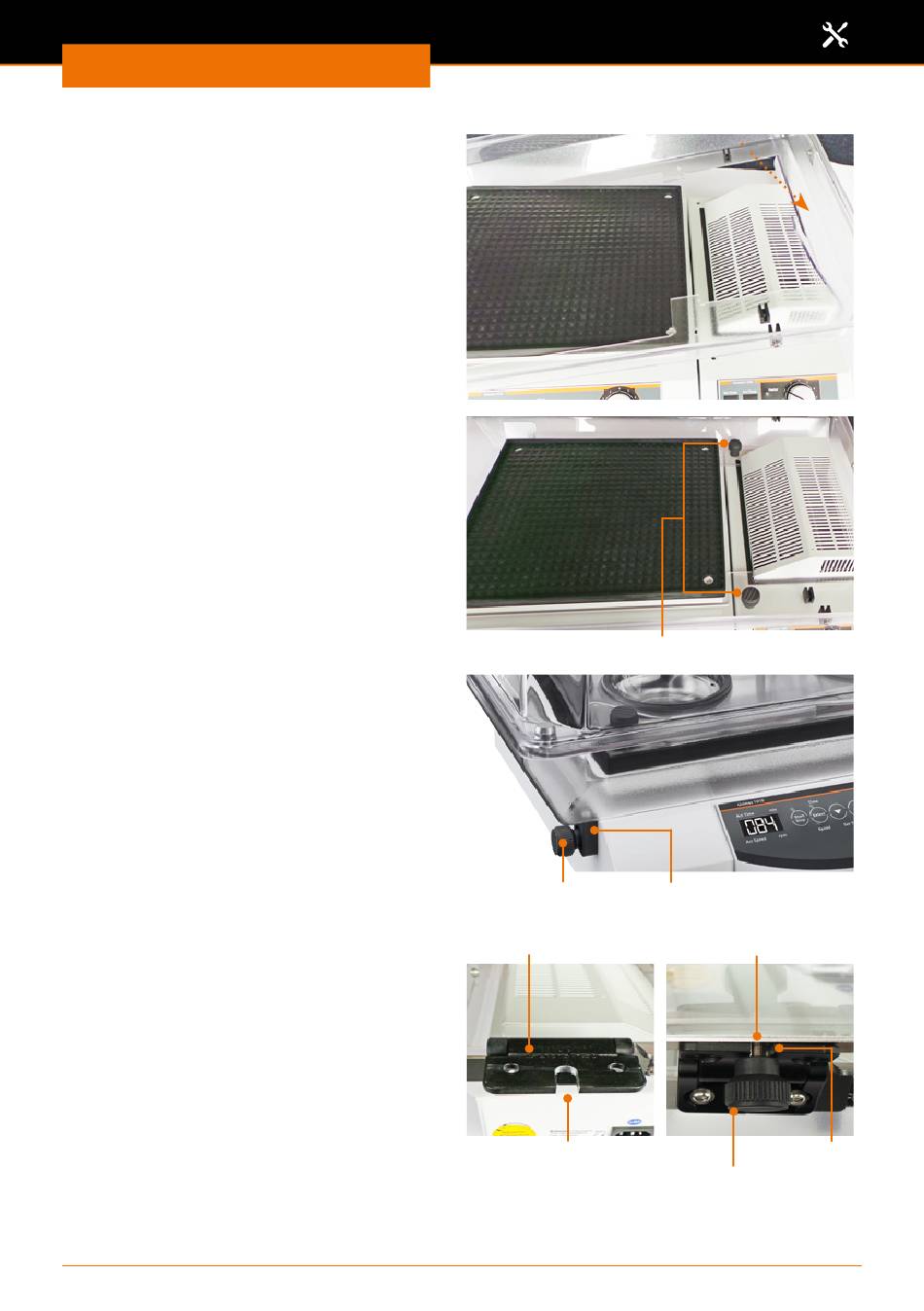

➜ Place lower part hood on shaker and
heater module.
➜ Attach lower part hood to heating
module with 2 knurled screws
supplied.
➜ Turn third knurled screw through left
holding spigot into threaded hole
of shaker on the left hand side and
tighten.
➜ Position hinges horizontally.
➜ Detach knurled nuts from threaded
bolts of hood.
➜ Place upper part hood on mounted
lower part.
➜ When placing upper part insert
threaded bolt into recess of hinge at
lower part of hood.
➜ Tighten knurled screws.
Knurled screws
Knurled screws
Hinge
lower part hood
Recess
18
Holding spigot
Threaded bolt
at upper part hood
Recess
Knurled screw
