Mount Hood - Heidolph Hei-MIX Incubator 1000 Originalbetriebsanleitung

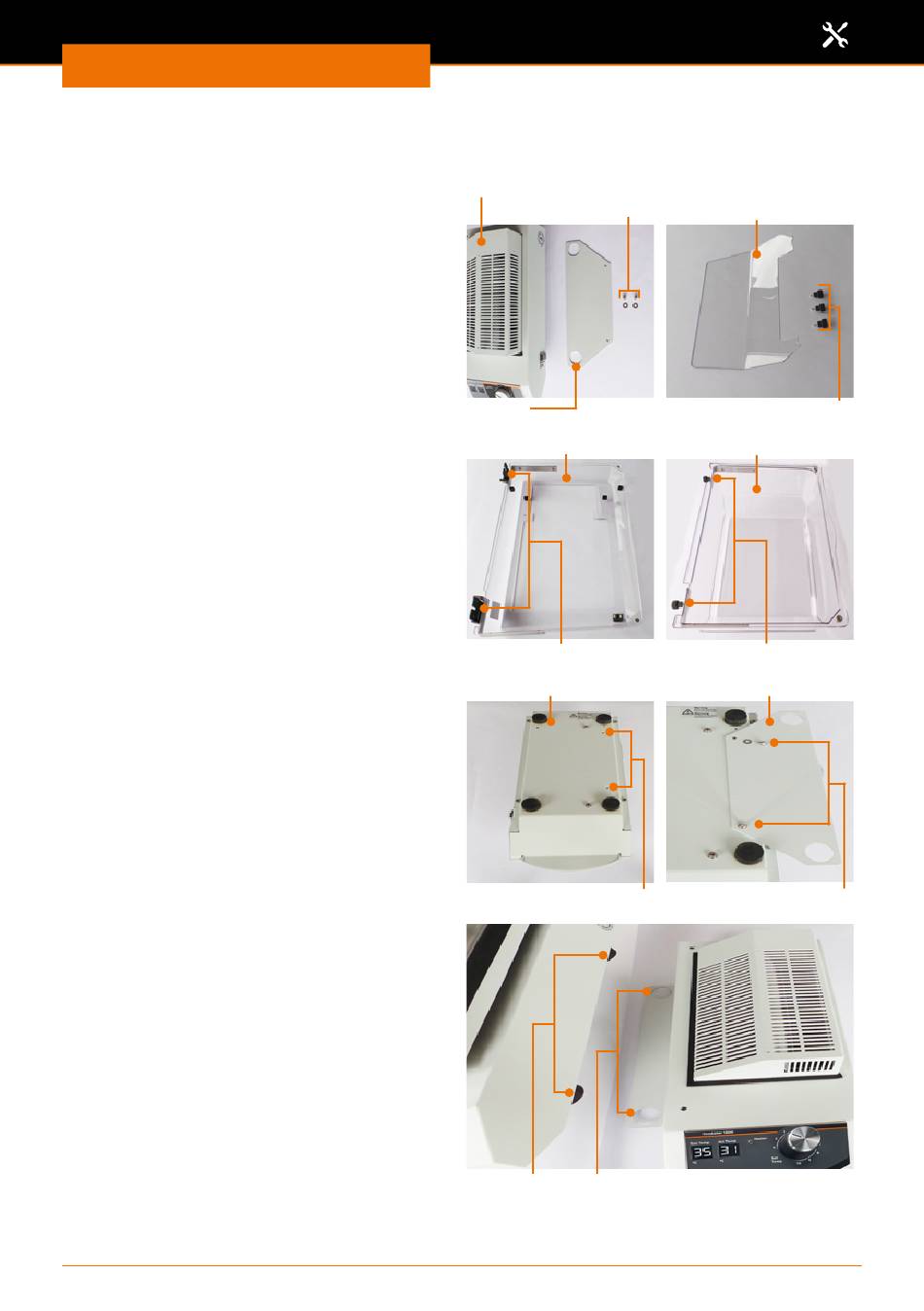

Assembly

Mount hood


Components with Incubator 1000:
▪ 1 heating module
▪ 1 holder
▪ 2 threaded screws (cross slit)
▪ 2 spring washers
▪ 1 Deflector plate
▪ 3 knurled screws
▪ 1 lower part hood
▪ 1 upper part hood
➜ Install holder with two screws and
spring washer supplied at the bottom
of heater module.
➜ Locate heater module on the right side
of shaker.
➜ Plug rubber feet of shaker in cutouts
of holder.
Heating module
Threaded screws
Holder
Lower part hood
Hinges
Bottom heater module
Threaded holes
Rubber feet Cutouts holder
17
Deflector plate
Knurled screws
Upper part hood
Knurled screws
Holder
Threaded screws
