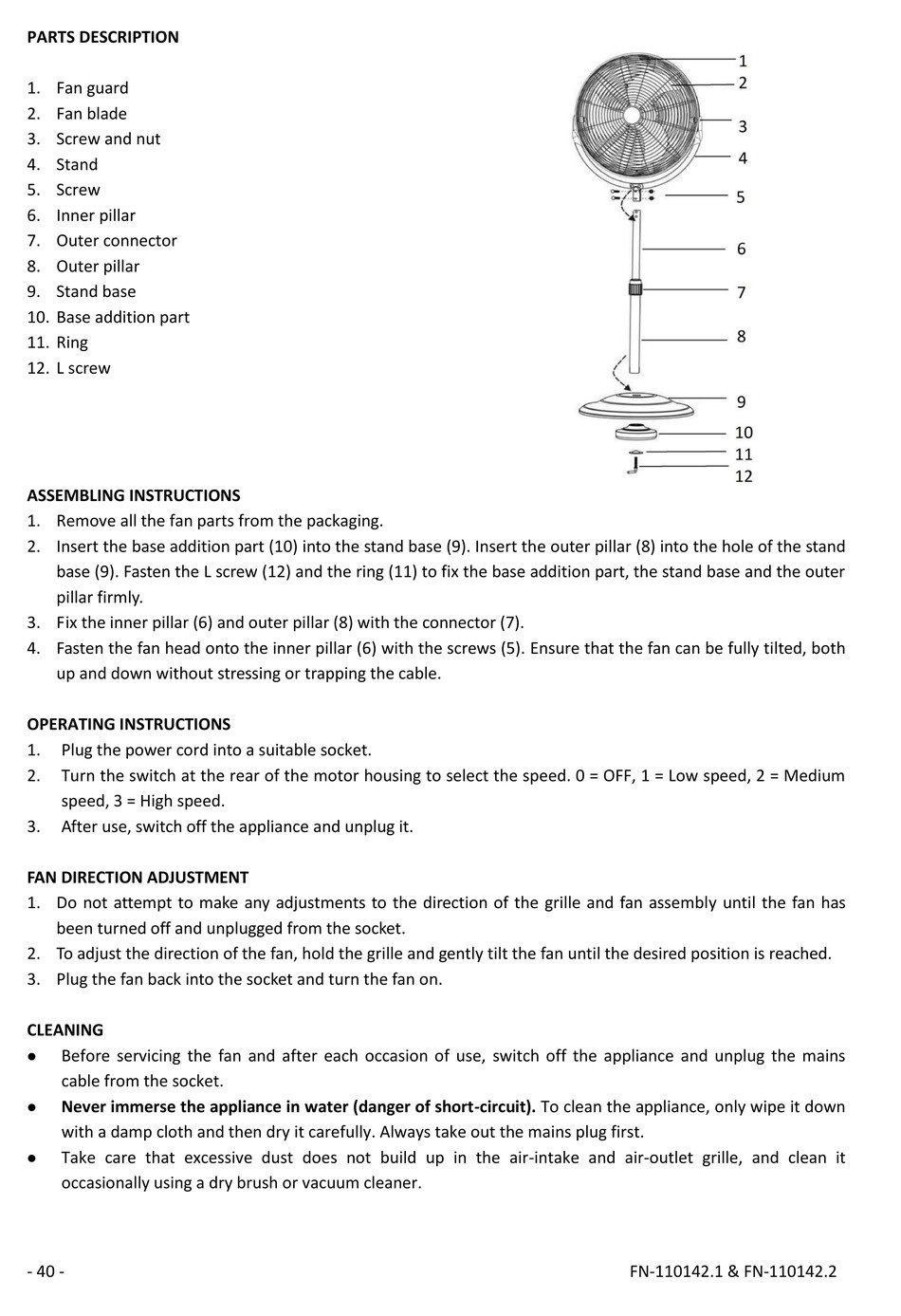

PARTS DESCRIPTION
1. Fan guard
2. Fan blade
3. Screw and nut
4. Stand
5. Screw
6. Inner pillar
7. Outer connector
8. Outer pillar
9. Stand base
10. Base addition part
11. Ring
12. L screw
ASSEMBLING INSTRUCTIONS
1. Remove all the fan parts from the packaging.
2. Insert the base addition part (10) into the stand base (9). Insert the outer pillar (8) into the hole of the stand
base (9). Fasten the L screw (12) and the ring (11) to fix the base addition part, the stand base and the outer
pillar firmly.
3. Fix the inner pillar (6) and outer pillar (8) with the connector (7).
4. Fasten the fan head onto the inner pillar (6) with the screws (5). Ensure that the fan can be fully tilted, both
up and down without stressing or trapping the cable.
OPERATING INSTRUCTIONS
1. Plug the power cord into a suitable socket.
2. Turn the switch at the rear of the motor housing to select the speed. 0 = OFF, 1 = Low speed, 2 = Medium
speed, 3 = High speed.
3. After use, switch off the appliance and unplug it.
FAN DIRECTION ADJUSTMENT
1. Do not attempt to make any adjustments to the direction of the grille and fan assembly until the fan has
been turned off and unplugged from the socket.
2. To adjust the direction of the fan, hold the grille and gently tilt the fan until the desired position is reached.
3. Plug the fan back into the socket and turn the fan on.
CLEANING
Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains

cable from the socket.
Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down

with a damp cloth and then dry it carefully. Always take out the mains plug first.
Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it

occasionally using a dry brush or vacuum cleaner.
- 40 - FN-110142.1 & FN-110142.2
