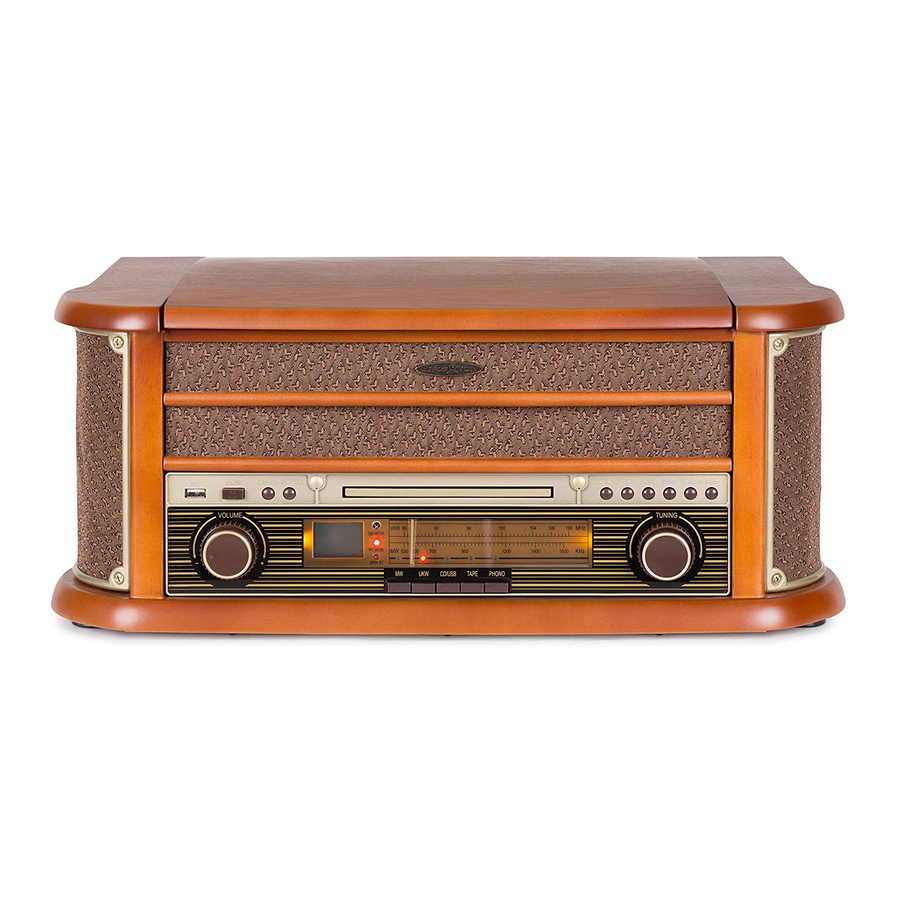

HIF2002 Retro-HiFi Anlage mit Plattenspieler und CD/USB Bedienungsanleitung Antique style Home HI-FI system with CD/USB Operation Manual Sistema hi-fi con giradischi e CD / USB Istruzioni per l'uso Bitte lesen Sie sich die gesamte Anleitung des Gerätes sorgfältig durch, bevor Sie das Gerät benutzen.
DEUTSCH EINFÜHRUNG Sehr geehrte Kundin, Sehr geehrter Kunde, wir danken Ihnen, dass Sie sich für eines unserer Produkte entschieden haben. Bitte lesen Sie die Anleitung, vor dem Gebrauch dieses Geräts sorgfältig durch, um ihre Gebrauchseigenschaften zu optimieren und Unannehmlichkeiten zu beseitigen, die sich aus einer falschen oder nicht bestimmungsgemäßen Verwendung des Geräts ergeben könnten.
Seite 3
Gerät keinesfalls auf Teppiche und in die Nähe von Gardinen auf und bauen Sie es nicht in Bücherregale ein. Sehr geehrter Kunde, Sehr geehrte Kundin, vielen Dank dass Sie sich für die Reflexion HIF2002 Retro-HiFi Anlage entschieden haben. Wir empfehlen Ihnen, diese Bedienungsanleitung sorgfältig zu lesen, bevor Sie das Gerät in Betrieb nehmen, um ihre Gebrauchseigenschaften zu optimieren und Unannehmlichkeiten zu beseitigen, die sich aus einer falschen oder nicht bestimmungsgemäßen Verwendung des Geräts ergeben könnten.
Seite 4
BEDIENUNGSELEMENTE SCHUTZDECKEL PLAY/PAUSE TASTE SKIP UP TASTE SKIP DOWN TASTE PLAY MODE TASTE FUNCTION TASTE VOLUME-REGLER (LAUTSTÄRKE +/-) FERNBEDIENUNGSSENSOR RECORD TASTE CD-FACH OPEN/CLOSE TASTE MW TASTE USB BUCHSE UKW TASTE POWER ON/OFF TASTE TONARM-HEBEL POWER-LED LCD-DISPLAY UKW-STEREO-ANZEIGE RADIO DIAL SCALE TUNING-REGLER TONARMKLEMME SINGLE-ADAPTER...
FERNBEDIENUNG BATTERIE AUSTAUSCHEN Das Batteriefach befindet sich auf der Rückseite der Fernbedienung. Entfernen Sie die Batteriefachklappe, indem Sie auf die Lasche nach rechts drücken und heraus ziehen. Legen Sie eine Batterie der Größe CR-2025 (im Lieferumfang enthalten) in das Batteriefach ein. Beachten Sie dabei die Polaritätsmarkierungen im Batteriefach.
Seite 6
Wiedergabe Schallplatte Drücken Sie die Taste PHONO (31) um in den „Schallplatten“ Modus zu wechseln. Legen Sie eine Schallplatte auf den PLATTENTELLER (36) auf. Falls Sie eine 17cm EP abspielen wollen legen Sie den SINGLE-ADAPTER (23) auf den PLATTENTELELR (36) bevor Sie die Schalplatte auflegen.
Wird während der Wiedergabe oder Pause die Taste SKIP DOWN (4/41) gedrückt, springt das Gerät zum Anfang des aktuellen Titels zurück. Im LCD-DISPLAY (18) wird die entsprechende Titel Nummer angezeigt. Der Play / Pause Modus bleibt bestehen. Wenn Sie im Anschluss an Schritt 2 erneut auf die Taste SKIP DOWN (4/41) drücken, wird der vorherige Titel aufgerufen.
Seite 8
ANMERKUNG: Über den USB-Port kann das System nur Dateien im MP3- und WMA-Format erfassen und einlesen. Wird das Gerät über die USB Buchse an einen MP3-Player angeschlossen, kann es bei einigen MP3-Playern passieren, dass aufgrund von Unterschieden im MP3-Kodierformat die Wiedergabe über die USB Buchse nicht möglich ist.
Seite 9
Drücken die Taste DELETE (47) auf der Fernbedienung während der Wiedergabe oder im Stop- Modus um den ausgewählten Titel zu löschen. USB MEDIUM ENTFERNEN Zum Entfernen eines USB-Speichermediums schalten Sie das Gerät HIF2002 aus. Ziehen Sie jetzt den USB Stick aus der USB BUCHSE (13) heraus.
Seite 10
Anpassung Plattenspieler Es besteht die Möglichkeit, dass bei manchen Platten das Gerät zu früh oder gar nicht stoppt, was leider mit verschiedenen Standards der Plattenindustrie zu tun hat. Sollten Sie solch einen Vorfall haben, möchten wir Ihnen die Möglichkeit geben, die Abschaltung des Plattenspielers gemäß...
TECHNISCHE DATEN Stromversorgung AC 220-240V, 50-60Hz Radio MW: 520-1600KHz / UKW: 87.5-108MHz Plattenteller 33/45/78 RPM CD/CD-R/CD-RW/MP3 Version 2.0 / 200mA. MP3 / WAV Audio Dateien. Kompatibel mit USB Stick bis 32GB. Nicht zum laden von externen USB Geräte gedacht. Kassettenspieler Kompatibel C60 - C90 Max.
Schäden, die durch unsachgemäße Bedienung und/oder unsachgemäßem Gebrauch, durch den Gebrauch von nicht originalen Ersatzteilen, ungeeigneter Verpackung oder aus irgendeinem weiteren Grund verursacht werden, die den “Reflexion“ Produkten nicht zuzuschreiben sind. Auf Zubehörteile, wie z.B. die Fernbedienung etc. gewähren wir eine Gewährleistung von 6 Monaten ab Kaufdatum.
ENGLISH INTRODUCTION Dear Customer, thank you for choosing one of our products and we trust that this choice satisfies your ex- pectations. We invite you before using this device to carefully read this "instruction manual" in order to op- timize its use functional characteristics and eliminate any inconvenience that may arise from a incorrect or non-compliant use of the unit.
Seite 14
Place the appliance in a sufficiently ventilated place Dear Customer, Thank you for purchasing the Reflexion HIF2002 Home HI-FI system. We recommend that you read these operating instructions carefully before start using the device. Product and functional knowledge before installation, helping to avoid breakdowns and damage.
Seite 15
UNIT LOCATION OF CONTROLS DURST COVER CD PLAY/PAUSE BUTTON CD SKIP UP CD DOWN BUTTON PLAY MODE BUTTON FUNCTION BUTTON VOLUME KNOB REMOTE SENSOR RECORD BUTTON CD DOOR CD DOOR OPEN / CLOSE BUT- MW BAND BUTTON USB SOCKET FM BAND BUTTON POWER ON/ OFF CUE LEVER POWER LED INDICATOR...
REMOTE CONTROL BATTERY REPKACEMENT The battery compartment is located on the back of the remote control. 1. Remove the battery compartment door by pressing in on the tab and lifting it off. 2. Insert one (2) CD-2025 size battery (included) into the battery compartment following the polarity markings inside the battery compartment.
Seite 17
Listening to Records - Press the PHONO button (31) to select the TURNTABLE function - Place a record on the turntable (36), over the central spindle. Place the EP adapter (23) over the central spindle when playing 17cm EP records. - Set the Speed Selector (24) to 33/78 or 45 rpm according to the record.
Seite 18
During play or pause mode, if “skip down” button (3) is pressed. it will go back to the beginning of the track, original track number is display and remain the play or pause mode. After step 2, press “skip down” button (3) again will go to the previous track and remain the play or pause mode. If press and hold the “...
REMARKS: The system can detect and read the file under MP3 and WMA format only though the USB port. If connect the system to MP3 player via the USB socket, due to variances in MP3 encoding format, some MP3 player may not be able to play via the usb socket. this is not a maul-function of the system. Connecting the USB upside down or backwards could damage the audio system or the storage media (USB thumb drive).
PHONO ENCODING Insert the USB device. Press the function button to “ phono “. Start playback at phono for the track which you want to record to usb. Press the RECORD button two times to start encoding. The display show REC. After finish of recoding, press the STOP button to stop recording.
WARRANTY CONDITIONS The Company UltraMedia GmbH & Co.Handels KG Friedrich-Penseler-Str. 28 D-21337 Lüneburg Tel.: +49/ (0) 4131/9239-20, Fax:+49/ (0) 4131/9239-55 (Mo.-Do.: 08:00-17:00, Fr.: 08:00-14:00) www.ultramedia.de service@ultramedia.de assumes a warranty of 24 months for this product. Excluded from the warranty are consumable parts, aesthetic parts, products with a damaged war- ranty seal or unreadable / existing serial number, as well as damage caused by improper operati- on and / or improper use, by the use of non-original spare parts, inappropriate packaging or for any other reason which are not attributable to the "reflection"...
ITALIANO INTRODUZIONE Gentile Cliente, grazie per aver scelto uno dei nostri prodotti. Si prega di leggere attentamente questo ma- nuale prima di utilizzare questo dispositivo per ottimizzare le sue prestazioni e per eliminare qualsiasi in- conveniente derivante da un uso scorretto o improprio del dispositivo. AVVERTENZE PRIMA DELL'USO Leggere attentamente le avvertenze in questo manuale, poiché...
Seite 23
Gentile Cliente, grazie per aver scelto il sistema HI-FI Reflexion HIF2002. Si consiglia di leggere attentamente ques- te istruzioni per l'uso prima di utilizzare l‘apparecchio al fine di ottimizzare le sue caratteristiche prestazionali ed eli- minare qualsiasi inconveniente derivante da un uso scorretto o improprio.
Seite 24
POSIZIONE CONTROLLI COPERTURA DI PROTEZIONE TASTO PLAY / PAUSE TASTO SALTO + TASTO SALTO - TASTO MODALITA RIPRODUZIONE TASTO FUNZIONE CONTROLLO VOLUME (VOLUME +/-) SENSORE TELECOMANDO TASTO REGISTRAZIONE PORTADISCO TASTO APERTURA CHIUSURA CD TASTO ONDE MEDIE PRESA USB TASTO FM PULSANTE ACCENSIONE / SPEGNIMENTO BRACCIO ALZA DISCO INDICATORE ACCENSIONE...
SOSTITUZIONE BATTERIA TELECOMANDO 1) Il vano batteria si trova sul retro del telecomando. 2) Rimuovere lo sportello della batteria premendo e tira- ndo la linguetta verso destra. 3) Inserire una batteria CR-2025 (in dotazione) nel vano batteria. Osservare i simboli di polarità nel vano batteria. 4) Reinstallare lo sportello della batteria.
Seite 26
RIPRODUZIONE DEI DISCHI Premere il pulsante PHONO (31) per passare alla modalità "Vinile". Inserire un disco sul PIATTO PORTA DISCHI (36). Se si desidera riprodurre un EP da 17 cm, posizionare l‘ ADATTATORE (23) sul PORTADISCHI (36) prima di met- tere il disco.
Seite 27
Se si preme il tasto SALTO - (4/41) durante la riproduzione o la pausa, l'unità ritorna all'inizio della traccia cor- rente. Il numero del titolo corrispondente verrà visualizzato sul DISPLAY LCD (18). La modalità di riproduzione / pausa rimane. Se si preme SALTO - (4/41) di nuovo dopo il punto 2, verrà richiamata la traccia precedente. La modalità di riproduzione / pausa rimane.
Seite 28
NOTA: Attraverso la porta USB, il sistema può solo acquisire e leggere file in formato MP3 e WMA. Se un dispositivo USB è collegato a un lettore MP3 tramite la presa USB, potrebbe verificarsi che con alcuni lettori MP3 la riproduzione tramite la presa USB non è possibile a causa delle differenze nel formato di codifica MP3. Questo non è...
Seite 29
NOTE SULLA CODIFICA: La velocità di registrazione è 1: 1 e corrisponde al tempo di riproduzione del brano del CD. Il sistema crea una cartella "RECORD" in cui sono memorizzate le tracce codificate. Il formato di registrazione è preimpostato su un bitrate MP3 di 128 kbps e una frequenza di campionamento di 44,1 kHz.
Seite 30
Regolazione Giradischi C'è la possibilità che l‘apparecchio si fermi troppo presto o non si fermi affatto su alcuni dischi. Questo fatto purtroppo ha a che fare con diversi standard di dischi adottati dall'industria discogra- fica e non e da considerare un malfunzionemento dell‘apparecchio. Se dovesse succedere, vor- remmo darte l'opportunità...
Campionamento: 44,1 KHz Dichiarazione di Conformità UE semplificata Con la presente, UltraMedia GmbH & Co. Handels KG dichiara che l'apparecchiatura radio HIF2002 è conforme alla direttiva: 2014/53/EU (RED) 2011/65/EU (RoHS) Il testo completo della Dichiarazione di conformità UE è disponibile al seguente indirizzo Internet:...
/ o di uso improprio dovuto all‘utilizzo di parti di ricambio non originali, imbal- laggio non adeguato, o per qualsiasi altra ragione che non sono attribuibili ai prodotti originali "Reflexion". Sugli accessori come il telecomando, l'alimentatore elettrico, ecc., copriamo una garanzia di 6 mesi dalla data di acquisto.
