Seite 1

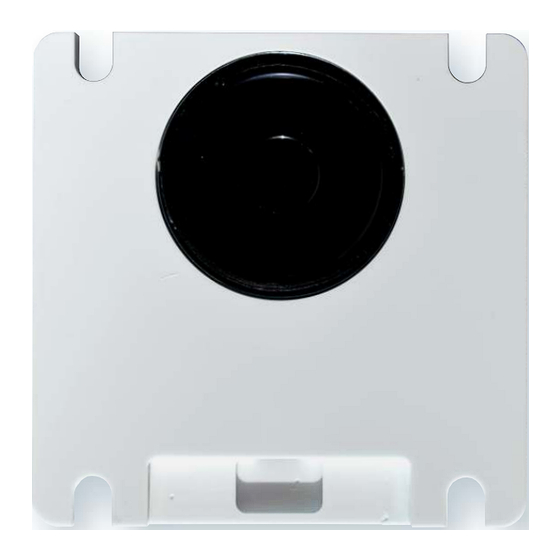

Planungsunterlagen Planning Documentation Telecom Türsprechmodul TAB1 und TAB4 Doorphone Unit TAB1 and TAB 4 AVM FRITZ!Box Türsprechmodul TAB1 / TAB4 Doorphone Unit TAB1 / TAB4 Speedport W724V Telefonanlage / PBX...
Seite 2
Planungsunterlagen Planning Documentation Telecom Türsprechmodul TAB1 und TAB4 Doorphone Unit TAB1 and TAB 4 Übersichts- und Anschlusspläne Overview Scheme and Connection Scheme for DSL Router Fritzbox für die Fritzbox 1 - Türsprechanlage für ein Einfamilienhaus ohne Patchbox einfach 1 - Door intercom for a detached house without patchbox simple 2 - Türsprechanlage für ein Einfamilienhaus ohne Patchbox mit 4 Klingeltastern...
Seite 3
Planungsunterlagen Planning Documentation Telecom Anschluss Fritzbox, Speedport und Telefonanlage Connection to Fritzbox, Speedport and PBX AVM FRITZ!Box RJ11 Kabel RJ11 Cable Port FON1 / 2 DSL-Router Fritzbox RJ11 Kabel RJ11 Cable Speedport W724V TAE Kabel TAE Cable Telefone 1 / 2 Telephone 1 / 2 DSL-Router Speedport...
Seite 4
Türsprechanlage für ein Einfamilienhaus ohne Patchbox einfach Door intercom for a detached house without patchbox simple Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an Telefonen für Klingeltaster 1 programmierbar - Türanruf-Weiterleitung auf Mobiltelefon programmierbar - Türanruf mit Türglocke Features: - Door call and opening by all telephones...
Seite 5
Patchbox einfach Door intercom for a detached house without patchbox simple Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Türsprechmodul TAB1 Doorphone Unit Port FON1 / 2 RJ11 Kabel RJ11 Cable Beleuchtung LED16 weiss Nameplate Illumination...
Seite 6
Türsprechanlage für ein Einfamilienhaus ohne Patchbox mit 4 Klingeltastern Door intercom for a detached house without patchbox with 4 bell buttons Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an jedem Telefon einzeln programmierbar - Türanruf-Weiterleitung auf Mobiltelefone programmierbar - Türanruf mit Türglocke Features:...
Seite 7
Patchbox mit 4 Klingeltastern Door intercom for a detached house without patchbox with 4 bell buttons Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Türsprechmodul TAB1 Doorphone Unit Port FON1 / 2 RJ11 Kabel RJ11 Cable Beleuchtung LED16 weiss Nameplate...
Seite 8
Türsprechanlage für ein Einfamilienhaus ohne Patchbox Door intercom for a detached house without patchbox Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an Telefonen für Klingeltaster 1 programmierbar - Türanruf-Weiterleitung auf Mobiltelefon programmierbar - Türanruf mit Türglocke Features: - Door call and opening by all telephones...
Seite 9
Door intercom for a detached house without patchbox Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB1 Doorphone Unit Port FON1 / 2 RJ11 Kabel RJ11 Cable Beleuchtung LED16 weiss Nameplate Illumination LED16 white...
Seite 10
Türsprechanlage für ein Einfamilienhaus Door intercom for a detached house Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an Telefonen für Klingeltaster 1 programmierbar - Türanruf-Weiterleitung auf Mobiltelefon programmierbar - Türanruf mit Türglocke Features: - Door call and opening by all telephones - Door opening by push switch...
Seite 11
Türsprechanlage für ein Einfamilienhaus Door intercom for a detached house Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB1 Doorphone Unit RJ11 Kabel RJ11 Cable Port FON1 / 2 Beleuchtung LED16 weiss Nameplate Illumination LED16 white...
Seite 12
Türsprechanlage für ein Einfamilienhaus Türöffner-Anschluss über Patchbox Door intercom for a detached house Dooropener connection at patchbox Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an Telefonen für Klingeltaster programmierbar - Türanruf-Weiterleitung auf Mobiltelefon programmierbar - Türanruf mit Türglocke Features: - Door call and opening by all telephones...
Seite 13
Door intercom for a detached house Dooropener connection to the patchbox Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB1 Doorphone Unit RJ11 Kabel RJ11 Cable Port FON1 / 2 Polung! / Polarity! Beleuchtung LED16 weiss Nameplate...
Seite 14
Türsprechanlage für ein Einfamilienhaus Türöffner mit eigenem Stromkreis Door intercom for a detached house Dooropener with separate circuit Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an Telefonen für Klingeltaster 1 programmierbar - Türanruf-Weiterleitung auf Mobiltelefon programmierbar - Türanruf mit Türglocke Features: - Door call and opening by all telephones...
Seite 15
Door intercom for a detached house Dooropener with separate circuit Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB1 Doorphone Unit RJ11 Kabel RJ11 Cable Port FON1 / 2 Polung! / Polarity! Beleuchtung LED16 weiss Nameplate...
Seite 16
Türsprechanlage für ein Einfamilienhaus Türglocke mit eigenem Stromkreis Door intercom for a detached house Doorbell with separate circuit Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an Telefonen für Klingeltaster 1 programmierbar - Türanruf-Weiterleitung auf Mobiltelefon programmierbar - Türanruf mit Türglocke Features: - Door call and opening by all telephones...
Seite 17
Door intercom for a detached house Doorbell with separate circuit Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB1 Doorphone Unit RJ11 Kabel RJ11 Cable Port FON1 / 2 Beleuchtung LED16 weiss Nameplate Illumination LED16 white max.
Seite 18
Türsprechanlage für ein Einfamilienhaus Türglocke mit Batterie Door intercom for a detached house Doorbell with batterie Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter - Türanruf an Telefonen für Klingeltaster 1 programmierbar - Türanruf-Weiterleitung auf Mobiltelefon programmierbar - Türanruf mit Türglocke Features: - Door call and opening by all telephones...
Seite 19
Door intercom for a detached house Doorbell with batterie Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB1 Doorphone Unit RJ11 Kabel RJ11 Cable Port FON1 / 2 Beleuchtung LED16 weiss Nameplate Illumination LED16 white...
Seite 20
Türsprechanlage für 2 Parteien an gemeinsamen DSL-Router Door intercom with 2 parties on same DSL router Telecom Funktionen: - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter 1 bis 2 - Türanruf an Telefonen für Klingeltaster 1 bis 2 programmierbar - Türanruf-Weiterleitung auf Mobiltelefone 1 bis 2 programmierbar - Türanruf mit Türglocke in Wohnungen 1 und 2 Features:...
Seite 21
Türsprechanlage für 2 Parteien an gemeinsamen DSL-Router Door intercom with 2 parties on same DSL router Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB4 Doorphone Unit RJ11 Kabel RJ11 Cable Port FON1 / 2 Beleuchtung LED16 weiss Nameplate...
Seite 22
Türsprechanlage für 4 Parteien an gemeinsamen DSL-Router Door intercom with 4 parties on same DSL router Telecom Funktionen: Türöffner 4 DECT Telefon Wohnung 4 Door Opener 4 DECT Telephone Apartment 4 - Türsprechen und Türöffnen über alle Telefone - Türöffnen über Schalter 1 bis 4 - Türanruf an Telefonen für Klingeltaster 1 bis 4 programmierbar - Türanruf-Weiterleitung auf Mobiltelefone 1 bis 4 programmierbar - Türanruf mit Türglocke in Wohnungen 1 und 2...
Seite 23
Türsprechanlage für 4 Parteien an gemeinsamen DSL-Router Door intercom with 4 parties on same DSL router Telecom Türstation Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Polung! / Polarity! Türsprechmodul TAB4 Doorphone Unit RJ11 Kabel RJ11 Cable Port FON1 / 2 Beleuchtung LED16 weiss Nameplate...
Seite 24
2 Türsprechanlagen an einem DSL-Router separate Türsprechanlagen 2 Door intercom on same DSL router separate door intercoms Telecom Funktionen: - Türsprechen und Türöffnen an der jeweiligen Tür über alle Telefone - Türöffnen Tür 1 über Schalter 1 und Tür 2 über Schalter 2 - Türanruf an allen Telefonen für beide Türstationen Klingeltaster 1 bis 4 programmierbar - Türanruf-Weiterleitung von beiden Türstationen auf Mobiltelefone 1 bis 4 programmierbar - Türanruf mit Türglocke für Türstationen 1 und 2 getrennt...
Seite 25
2 Türsprechanlagen an einem DSL-Router separate Türsprechanlagen 2 Door intercom on same DSL router separate door intercoms Telecom Türstation 1 Außen Türstation 2 Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Door Intercom Outside Polung! / Polarity! Polung! / Polarity! Türsprechmodul Türsprechmodul TAB4...
Seite 26
2 Türsprechanlagen an einem DSL-Router gemeinsame Türglocke und Türöffner 2 Door intercom on same DSL router common doorbell and door opener Telecom Funktionen: - Türsprechen an der jeweiligen Tür über alle Telefone - Türöffnen über alle Telefone und über beide Türöffner Schalter - Türanruf an allen Telefonen für beide Türstationen Klingeltaster 1 bis 4 programmierbar - Türanruf-Weiterleitung von beiden Türstationen auf Mobiltelefone 1 bis 4 programmierbar - Türanruf mit Türglocke für Klingeltaster 1 von beiden Türstationen...
Seite 27
2 Türsprechanlagen an einem DSL-Router gemeinsame Türglocke und Türöffner 2 Door intercom on same DSL router common door bell and door opener Telecom Türstation 1 Außen Türstation 2 Außen Innen Elektroinstallation Door Intercom Outside Inside Electrical Installation Door Intercom Outside Polung! / Polarity! Polung!
Seite 28
Fehlersuche Troubleshooting Telecom Türsprechmodul TAB1 und TAB4 Doorphone Unit TAB1 and TAB 4 Troubleshooting Patchbox Fehlersuche Patchbox LED ON leuchtet nicht LED ON does not light up Supply voltage is not connected or has short circuit Versorgungsspannung ist nicht angeschlossen oder hat Kurzschluss...
