Item Description
Notes
Device bracket This half of the bracket connects to the device
using the included machine screws.
Surface bracket This half of the bracket connects to the
mounting surface using either the included
thread-forming screws or other hardware
appropriate for the mounting surface (not
included).
Depth
This insert is used to adjust the depth of the
adjustment
device when securing the two halves of the
insert
brackets together. After the depth is set, and
the brackets are secured with the hex screws,
the inserts should be removed. The insert is not
assembled in the kit.
Hex screws
These screws secure the two halves of the
bracket together after the depth is set. A
(3 mm) hex screwdriver or bit is required to
tighten these screws.

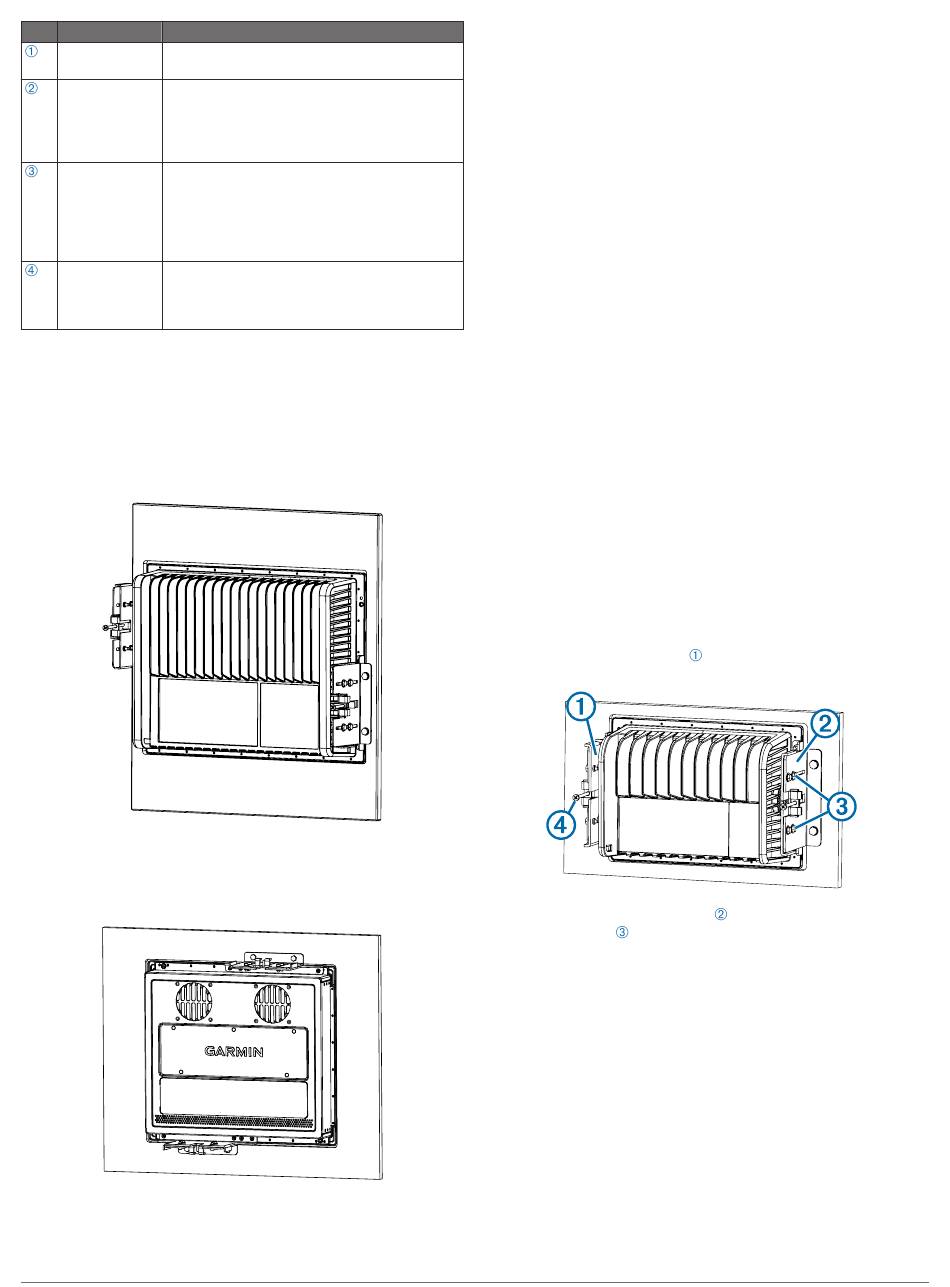

When determining how to install the brackets on your device,
observe these considerations.
• The brackets must be installed on the sides of an eight-inch
GPSMAP 8000 device.
• For a twelve or fifteen-inch GPSMAP 8000 series device, the
brackets must be installed on opposite corners of the device
to distribute the weight appropriately. The brackets must be
installed on the sides of a twelve or fifteen-inch device.
• For a GMM device, the brackets must be installed on
opposite corners of the device to distribute the weight
appropriately. The brackets must be installed on the top and
bottom of a GMM device.
Preparing the Mounting Surface
To obtain a clean, flat look when the device is mounted, you
must precisely cut and prepare the mounting surface.
1
Trim the template and make sure it fits in the location where
you want to mount the device.
2
Remove the protective liner from the back of the template
and adhere it to the location where you want to mount the
device.
3
Using the drill bit indicated on the template, drill one or more
of the holes inside the corners of the solid line on the
template to prepare the mounting surface for cutting.
4
Using an appropriate cutting tool, cut the mounting surface
along the inside of the solid line indicated on the template.
Make sure that you leave the full width of the solid line on the
template intact when cutting, so you can enlarge and refine
the cutout as necessary.
5
Remove the template from the mounting surface.
7
/
in.
64
6
Select an option:
• If the mounting surface is thicker than
use a router or other appropriate tool to reduce the
thickness of the rear surface around the cutout.
• If the mounting surface is thinner than
add a surface reinforcement around the device cutout.
7
Place the device into the cutout to test the fit, and refine both
the cutout and the rear surface as needed.
Installing the Flat-Mount Brackets and Mounting
Device
Before you can install the brackets and mount the device, you
must prepare the surface so it is the appropriate thickness for
the device and sturdy enough to support the device.
The screws provided to connect the brackets to the mounting
surface may not be appropriate for all surface types or
thicknesses. If the screws are too long for your surface, or
inappropriate for the surface type, you must purchase
appropriate screws.
1
Place the device brackets
with the included screws.
2
Connect the surface brackets
the hex screws
The two halves of the brackets must remain loosely
connected so that you can adjust the depth of the device in
relation to the front of the mounting surface.
3
Place the device in the cutout and mark the location of the
pilot holes needed to secure the brackets to the surface.
4
Remove the device from the cutout, and on the back of the
mounting surface, drill the pilot holes using a drill bit
appropriate for the surface and screw size.
NOTE: Make sure you do not drill through the front of the
surface.
5
Install the rubber gasket around the front bezel of the device.
The pieces of the rubber gasket have adhesive on the back.
Make sure you remove the protective liner before installing
them on the device.
6
Apply marine sealant to the front bezel of the device so that it
will fill and properly seal the area between the mounting
1
/
8
1
/
8
on the device, and secure them
to the device brackets with
, but do not tighten them.
in. (3.2 mm),
in. (3.2 mm),
3
