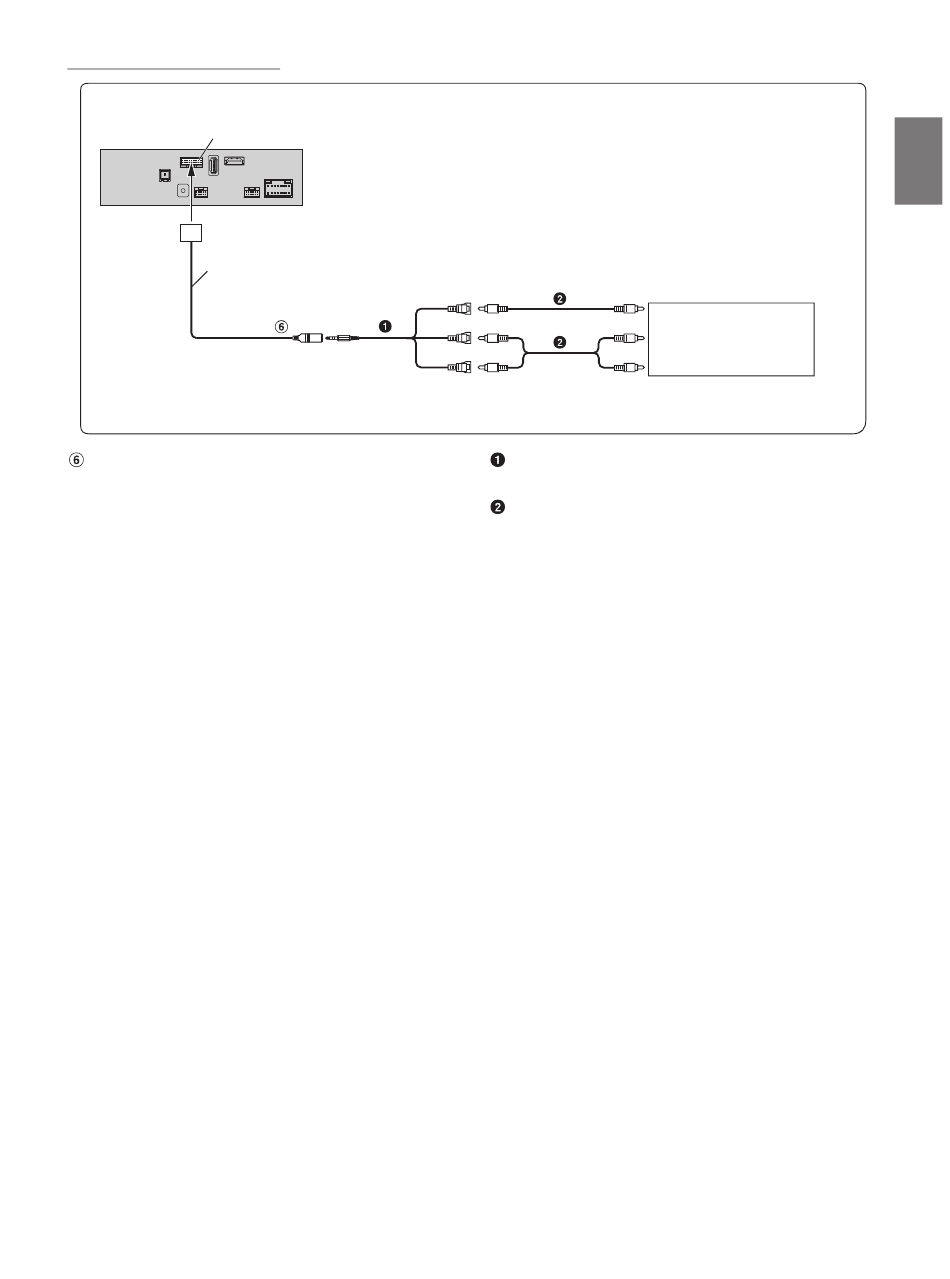

Connection of an External Device

CAN I/F connector
CAN I/F cable
AUX INPUT
AUX Input Connector
• You can change the name of an external device. For details, refer to "Setting the Auxiliary (AUX) Name" in the OWNER'S MANUAL (CD-ROM).
• For details on using an AV/RCA interface cable (4-pole mini AV plug to 3-RCA), see "Usable AV/RCA Interface Cable (4-pole mini AV plug to 3-RCA)"
(page 10).
(Yellow)
(Red)
(White)
AV/RCA Interface Cable (4-pole mini AV plug to 3-RCA)
(sold separately)
RCA Extension Cable (sold separately)
To Video Output terminal
External Device
(sold separately)
To Audio Output terminal
15
-EN
