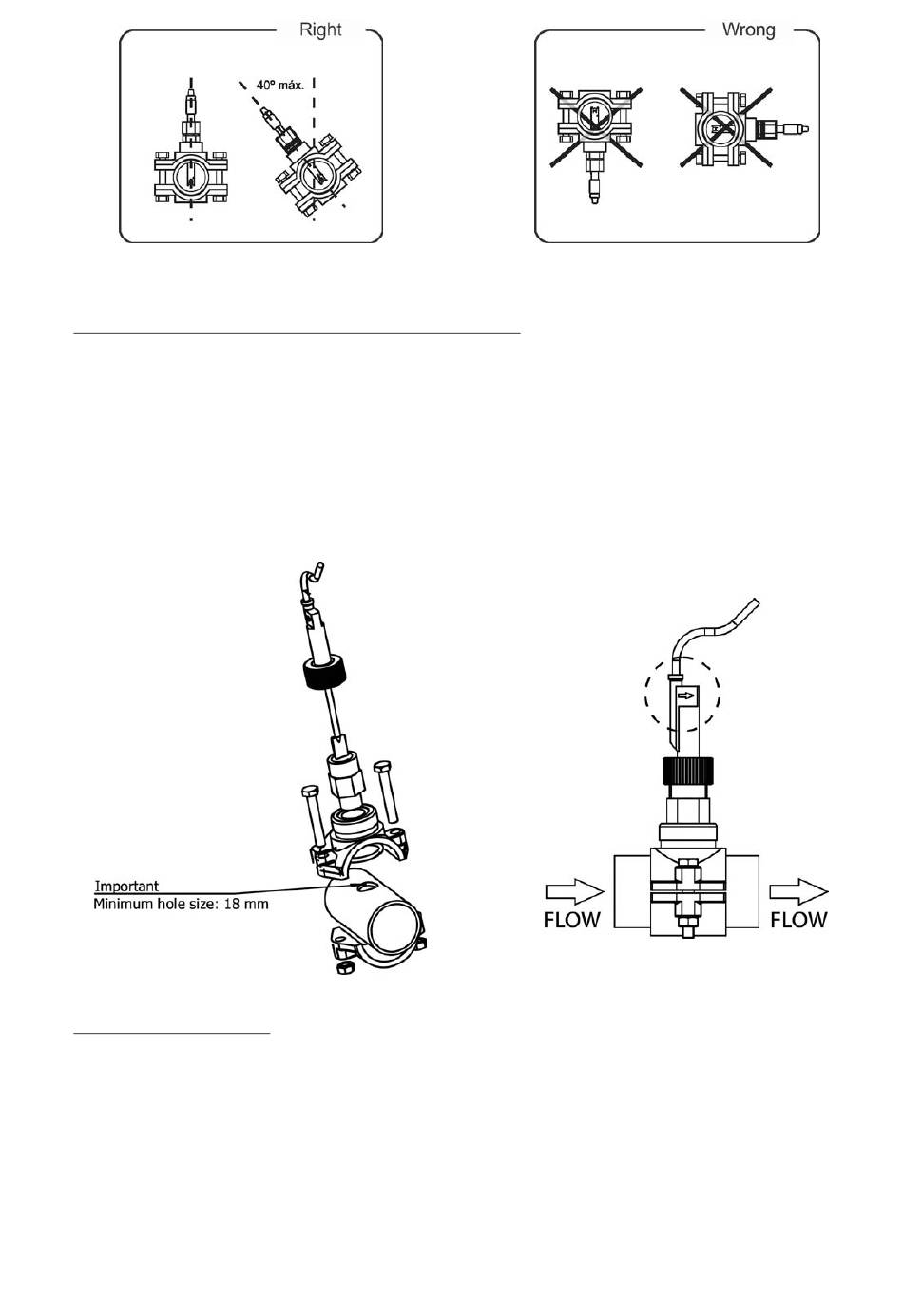

4.5. Installation of the external flow detector (optional, not supplied with the unit).
1. Install the saddle supplied in a section of the pipe at the entrance to the electrolysis cell. It should always be installed in a horizontal
position relative to the ground (see Fig. 9-1).
2. Install the flow detector (flow switch) vertically in the saddle (Fig. 9-1).
3. There is an arrow on the head of the flow detector. Make sure that this arrow is parallel to the pipe shaft and pointing in the direction
that the water flows (Fig. 9-2).
4. Do not install the flow detector near magnetic objects. They could affect the operation of the magnetic device it contains and reduce
its reliability.
4.6. Installation of the control terminal
In the EASY SALT systems it is possible to establish a remote control of the electrolysis salt system installed in the swimming pool by means of
a control wall terminal installation. The interconnection between the power supply and the control terminal can be executed through a 6-
conductor signal cable connected to the respective connectors in power and visualization cards. The cable length will be determined by the
customer's requirements but must be always lower than 40 meters. The terminal is 10,5 Vac auto-supplied by the communication bus, so it
doesn't need any additional supply.
The wall terminal doesn't require any special maintenance procedure, with the exception of these maintenance recommendations:
Use a slightly moisten cloth to clean it.
o
Don't use aggressive cleaning products (bleach, sprays, solvents, alcohol, etc.)
o
The control terminal is designed to be installed on a rigid wall. Its IP-65 degree allows the outdoor installation. Nevertheless, it's recommended
not to expose the terminal to the solar rays. In order to install the remote control, follow the instructions shown below:
Fig. 9-1
Fig. 8
7
Fig. 9-2
