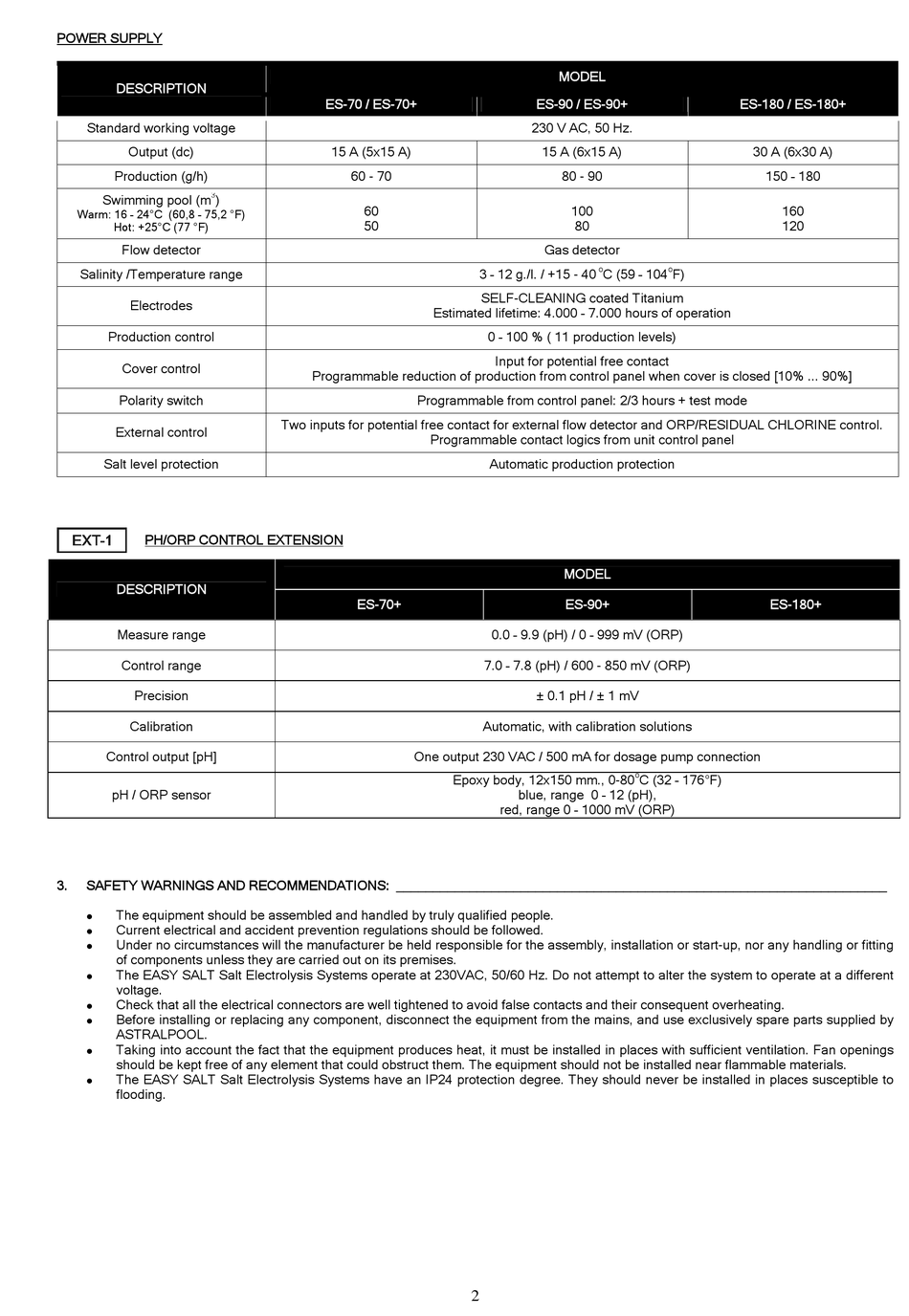

POWER SUPPLY
DESCRIPTION
Standard working voltage
Output (dc)
Production (g/h)
3
Swimming pool (m )
Warm: 16 – 24°C (60,8 – 75,2 °F)
Hot: +25°C (77 °F)
Flow detector
Salinity /Temperature range
Electrodes
Production control
Cover control
Polarity switch
External control
Salt level protection
PH/ORP CONTROL EXTENSION
DESCRIPTION
Measure range
Control range
Precision
Calibration
Control output [pH]
pH / ORP sensor
3. SAFETY WARNINGS AND RECOMMENDATIONS: ___________________________________________________________________
The equipment should be assembled and handled by truly qualified people.

Current electrical and accident prevention regulations should be followed.

Under no circumstances will the manufacturer be held responsible for the assembly, installation or start-up, nor any handling or fitting

of components unless they are carried out on its premises.
The EASY SALT Salt Electrolysis Systems operate at 230VAC, 50/60 Hz. Do not attempt to alter the system to operate at a different

voltage.
Check that all the electrical connectors are well tightened to avoid false contacts and their consequent overheating.

Before installing or replacing any component, disconnect the equipment from the mains, and use exclusively spare parts supplied by

ASTRALPOOL.
Taking into account the fact that the equipment produces heat, it must be installed in places with sufficient ventilation. Fan openings

should be kept free of any element that could obstruct them. The equipment should not be installed near flammable materials.
The EASY SALT Salt Electrolysis Systems have an IP24 protection degree. They should never be installed in places susceptible to

flooding.
ES-70 / ES-70+
15 A (5x15 A)
60 - 70
60
50
Estimated lifetime: 4.000 – 7.000 hours of operation
Programmable reduction of production from control panel when cover is closed [10% ... 90%]
Programmable from control panel: 2/3 hours + test mode
Two inputs for potential free contact for external flow detector and ORP/RESIDUAL CHLORINE control.
Programmable contact logics from unit control panel
ES-70+
One output 230 VAC / 500 mA for dosage pump connection
Epoxy body, 12x150 mm., 0-80
MODEL
ES-90 / ES-90+
230 V AC, 50 Hz.
15 A (6x15 A)
80 - 90
100
80
Gas detector
o
3 – 12 g./l. / +15 - 40 C (59 – 104
SELF-CLEANING coated Titanium
0 – 100 % ( 11 production levels)
Input for potential free contact
Automatic production protection
MODEL
ES-90+
0.0 – 9.9 (pH) / 0 – 999 mV (ORP)
7.0 – 7.8 (pH) / 600 - 850 mV (ORP)
± 0.1 pH / ± 1 mV
Automatic, with calibration solutions
o
C (32 – 176°F)
blue, range 0 – 12 (pH),
red, range 0 – 1000 mV (ORP)
2
ES-180 / ES-180+
30 A (6x30 A)
150 – 180
160
120
o
F)
ES-180+
