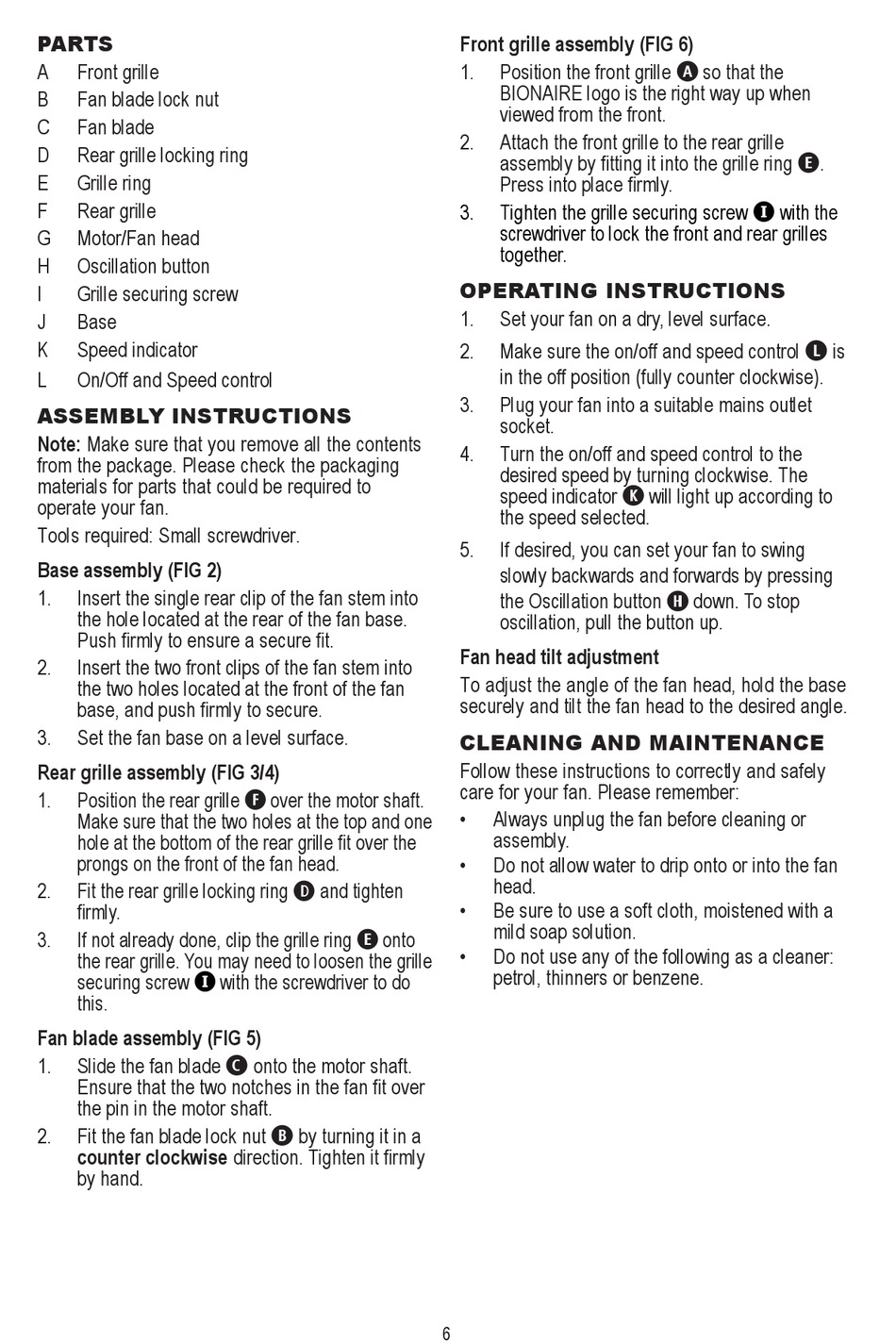

PARTS
A Front grille
B Fan blade lock nut
C Fan blade
D Rear grille locking ring
E Grille ring
F Rear grille
G Motor/Fan head
H Oscillation button
I Grille securing screw
J Base
K Speed indicator
L On/Off and Speed control
ASSEMBLY INSTRUCTIONS
Note: Make sure that you remove all the contents
from the package. Please check the packaging
materials for parts that could be required to
operate your fan.
Tools required: Small screwdriver.
Base assembly (FIG 2)
1. Insert the single rear clip of the fan stem into
the hole located at the rear of the fan base.
Push firmly to ensure a secure fit.
2. Insert the two front clips of the fan stem into
the two holes located at the front of the fan
base, and push firmly to secure.
3. Set the fan base on a level surface.
Rear grille assembly (FIG 3/4)
1. Position the rear grille
Make sure that the two holes at the top and one
hole at the bottom of the rear grille fit over the
prongs on the front of the fan head.
2. Fit the rear grille locking ring
firmly.
3. If not already done, clip the grille ring
the rear grille. You may need to loosen the grille
securing screw
I
this.
Fan blade assembly (FIG 5)
1. Slide the fan blade
Ensure that the two notches in the fan fit over
the pin in the motor shaft.
2. Fit the fan blade lock nut
counter clockwise direction. Tighten it firmly
by hand.
over the motor shaft.
F
and tighten
D
onto
E
with the screwdriver to do
onto the motor shaft.
C
by turning it in a
B
Front grille assembly (FIG 6)
1. Position the front grille
BIONAIRE logo is the right way up when
viewed from the front.
2. Attach the front grille to the rear grille
assembly by fitting it into the grille ring
Press into place firmly.
3. Tighten the grille securing screw
screwdriver to lock the front and rear grilles
together.
OPERATING INSTRUCTIONS
1. Set your fan on a dry, level surface.
2. Make sure the on/off and speed control
in the off position (fully counter clockwise).
3. Plug your fan into a suitable mains outlet
socket.
4. Turn the on/off and speed control to the
desired speed by turning clockwise. The
speed indicator
the speed selected.
5. If desired, you can set your fan to swing
slowly backwards and forwards by pressing
the Oscillation button
oscillation, pull the button up.
Fan head tilt adjustment
To adjust the angle of the fan head, hold the base
securely and tilt the fan head to the desired angle.

CLEANING AND MAINTENANCE

Follow these instructions to correctly and safely
care for your fan. Please remember:
• Always unplug the fan before cleaning or
assembly.
• Do not allow water to drip onto or into the fan
head.
• Be sure to use a soft cloth, moistened with a
mild soap solution.
• Do not use any of the following as a cleaner:
petrol, thinners or benzene.
