5. Alarm time

The Alarm Time is the period of time that the alarm stays on for and can be set to
between 10 seconds (default) and 12 minutes.
Alarm Time

6. Delay time

The delay time can be set to any value between 0 seconds (default) and 3 minutes.
• For an exit delay: (10 sec - 3 mins)
The delay time starts when the on / off push button is depressed (on position).
Alarms are only enabled after the delay time.
• For an entry delay: (0 sec - 3 mins)
When an alarm is detected, it will trigger the relay(s) after the delay time is over.
To prevent this from happening, press the on/off push button before the delay
time elapses.
7. Relays
The relays have a powered (12-15V DC) common (COM) by factory default. That is,
connectors J5, J9, J13 have links between pin 1 and 2. The holder position for the
linking bars, for an unpowered COM, is between pin 2 and 3.
The N/O (normally open) contact is used for the siren and strobe. When an alarm
occurs the relay is energized and the contacts close.
Access to relay 3 contacts, used for external alarm inputs and N/C (normally closed)
relay contacts, are by screw type connectors internal to the enclosure.
62
Gallagher 3E3115 Alarm System User Manual

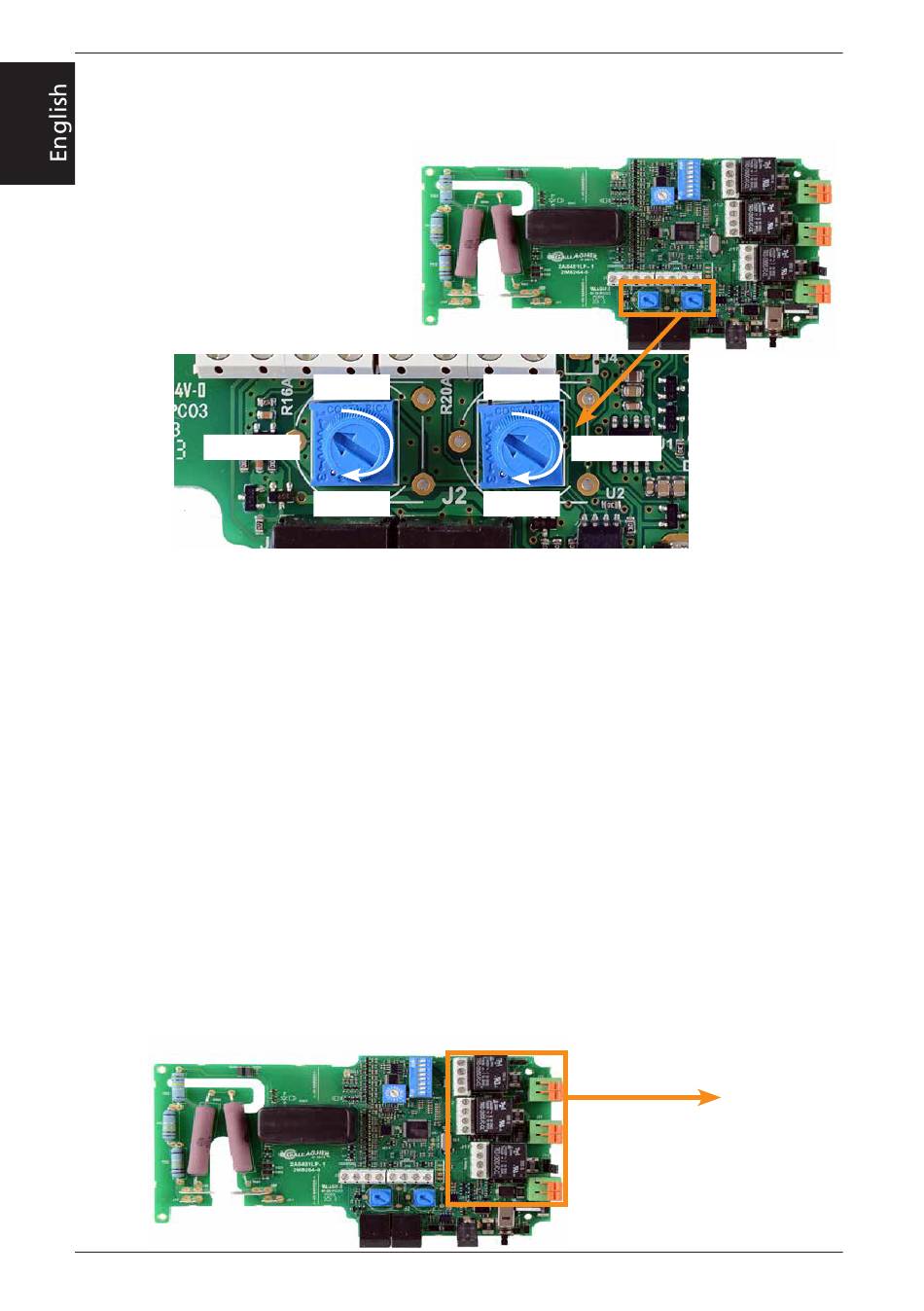

10 sec
12min
0 sec
Delay Time
3 min
See following page for diagram
