Gallagher 3E3115 Alarm System User Manual
External inputs activate
External inputs such as a motion sensor or reed switch can be connected. An alarm
condition will toggle only Relay 3 (default) OR Relay 1, Relay 2 and Relay 3 depending
on the switch position.
External inputs activation mode
External inputs can be configured either as switch input where the alarm operates
when the inputs are pulled to earth
three inputs and earth (ground) that is J14 or J15 pin 2 and 4) or balanced inputs
(standard security type that require 4k7 terminating resistors).

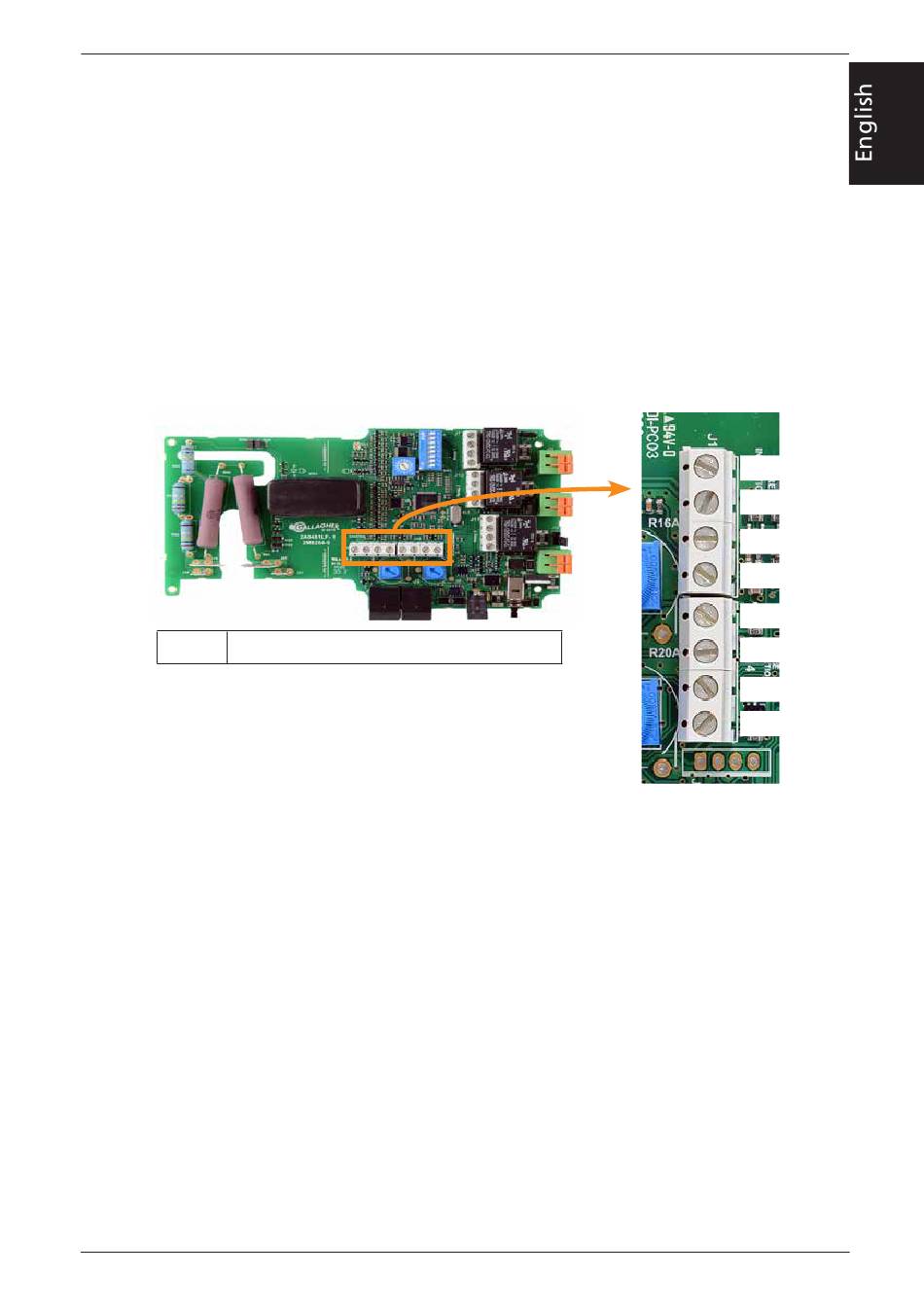

3. External Inputs
+15V This connector is rated 2A maximum.
Up to three inputs such as motion sensors or reed switches
can be connected. These can be configured as balanced
(security) or switch inputs. See Functional Settings (p. 8)
for further details.
The external inputs have an exit delay (10 sec to 3 mins) and entry delay
(0 sec to 3 mins) to allow time to exit a secure room after arming the alarm and to
disarm the alarm when entering a secure room.
Pressing the On/Off button arms/disarms the alarm.
4. ON / OFF
Depress the red button to turn the alarm system on.
Press again to turn the alarm system OFF.
While in an OFF position, battery charging continues.
