2. Functional settings

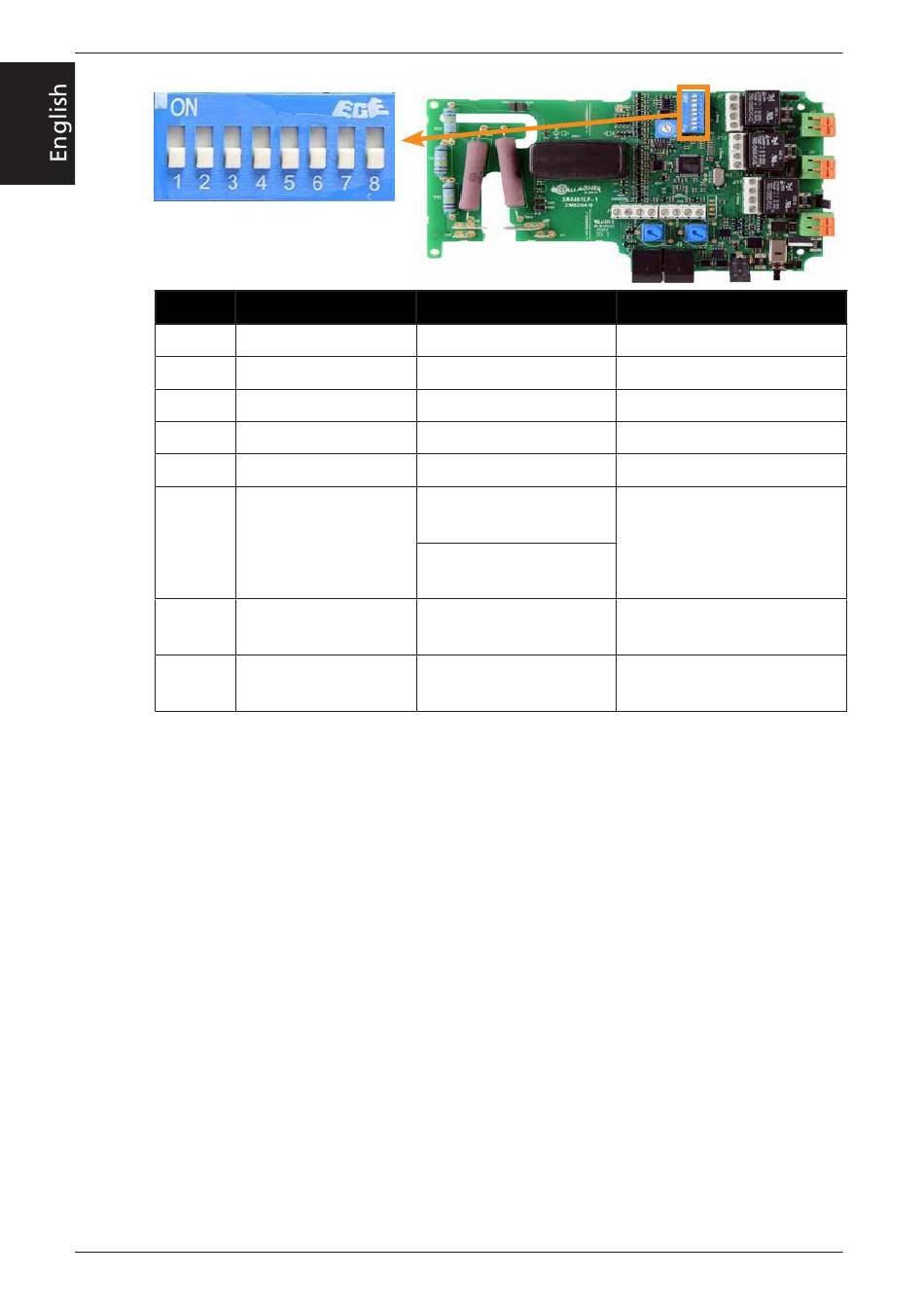

Switch Setting
1 Relay 1
2 Relay 2
3 Relay 3
4 Fence alarms
5 Unused
6

Pulse monitoring

7 External inputs
activate
8 External inputs
activation mode
Setting relay 1,2,3
In a standard installation, relay 1 will be connected to a strobe light and relay 2 will
be connected to a siren. Relay 3 is exclusively used for alarms associated with the
external inputs.
The relays can be optionally timed or latched. When timed is selected, the ALARM
TIME determines how long the relay is turned on for. Refer to Alarm Time/ Delay
Time (p. 10) for further details. When latched is selected, the relays stay on until the
reset button is pressed.
Fence alarms
In both modes of installation (i-Series or standard), the alarm system can be set
to toggle only its relays under local settings (default) or have all connected alarm
systems act upon the alarms when set to global.
Pulse monitoring
This sets the alarm delay time when operating in i-Series mode. The alarm can be set
to trigger from either one pulse missed (default) or after 15 seconds .
In standard mode the alarm can be set to trigger after 7 seconds (default) or after 15
seconds. Refer to Alarm Time/ Delay Time (p. 10) for further details.
When in standard mode the delay time can be set by the delay time trimpot.
60
Gallagher 3E3115 Alarm System User Manual
OFF (Default)
Latched
Timed
Latched
Local
One pulse missed
(i-Series mode)
7 seconds
(Standard mode)
Relay 3 only
Switch input
ON
Timed
Latched
Timed
Global
15 seconds (i-Series and
Standard mode
All relays
Security (balanced) inputs
