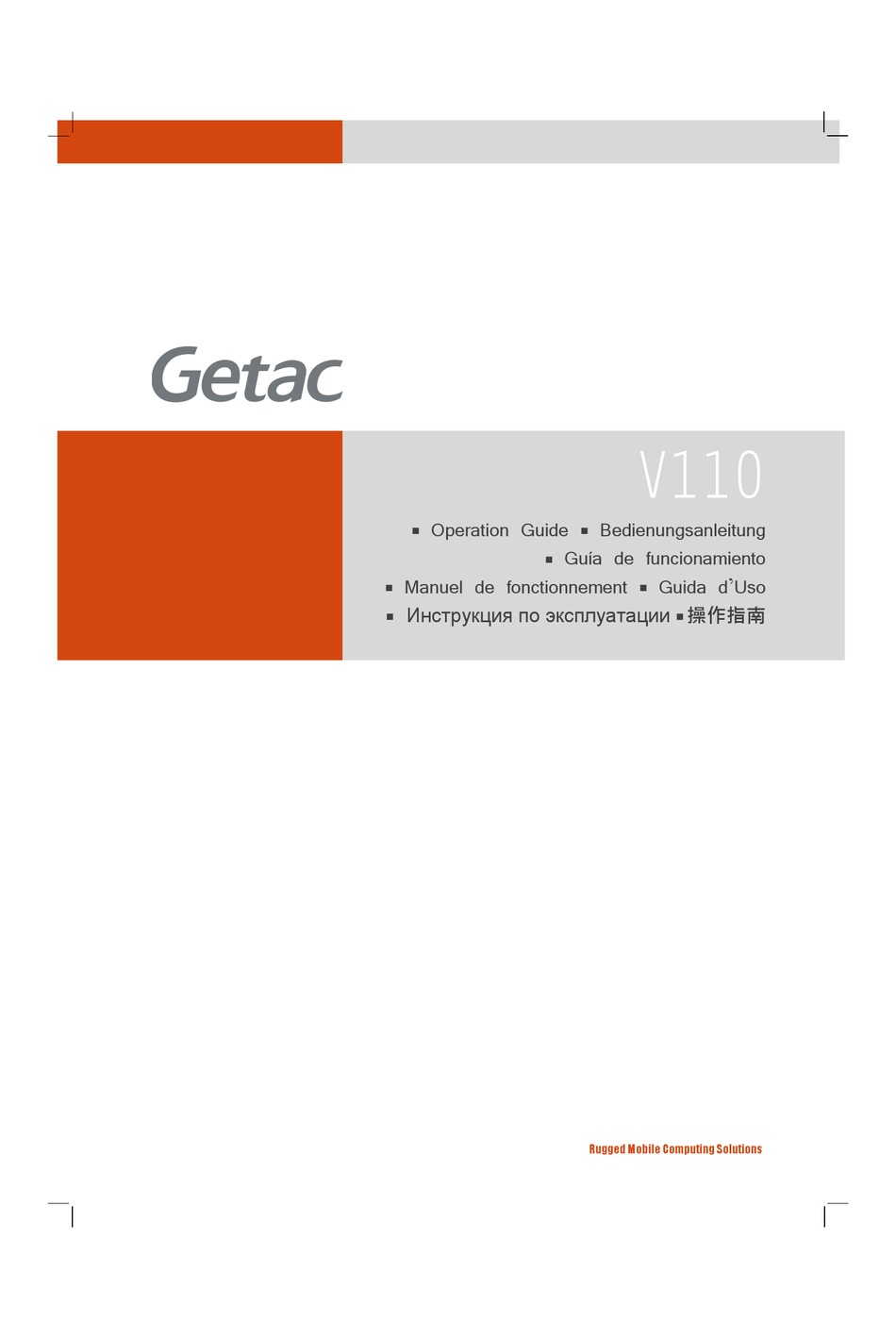

V110 Operation Guide Bedienungsanleitung Guí a de funcionamiento Manuel de fonctionnement Guida d’Uso 操作指南 Инструкция по эксплуатации Rugged Mobile Computing Solutions...
Seite 2
English ........1 Deutsch ........6 Español ......... 11 Français ....... 16 Italiano ......... 21 Pусский ....... 26 繁體中文......31 简体中文......36 TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective owners. NOTE The information in this manual is subject to change without notice. Depending on the model you purchased, the appearance of your computer may not be exactly the same as those shown in this guide.
4. When closing the cover, push the tab downward until the cover clicks into place and then slide Unpacking the latch toward the locked position ( CAUTION: Make sure the latch is V110 notebook computer correctly locked, not revealing the AC adapter AC power cord underneath red part.
Seite 4

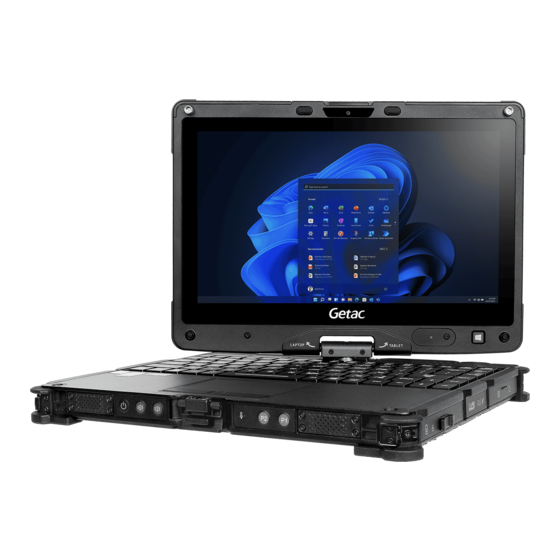

Kensington Lock Power Connector Serial Port USB 3.0 Port RJ-45 Connector Camera Lens (Optional) Touchscreen Microphone Light Sensor Start (for Windows 8) or OSDC (for Windows 7) RFID Antenna Indicators (Optional) Keyboard Touchpad Strap Holder Strap Holder Speaker Speaker Power Button Function Lock Volume Up Camera/Shutter...
Seite 5
Operating in Tablet Mode Operating in an environment with metallic dust is not allowed. 1. Open the top cover so that it is almost Place the computer on a flat and steady surface. perpendicular with the keyboard of the Do not stand the computer on its side or store computer.
Gently wipe the display with a soft, lint- It is recommended that you charge the battery free cloth. pack with the computer’s power off. Dust or grease on the touchpad can affect its To maintain the battery pack’s operating sensitivity.
To run System Recovery: 1. Connect the AC adapter. 2. Turn on the computer. During system startup when the Getac logo screen appears, press Ctrl + Alt + F2 keys for four seconds. 3. In the screen that appears, select Recovery to start the recovery process.
Sie die Verriegelung anschließend in die Verriegelt Position ( Auspacken des Lieferkartons ACHTUNG: Achten Sie darauf, dass die Verriegelung fest geschlossen ist, so V110 Notebook-Computer dass der untere rote Teil nicht zu Netzteil Anschlussleitung erkennen ist. 5. Fahren Sie mit dem anderen Akku fort.
Computer leuchtet gelb, um den Ladevorgang anzuzeigen. Wenn der Akku voll aufgeladen ist, die Akkuladeanzeige leuchtet grün. Der Computer von außen ACHTUNG: Sie müssen die Schutzabdeckungen, um Zugriff auf die Anschlüsse oder Kompo- nenten im Inneren zu bekommen. Wenn Sie nicht auf einen Anschluss oder eine Komponente zugreifen, stellen Sie sicher, dass Sie die Abdeckung vollständig schließen, um die Wasser-, Staub- und Feuerintegrität Ihres Computers zu garantieren.
Bedienung im Tablett-Modus Platzieren Sie den Computer auf einem flachen, stabilen Untergrund. Stellen Sie den Computer nicht seitlich auf; lagern Sie ihn nicht in 1. Ö ffnen Sie die obere Abdeckung, bis sie beinahe umgedrehter Position. Starke Erschütterungen lotrecht zur Computertastatur steht. durch Herunterfallen oder Stöße können den 2.
Richtlinien zum Reinigen Umgebungstemperatur führt zu einem Anstieg der Akkutemperatur. Ver- Reinigen Sie den Computer nie, wenn er meiden Sie das Aufladen des Akkus in einem eingeschaltet ist. geschlossenen Fahrzeug und bei heißem Wetter. Zudem startet der Ladevorgang nicht, wenn der ...
Abweichung besteht, verwenden Ihrem Windows Desktop oder der Treiber-CD. Sie zur erneuten Kalibrierung des Sie können das aktuelle Handbuch und Treiber Touchscreen-Bildschirms das Kalibrie- durch Aufruf des Getac Weblinks unter rungsprogramm. http://www.getac.com Support Download. System-Wiederherstellung Windows-8-Modelle Falls Schwierigkeiten mit Ihrem Windows-8- Computer auftreten sollten, können Sie eine der...
Seite 13
Desembalaje su sitio. A continuación, deslice el seguro hacia la posición de bloqueo ( V110 computadora portátil PRECAUCIÓN: Asegúrese de que el seguro Adaptador CA Cable de alimentación CA esté correctamente colocado y que no se vea la parte roja que hay debajo del mismo.
Seite 14
progreso. Cuando la baterí a esté completamente cargada, el indicador de carga de la baterí a se ilumina en verde. Echando un vistazo al equipo PRECAUCIÓN: Necesita abrir las tapas protectoras para acceder a los conectores o los disposi- tivos que se encuentran en el interior. Cuando no vaya a acceder a un conector o dispositivo, asegúrese de que la tapa está...
Funcionamiento en el modo extremos durante largos perí odos puede resultar en un deterioro del producto y una reducción tablet de su vida útil. No se permite utilizar el producto en un entorno 1. Abra la tapa superior de forma que quede casi con polvo metálico.
Seite 16
Directrices de limpieza culo cerrado y en condiciones de mucho calor. Además, la carga no comenzará si la baterí a Nunca limpie el equipo mientras está encendido. no se encuentra dentro del rango de temperaturas permitido. Use un paño suave humedecido con agua o un detergente no alcalino para limpiar el exterior ...
Para ejecutar la recuperación del sistema: 1. Conecte el adaptador de CA. 2. Encienda el equipo. Durante el inicio del sistema, cuando aparece la pantalla con el logotipo de Getac, pulse los botones Ctrl + Alt + F2 durante cuatro segundos.
4. Pour fermer le cache, appuyez sur la languette jusqu'à ce que le cache se mette en place, puis Déballage faites glisser le loquet sur la position verrouillée V110 ordinateur portable ATTENTION : Assurez-vous que le loquet Adaptateur CA Cordon secteur CA est correctement verrouillé...
Seite 19
dinateur s'illumine en ambre pour indiquer que la charge est en cours. Quand la batterie est entièrement chargée, l'indicateur de charge de batterie s'illumine en vert. Coup d'oil sur l'ordinateur ATTENTION : Vous devez d’abord ouvrir la couvercle protectrice pour accéder aux connecteurs ou périphériques à...
Fonctionnement en mode tablette L'utilisation dans un environnement avec de la poussière métallique est interdit. 1. Ouvrez le couvercle supérieur de façon à ce Placez l’ordinateur sur une surface plane et qu’il soit presque perpendiculaire au clavier de stable.
Consignes de nettoyage pas si le bloc batterie n'est pas dans la plage de température ambiante permise. Ne nettoyez jamais l’ordinateur en marche. Il est conseillé de ne pas charger le bloc batterie Utilisez un linge doux humidifié avec de l'eau plus d'une fois par jour.
Pour effectuer la récupération du système : 1. Branchez l'adaptateur CA. 2. Mettez l'ordinateur en marche. Pendant le démarrage du système lorsque le logo de Getac apparaî t sur l'écran, appuyez sur les touches Ctrl + Alt + F2 pendant quatre secondes.
( Disimballaggio AVVERTENZA: Assicurarsi che il fermo sia correttamente bloccato e che non si vedano parti V110 computer notebook rosse. Adattatore CA Cavo elettrico 5. Procedere con l'altra batteria. Collegamento dell’alimentazione CA e...
Seite 24
Un'occhiata al computer AVVERTENZA: Per raggiungere i connettori o i dispositivi all’interno è necessario aprire i coperchi di protezione. Nel caso non fosse necessario accedere a un connettore o dispositivo, assicurarsi di chiudere completamente il coperchio per proteggere il computer da polvere, acqua e calore. (Inserire il meccanismo di blocco se presente.) Kensington Lock Connettore alimentazione...
Seite 25
Uso in modalità tablet Non è consentito l'utilizzo in ambienti dove è presente polvere metallica. 1. Aprire il coperchio superiore in modo che sia Collocare il computer su una superficie piatta quasi perpendicolare alla tastiera del computer. e stabile. Non poggiare il computer su di un lato o riporlo sottosopra.
Seite 26
Usare un panno morbido inumidito d'acqua o un Si consiglia di non ricaricare la batteria più di detergente non alcalino per pulirne l'esterno. una volta al giorno. Pulire delicatamente il monitor con un panno Si consiglia di caricare la batteria quando il soffice e senza pelucchi.
1. Connettere il trasformatore CA al computer. 2. Accendere il computer. Durante l'avvio del sistema, quando è visualizzata la schermata del logo Getac, premere i tasti Ctrl + Alt + F2 per quattro secondi. 3. Nella schermata che è visualizzata, selezio- nare Recovery per avviare il processo di ripristino.
Перед началом работы 4. Чтобы закрыть крышку, придавите выступ крышки вниз до защелкивания крышки, а Распаковка затем сдвиньте защелку крышки в запертое положение ( V110 ноутбук ОСТОРОЖНО: Убедитесь, что защелка Адаптер переменного Шнур сетевого питания правильно заблокирована, и ее нижняя тока...
Seite 29
горит желтым светом. Во время зарядки компьютер рекомендуется выключать. После полной зарядки аккумулятора индикатор заряда батареи гаснет. Обзор компьютера ОСТОРОЖНО: Для доступа к внутренним разъемам и устройствам требуется снимать защитные крышки. Когда вы не работаете с внутренними разъемами и устройствами, обязательно...
Seite 30
Режим графического Применять в условиях присутствия в воз- духе металлической пыли категорически планшета запрещается. Размещайте компьютер на ровной устой- 1. Откройте верхнюю крышку, поставив ее чивой поверхности. Не ставьте компьютер почти перпендикулярно клавиатуре на бок и не храните его в перевернутом компьютера.
Seite 31
Указания по чистке слишком частого повышения его внутрен- ней температуры. Не выполняйте чистку при включенном Заряжайте аккумулятор при температуре компьютере. 10 °C ~ 30 °C (50 °F ~ 86 °F). Более Для чистки внешних частей компьютера высокая окружающая температура может протрите...
стилуса может привести к царапинам или повреждению дисплея и, таким образом, к 2. При запуске системы в момент появления ошибкам в работе. на экране логотипа Getac нажмите одновре- менно клавиши Ctrl + Alt + F2 на четыре Для удаления загрязнений с дисплея...
