100 AVENTICS | Bus Coupler AES/Valve Driver AV, Ethernet POWERLINK | R412018143–BAL–001–AF
Presettings on the Bus Coupler
2. Supply the bus coupler with power (see section "4.1.1 Electrical connections" on page 77).

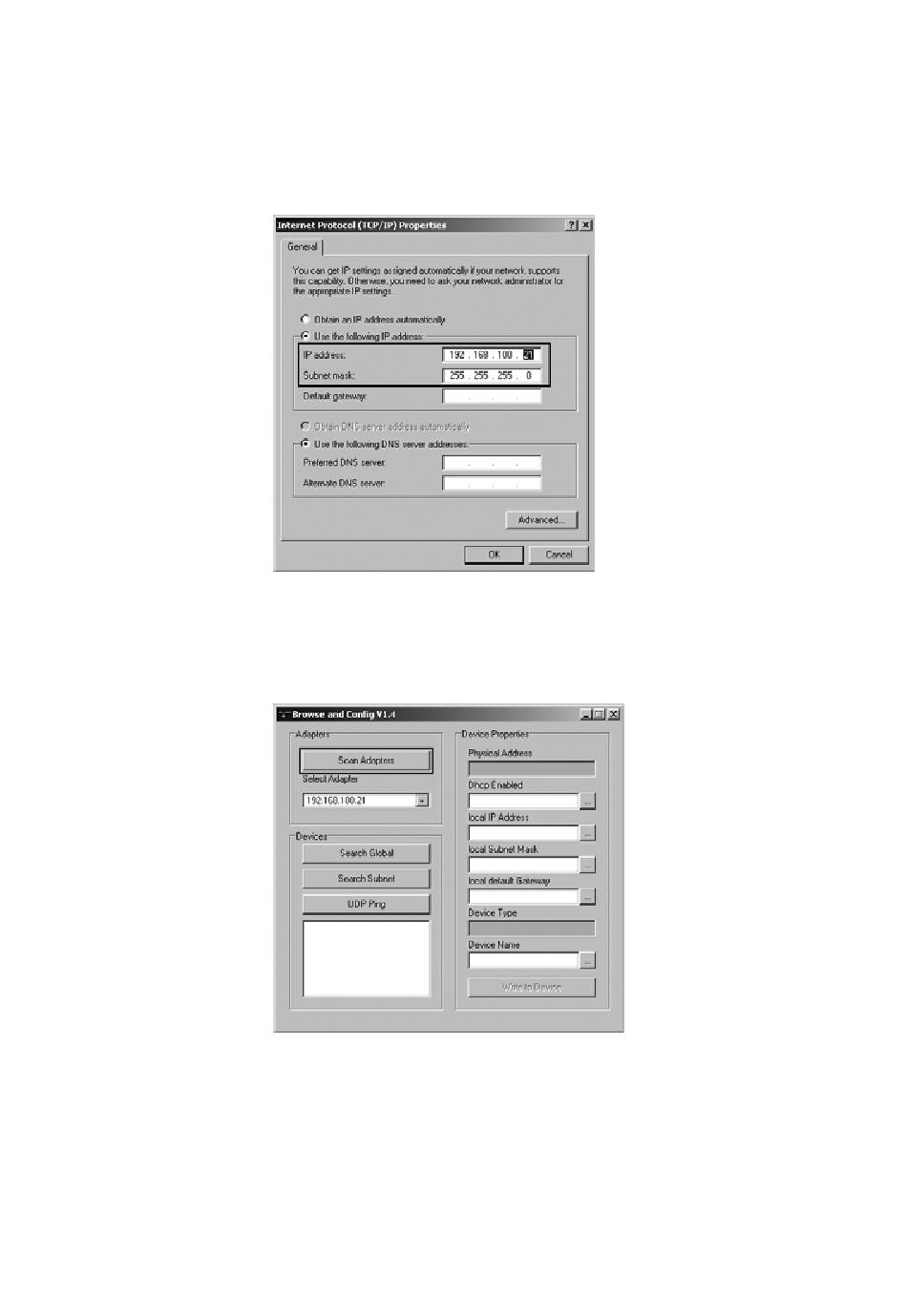

3. On your computer, assign a network address from the following subnet (xxx = actual device
address, address on delivery = 3):
– IP address: 192.168.100.xxx
– Subnet mask: 255.255.255.0
4. Start the "Browse and Config" tool.
5. Click on "Scan Adapters".
