MAINTENANCE AND USE MANUAL
The equipment described in this manual is the doublemix mixer, designed to carry out automatic
dosing and mixing of the fluid silicone material used to duplicate models.
1
2
3
1.
Safety fuse
2.
Main switch ON/OFF
3.
Male "CATALYST" grey rapid coupling
4. Female "BASE" red rapid coupling
5.
Main power cable
6.
Pump activation pushbutton
7.
Rotating tap
8.
Safety plug
DOUBLEMIX
EN

CHAPTER 3: DESCRIPTION OF THE MACHINE

GENERAL DESCRIPTION OF THE MACHINE

9

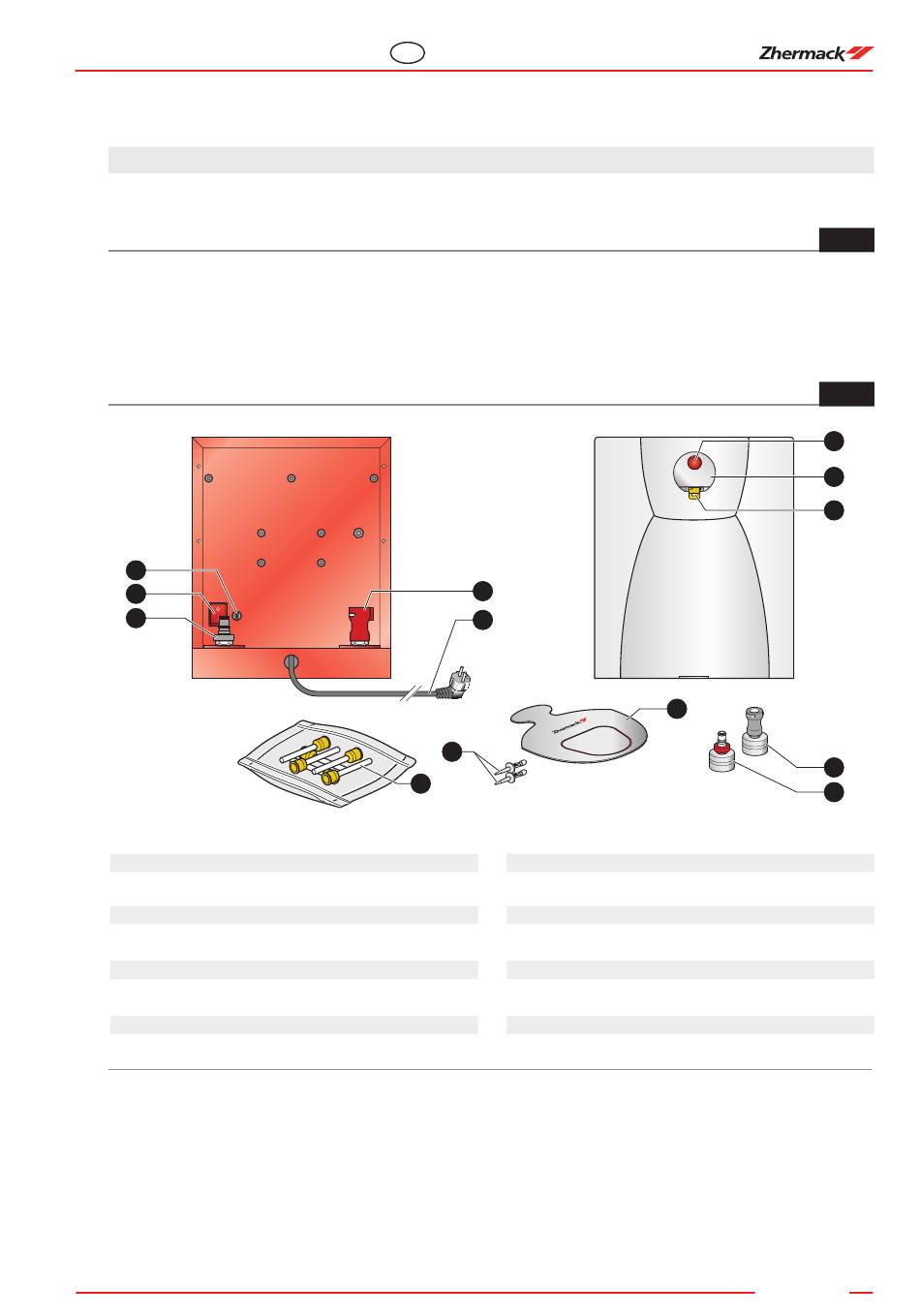

TABLE OF THE COMPONENTS
4
5
10
9.
Pack of mixing tips
10. Bayonet-type venting filters to perforate
bottles and cans
11. Item support top
12. Adapter for 1 kg bottle with female
"CATALYST" rapid coupling
13. Adapter for 1 kg bottle with male "BASE"
rapid coupling
3.1
3.2
6
7
DOUBlemix
8
11
12
13
